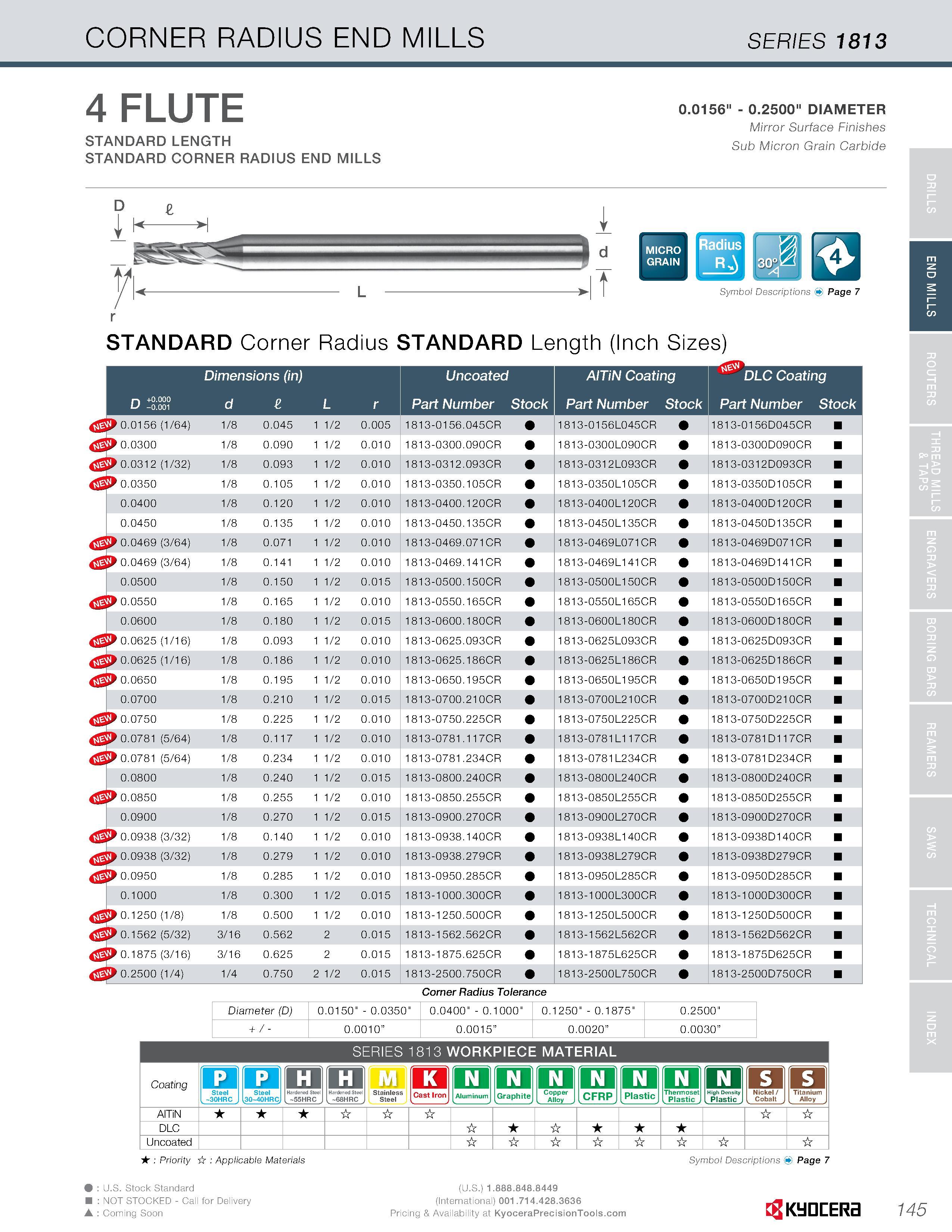

CORNER RADIUS END MILLS SERIES 1813 4 FLUTE STANDARD LENGTH STANDARD CORNER RADIUS END MILLS 0.0156" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I d T Radius J Symbol Descriptions Page 7 STANDARD Corner Radius STANDARD Length (Inch Sizes) I >1 +0.000 -0.001 Dimensions (in) d e L r Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock ig 0.0156 (1/64) 1/8 0.045 1 1/2 0.005 1813-0156.045CR 1813-0156L045CR 1813-01 56 D045CR ig 0.0300 1/8 0.090 1 1/2 0.010 1813-0300.090CR 1 813-0300L090CR 1813-0300D090CR g 0.0312 (1/32) 1/8 0.093 1 1/2 0.010 1813-0312.093CR 1813-0312L093CR 181 3-0312D093CR ig 0.0350 1/8 0.105 1 1/2 0.010 1813-0350.105CR 1813-0350L105CR 1813-0350D105CR 0.0400 1/8 0.120 1 1/2 0.010 1813-0400.120CR 1813-0400L120CR 1813-0400D120CR 0.0450 1/8 0.135 1 1/2 0.010 1813-0450.135CR 1813-0450L135CR 1813-0450D135CR ig 0.0469 (3/64) 1/8 0.071 1 1/2 0.010 1813-0469.071CR 1813-0469L071CR 1813-0469D071CR ig 0.0469 (3/64) 1/8 0.141 1 1/2 0.010 1813-0469.141CR 1 813-0469L1 41 CR 1813-0469D141CR 0.0500 1/8 0.150 1 1/2 0.015 1813-0500.150CR 1813-0500L150CR 1813-0500D150CR J5 0.0550 1/8 0.165 1 1/2 0.010 1813-0550.165CR 1813-0550L165CR 1813-0550D165CR 0.0600 1/8 0.180 1 1/2 0.015 1813-0600.180CR 1813-0600L180CR 1813-0600D180CR ig 0.0625 (1/16) 1/8 0.093 1 1/2 0.010 1813-0625.093CR 1 813-0625L093CR 1813-0625D093CR ig 0.0625 (1/16) 1/8 0.186 1 1/2 0.010 1813-0625.186CR 1813-0625L186CR 1813-0625D186CR g 0.0650 1/8 0.195 1 1/2 0.010 1813-0650.195CR 1813-0650L195CR 1813-0650D195CR 0.0700 1/8 0.210 1 1/2 0.015 1813-0700.210CR 1813-0700L210CR 1813-0700D210CR ig 0.0750 1/8 0.225 1 1/2 0.010 1813-0750.225CR 1813-0750 L225CR 1813-0750D225CR g 0.0781 (5/64) 1/8 0.117 1 1/2 0.010 1813-0781.117CR 1 813-0781 L117CR 181 3-0781 D11 7CR g 0.0781 (5/64) 1/8 0.234 1 1/2 0.010 1813-0781.234CR 1813-0781L234CR 181 3-0781 D234CR 0.0800 1/8 0.240 1 1/2 0.015 1813-0800.240CR 1 813-0800L240CR 1813-0800D240CR Ig 0.0850 1/8 0.255 1 1/2 0.010 1813-0850.255CR 1 813-0850L255CR 1813-0850D255CR 0.0900 1/8 0.270 1 1/2 0.015 1813-0900.270CR 1813-0900L270CR 1813-0900D270CR g 0.0938 (3/32) 1/8 0.140 1 1/2 0.010 1813-0938.140CR 1813-0938L140CR 1813-0938D140CR g 0.0938 (3/32) 1/8 0.279 1 1/2 0.010 1813-0938.279CR 1813-0938L279CR 1813-0938D279CR Ig 0.0950 1/8 0.285 1 1/2 0.010 1813-0950.285CR 1 813-0950L285CR 1813-0950D285CR 0.1000 1/8 0.300 1 1/2 0.015 1813-1000.300CR 1 813-1 000L300CR 1813-1000D300CR J 0.1250 (1/8) 1/8 0.500 1 1/2 0.010 1813-1250.500CR 1813-1250L500CR 1813-12 50 D500CR ig 0.1562 (5/32) 3/16 0.562 2 0.015 1813-1562.562CR 1 813-1 562L562CR 1813-1562D562CR ig 0.1875 (3/16) 3/16 0.625 2 0.015 1813-1875.625CR 1813-1 875 L625CR 1813-1875D625CR Ig 0.2500 (1/4) 1/4 0.750 2 1/2 0.015 1813-2500.750CR 1 813-2500L750CR 1813-2500D750CR Corner Radius Tolerance Diameter (D) 0.0150" - 0.0350" 0.0400" - 0.1000" 0.1250" - 0.1875" 0.2500" + /- 0.0010” 0.0015” 0.0020” 0.0030” SERIES 1813 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 145 END MILLS
