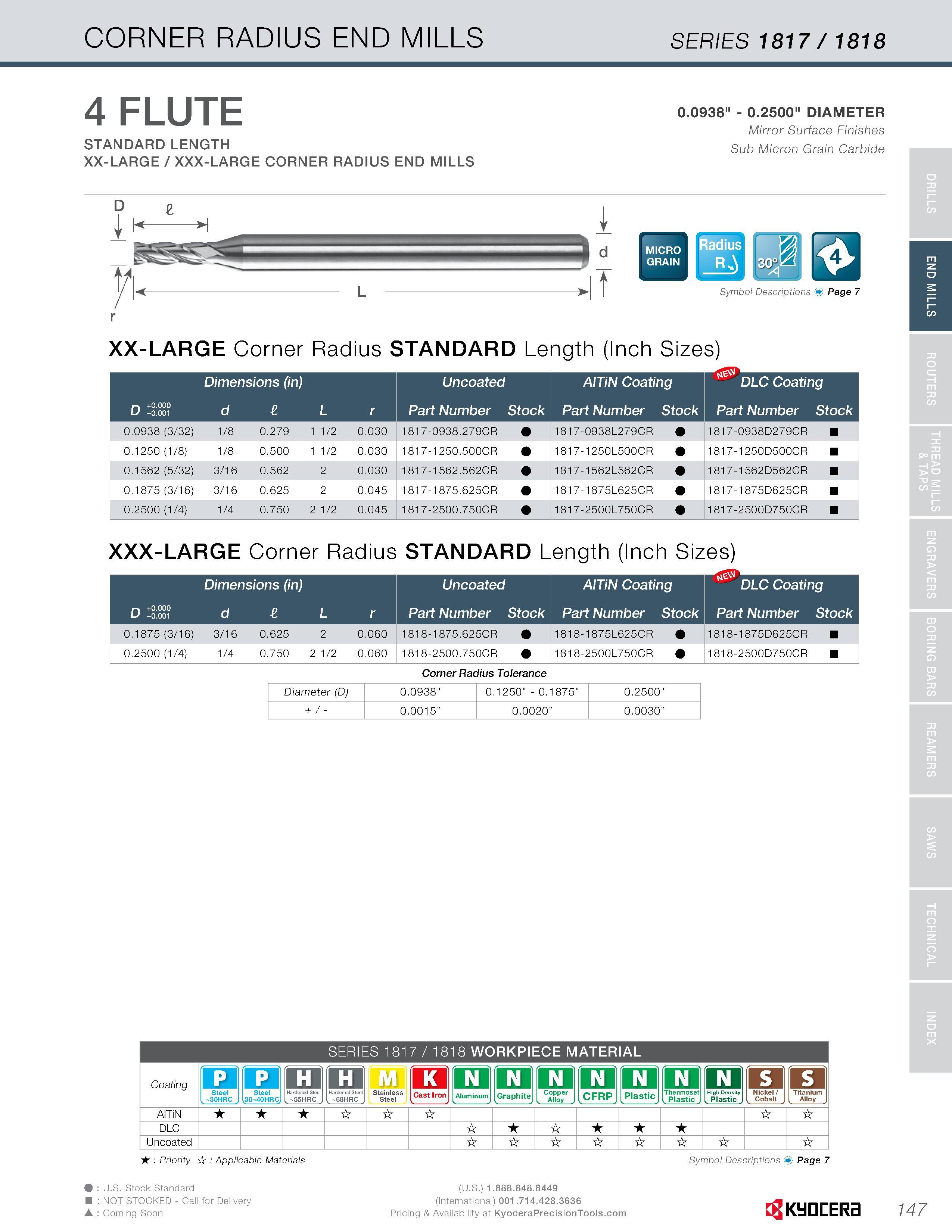

CORNER RADIUS END MILLS SERIES 1817/1818 4 FLUTE STANDARD LENGTH XX-LARGE / XXX-LARGE CORNER RADIUS END MILLS 0.0938" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I d It Radius J Symbol Descriptions Page 7 XX-LARGE Corner Radius STANDARD Length (Inch Sizes) ni +0.000 U -0.001 Dimensions (in) d e L r Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0938 (3/32) 1/8 0.279 1 1/2 0.030 181 7-0938.279CR 1817-0938L279CR 1 81 7-0938D279CR 0.1250 (1/8) 1/8 0.500 1 1/2 0.030 1817-1250.500CR 181 7-1250L500CR 1817-1250D500CR 0.1562 (5/32) 3/16 0.562 2 0.030 1817-1562.562CR 181 7-1562L562CR 1817-1562D562CR 0.1875 (3/16) 3/16 0.625 2 0.045 1817-1875.625CR 181 7-1875L625CR 1 81 7-1 875D625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.045 181 7-2500.750CR 1817-2500L750CR 1 81 7-2500D750CR XXX-LARGE Corner Radius STANDARD Length (Inch Sizes) Dimensions (in) Uncoated AITiN Coating DLC Coating ni +0.000 Ls -0.001 d L r Part Number Stock Part Number Stock Part Number Stock 0.1875 (3/16) 3/16 0.625 2 0.060 1818-1875.625CR 181 8-1875L625CR 1 81 8-1 875D625CR 0.2500 (1/4) 1/4 0.750 2 1/2 0.060 181 8-2500.750CR 1818-2500L750CR 1 81 8-2500D750CR Corner Radius Tolerance Diameter (D) 0.0938" 0.1250" - 0.1875" 0.2500" + / - 0.0015” 0.0020” 0.0030” SERIES 1817/1818 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminuin Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 147 END MILLS
