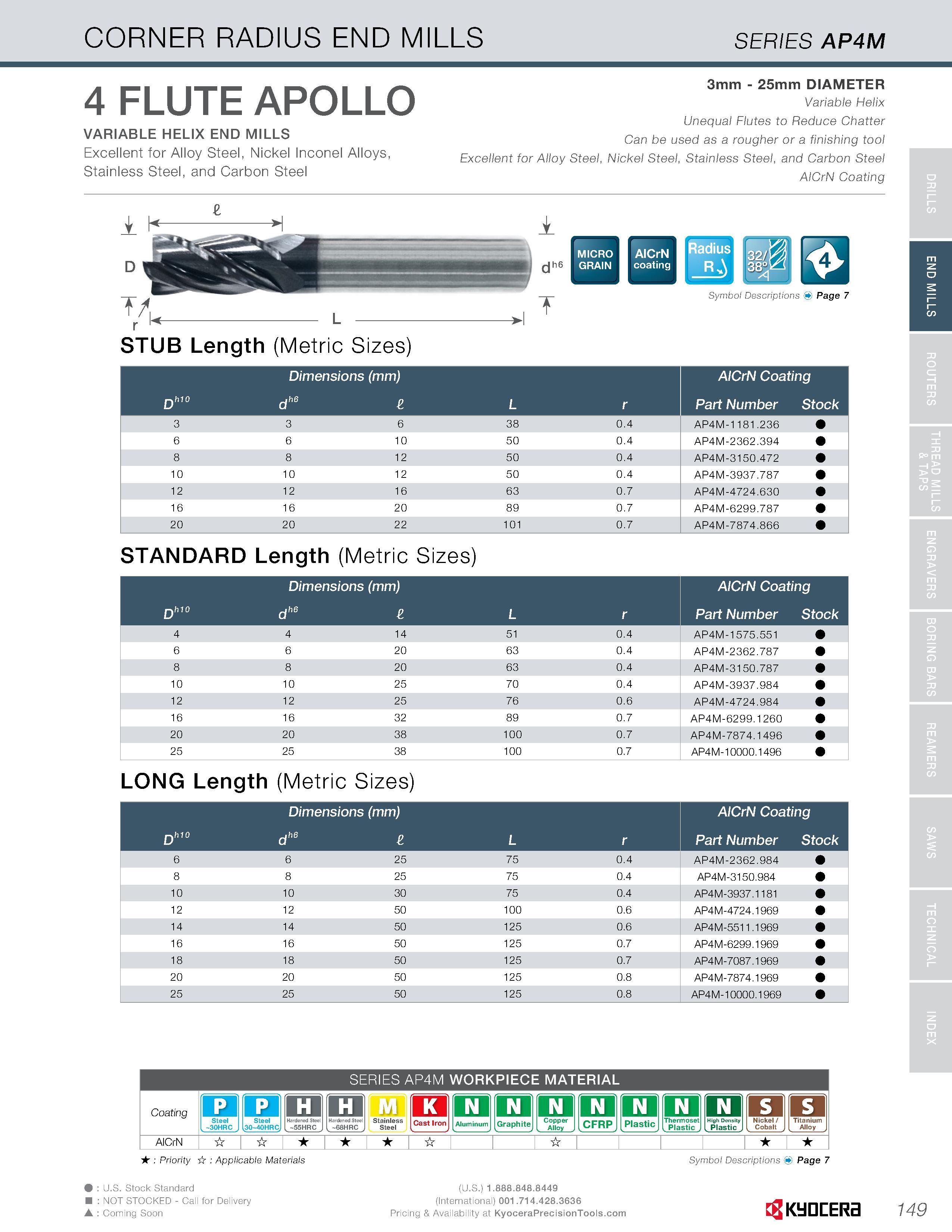

CORNER RADIUS END MILLS SERIES AP4M 4 FLUTE APOLLO 3mm - 25mm DIAMETER Variable Helix Unequal Flutes to Reduce Chatter VARIABLE HELIX END MILLS Qan be usgc/ as a rougher or a finishing tool Excellent for Alloy Steel, Nickel Inconel Alloys, Excellent for Alloy Steel, Nickel Steel, Stainless Steel, and Carbon Steel Stainless Steel, and Carbon Steel AlCrN Coating Dh1° Dimensions (mm) dhG I L r AlCrN Coating Part Number Stock 3 3 6 38 0.4 AP4M-1181.236 6 6 10 50 0.4 AP4M-2362.394 8 8 12 50 0.4 AP4M-3150.472 10 10 12 50 0.4 AP4M-3937.787 12 12 16 63 0.7 AP4M-4724.630 16 16 20 89 0.7 AP4M-6299.787 20 20 22 101 0.7 AP4M-7874.866 STANDARD Length (Metric Sizes) qMO Dimensions (mm) dhG I L r AlCrN Coating Part Number Stock 4 4 14 51 0.4 AP4M-1575.551 6 6 20 63 0.4 AP4M-2362.787 8 8 20 63 0.4 AP4M-3150.787 10 10 25 70 0.4 AP4M-3937.984 12 12 25 76 0.6 AP4M-4724.984 16 16 32 89 0.7 AP4M-6299.1 260 20 20 38 100 0.7 AP4M-7874.1 496 25 25 38 100 0.7 AP4M-10000.1496 LONG Length (Metric Sizes) Dimensions (mm) AlCrN Coating QhW dhG I L r Part Number Stock 6 6 25 75 0.4 AP4M-2362.984 8 8 25 75 0.4 AP4M-3150.984 10 10 30 75 0.4 AP4M-3937.1181 12 12 50 100 0.6 AP4M-4724.1969 14 14 50 125 0.6 AP4M-5511.1969 16 16 50 125 0.7 AP4 M -6299.1969 18 18 50 125 0.7 AP4 M -7087.1969 20 20 50 125 0.8 AP4M-7874.1969 25 25 50 125 0.8 AP4M-10000.1969 SERIES AP4M WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic s s j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AlCrN : Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 149 END MILLS
