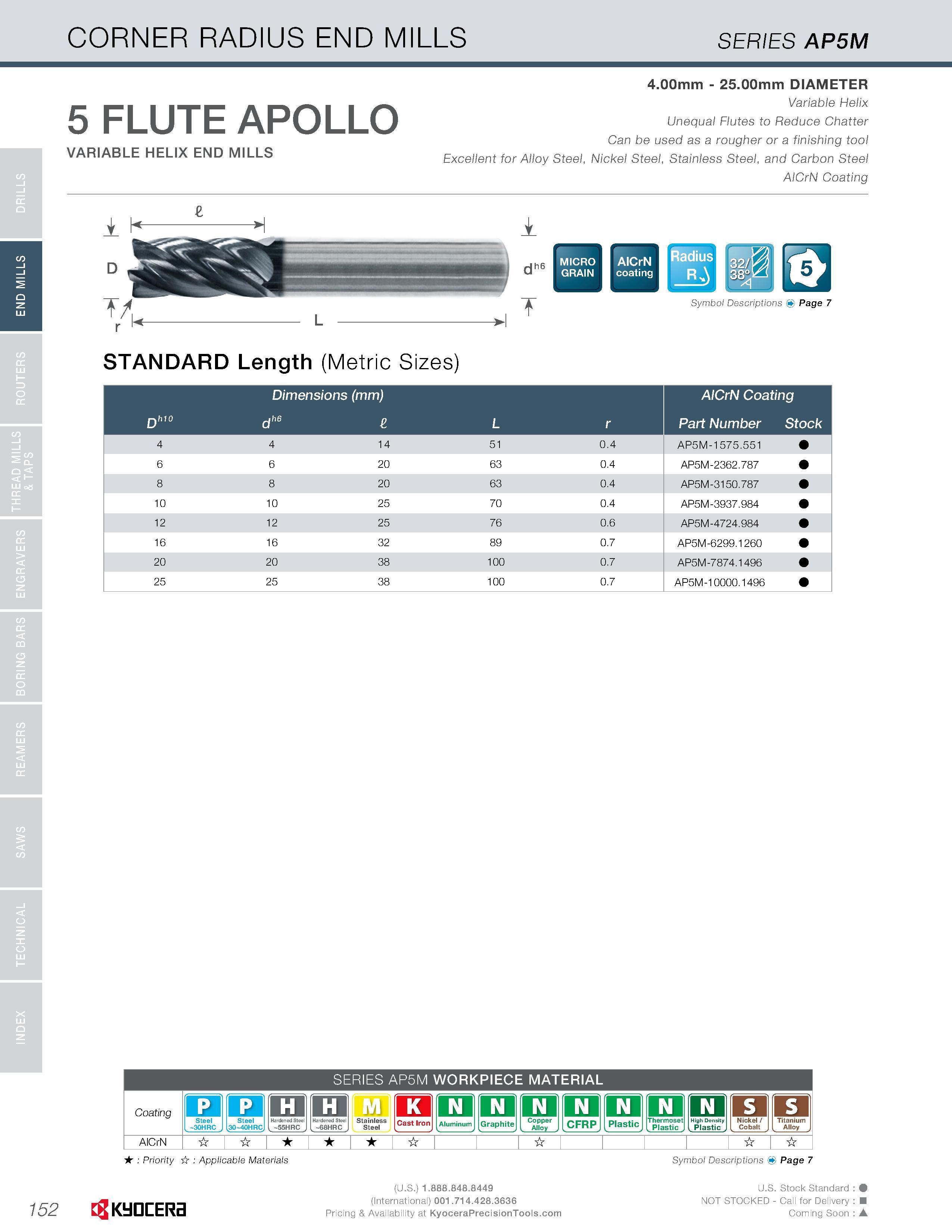

END MILLS CORNER RADIUS END MILLS SERIES AP5M 5 FLUTE APOLLO VARIABLE HELIX END MILLS 4.00mm - 25.00mm DIAMETER Variable Helix Unequal Flutes to Reduce Chatter Can be used as a rougher or a finishing tool Excellent for Alloy Steel, Nickel Steel, Stainless Steel, and Carbon Steel AlCrN Coating AlCrN IRadius 32/ If coating 38I Q Symbol Descriptions Page 7 STANDARD Length (Metric Sizes) 4 4 14 51 0.4 AP5M-1575.551 6 6 20 63 0.4 AP5M-2362.787 8 8 20 63 0.4 AP5M-3150.787 10 10 25 70 0.4 AP5M-3937.984 12 12 25 76 0.6 AP5M-4724.984 16 16 32 89 0.7 AP5M-6299.1260 20 20 38 100 0.7 AP5M-7874.1496 25 25 38 100 0.7 AP5M-10000.1496 SERIES AP5M WORKPIECE MATERIAL Coating Steel -30HRC a Steel 30-40HRC nn Hardened Steel -68HRC Stainless Steel nn a Aluminum Graphite (O Copper . Alloy . CFRP (O Plastic Thermoset . Plastic o . Plastic . m m Hardened Steel L -55HRC J Cast Ironj Nickel/ Cobalt J Titanium I Alloy J AlCrN Priority Or Applicable Materials Symbol Descriptions Page 7 152 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
