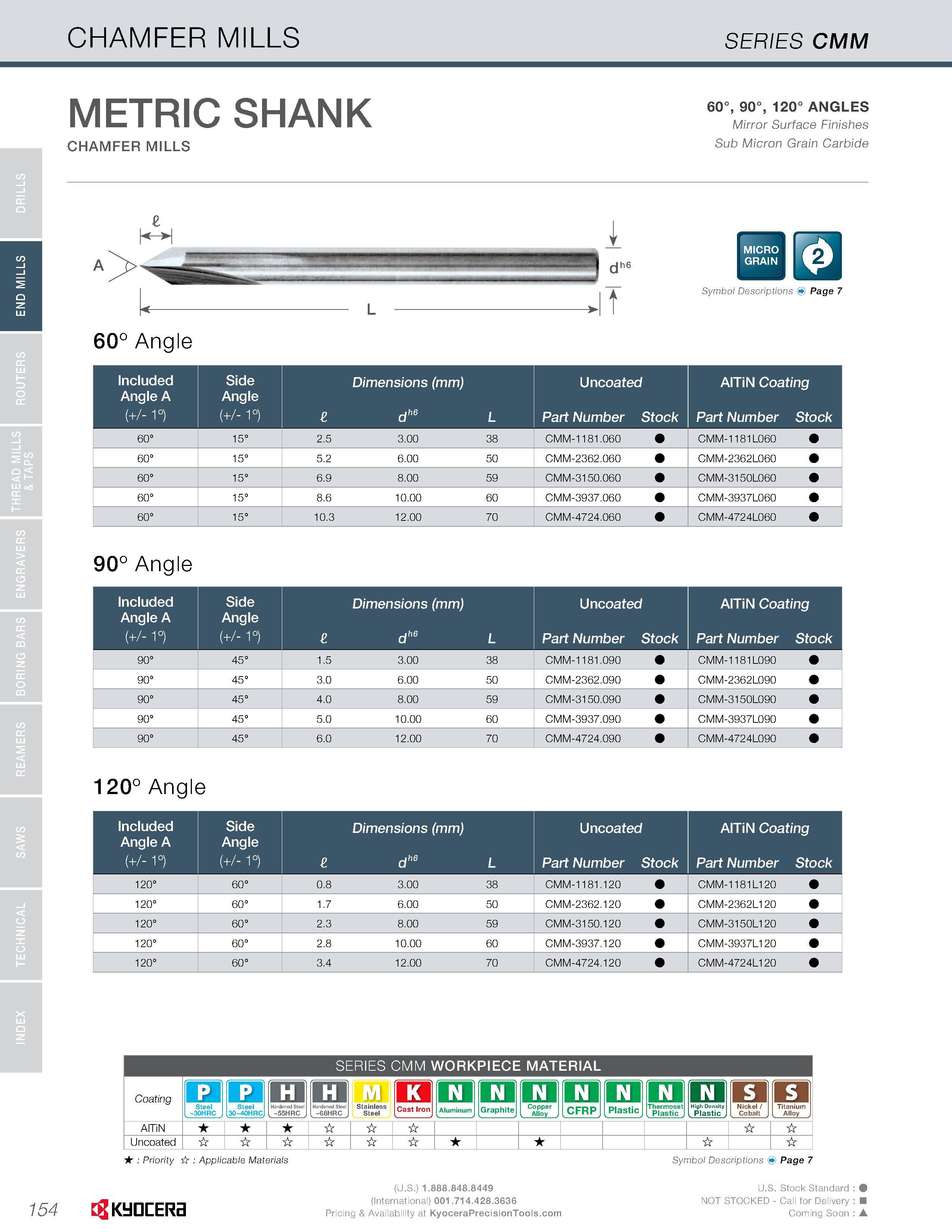

END MILLS CHAMFER MILLS SERIES CMM METRIC SHANK CHAMFER MILLS 60°, 90°, 120° ANGLES Mirror Surface Finishes Sub Micron Grain Carbide Symbol Descriptions Page 7 60° Angle Included Side Dimensions (mm) Uncoated AITiN Coating Angle A Angle (+/ 1°) (+/ 1°) dhG L Part Number Stock Part Number Stock 60° 15° 2.5 3.00 38 CMM-1181.060 CMM-1181L060 60° 15° 5.2 6.00 50 CMM-2362.060 CMM-2362L060 60° 15° 6.9 8.00 59 CMM-3150.060 CMM-3150L060 60° 15° 8.6 10.00 60 CMM-3937.060 CMM-3937L060 60° 15° 10.3 12.00 70 CMM-4724.060 CMM-4724L060 90° Angle Included Side Dimensions (mm) Uncoated AITiN Coating Angle A Angle (+/ 1°) (+/ 1°) dhG L Part Number Stock Part Number Stock 90° 45° 1.5 3.00 38 CMM-1181.090 CMM-1181L090 90° 45° 3.0 6.00 50 CMM-2362.090 CMM-2362L090 90° 45° 4.0 8.00 59 CMM-3150.090 CMM-3150L090 90° 45° 5.0 10.00 60 CMM-3937.090 CMM-3937L090 90° 45° 6.0 12.00 70 CMM-4724.090 CMM-4724L090 120° Angle Included Side Dimensions (mm) Uncoated AITiN Coating Angle A Angle (+/ 1°) (+/ 1°) dhG L Part Number Stock Part Number Stock 120° 60° 0.8 3.00 38 CMM-1181.120 CMM-1181L120 120° 60° 1.7 6.00 50 CMM-2362.120 CMM-2362L120 120° 60° 2.3 8.00 59 CMM-3150.120 CMM-3150L120 120° 60° 2.8 10.00 60 CMM-3937.120 CMM-3937L120 120° 60° 3.4 12.00 70 CMM-4724.120 CMM-4724L120 SERIES CMM WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC I H I Cl Hardened Steel -68HRC j )J Stainless Steel K o Aluminuin o Graphite o Copper Alloy o CFRP o Plastic o Thermoset Plastic o Plastic I s si Hardened Steel -55HRC J Cast Ironj Nickel/ I Cobalt J Titanium I Alloy J AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 154 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
