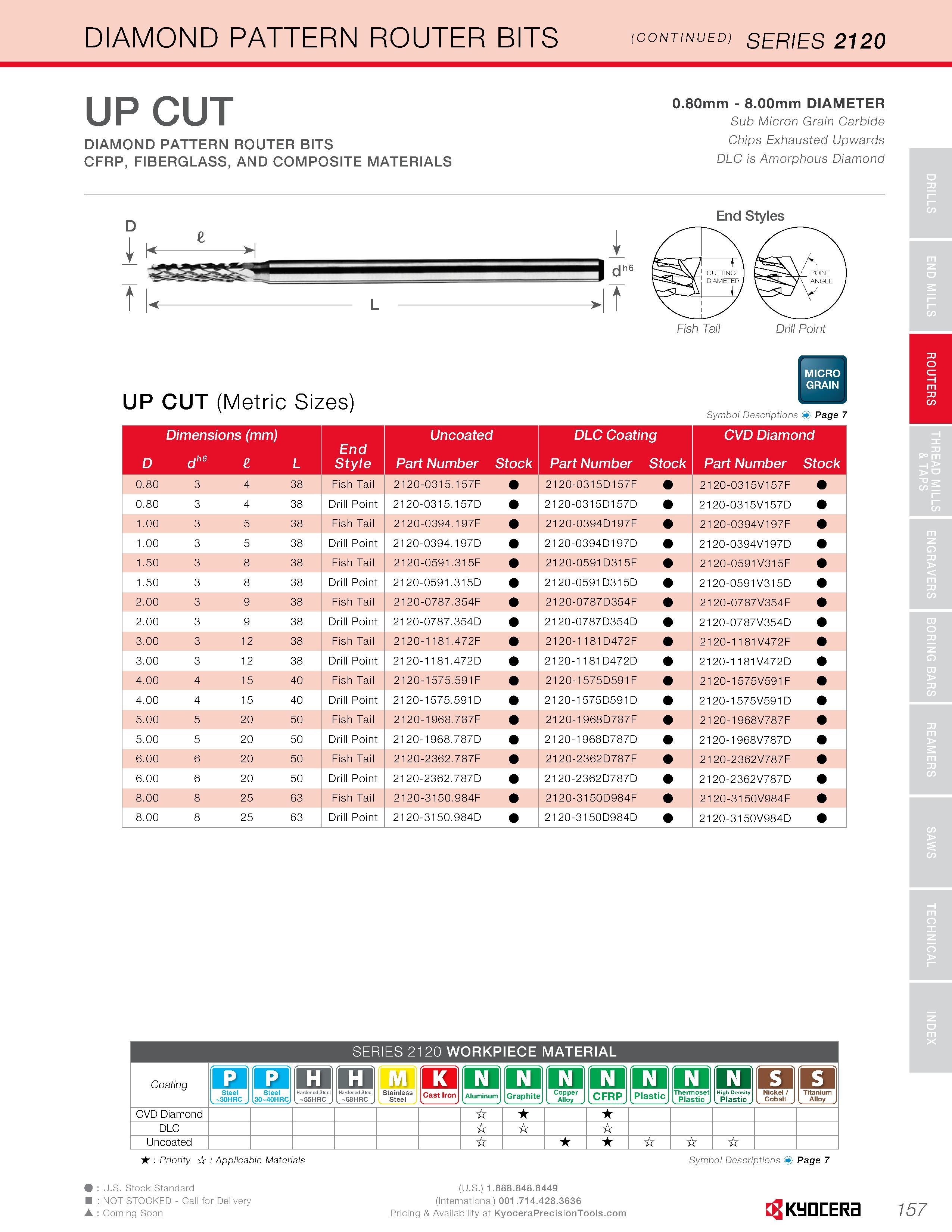

DIAMOND PATTERN ROUTER BITS (continued) series 2120 0.80mm - 8.00mm DIAMETER Sub Micron Grain Carbide Chips Exhausted Upwards DLC is Amorphous Diamond t \ L t UP CUT DIAMOND PATTERN ROUTER BITS CFRP, FIBERGLASS, AND COMPOSITE MATERIALS End Styles Fish Tail Drill Point MICRO GRAIN UP CUT (Metric Sizes) Symbol Descriptions Page 7 Dimensions (mm) Uncoated DLC Coating CVD Diamond End D dh6 L Style Part Number Stock Part Number Stock Part Number Stock 0.80 3 4 38 Fish Tail 2120-0315.157F 21 20-0315D157F 2120-0315V157F 0.80 3 4 38 Drill Point 2120-0315.157D 21 20-0315D1 57D 21 20-0315V157D 1.00 3 5 38 Fish Tail 2120-0394.197F 21 20-0394D197F 2120-0394V197F 1.00 3 5 38 Drill Point 2120-0394.197D 21 20-0394D1 97D 21 20-0394V197D 1.50 3 8 38 Fish Tail 2120-0591.315F 21 20-0591 D31 5F 21 20-0591V31 5F 1.50 3 8 38 Drill Point 2120-0591.315D 21 20-0591 D31 5D 21 20-0591V31 5D 2.00 3 9 38 Fish Tail 2120-0787.354F 2120-0787D354F 2120-0787V354F 2.00 3 9 38 Drill Point 21 20-0787.354D 2120-0787D354D 2120-0787V354D 3.00 3 12 38 Fish Tail 2120-1181.472F 21 20-11 81 D472F 2120-1181V472F 3.00 3 12 38 Drill Point 2120-1181.472D 21 20-11 81 D472D 2120-1181V472D 4.00 4 15 40 Fish Tail 2120-1575.591F 21 20-1 575D591 F 2120-1 575V591F 4.00 4 15 40 Drill Point 2120-1575.591D 21 20-1 575D591 D 2120-1 575V591D 5.00 5 20 50 Fish Tail 2120-1968.787F 21 20-1 968D787F 21 20-1 968V787F 5.00 5 20 50 Drill Point 2120-1968.787D 21 20-1 968D787D 21 20-1 968V787D 6.00 6 20 50 Fish Tail 2120-2362.787F 2120-2362D787F 2120-2362V787F 6.00 6 20 50 Drill Point 2120-2362.787D 2120-2362D787D 2120-2362V787D 8.00 8 25 63 Fish Tail 2120-3150.984F 21 20-31 50D984F 21 20-3150V984F 8.00 8 25 63 Drill Point 2120-3150.984D 21 20-31 50D984D 21 20-31 50V984D SERIES 2120 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H lul Stainless Steel K Q Aluminum o Graphite Q Copper . Alloy o CFRP Q Plastic o Thermoset L Plastic si . Plastic . I s I s Hardened Steel I -68HRC J j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J CVD Diamond DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon (U.S.) (International) 001.714.428.3636 i un Pricing & Availability 157 ROUTERS
