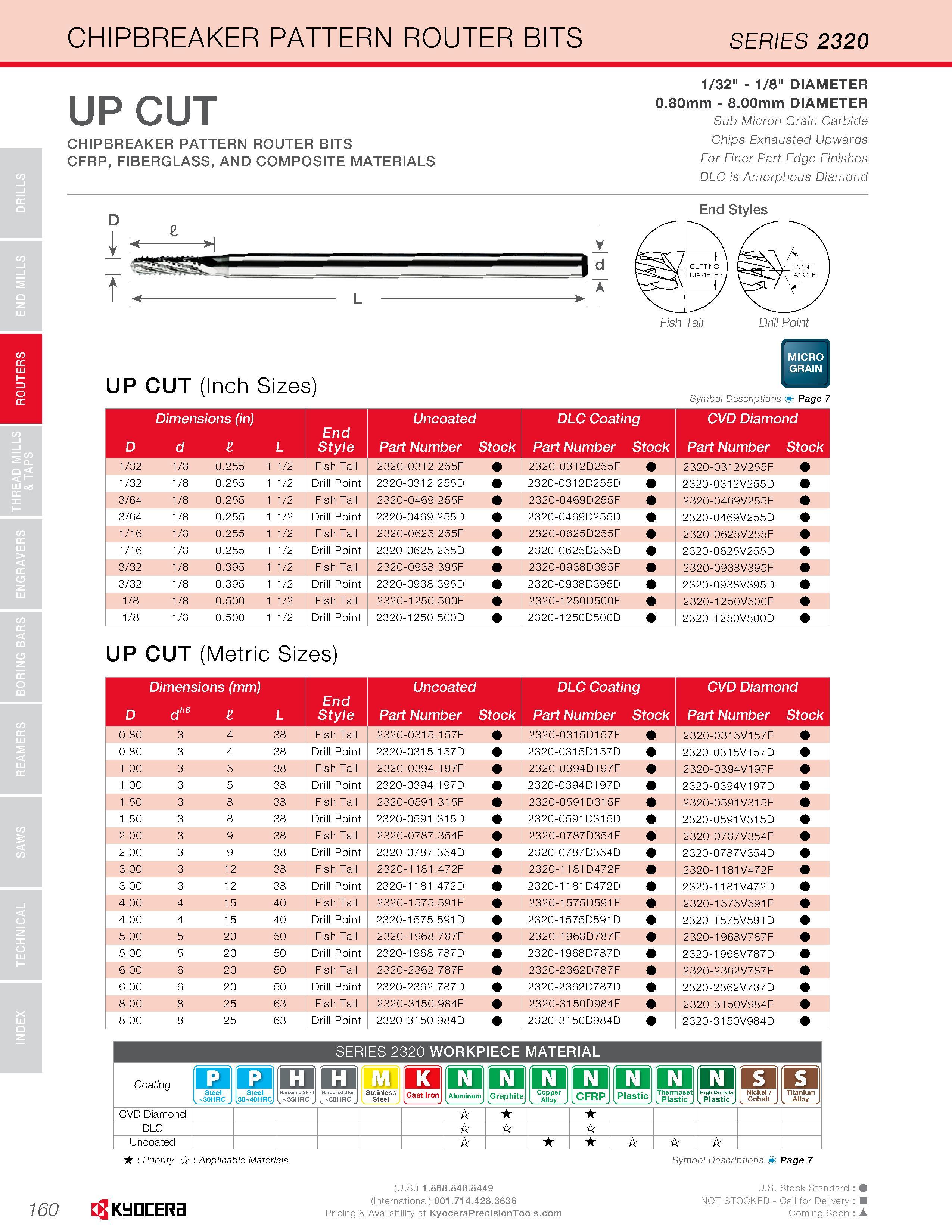

ROUTERS CHIPBREAKER PATTERN ROUTER BITS SERIES 2320 160 UP CUT CHIPBREAKER PATTERN ROUTER BITS CFRP, FIBERGLASS, AND COMPOSITE MATERIALS 1/32" - 1/8" DIAMETER 0.80mm - 8.00mm DIAMETER Sub Micron Grain Carbide Chips Exhausted Upwards For Finer Part Edge Finishes DLC is Amorphous Diamond End Styles Fish Tail Drill Point UP CUT (Inch Sizes) Symbol Descriptions Page 7 D Dimensions (in) d L End Style Uncoated Part Number Stock DLC Coating Part Number Stock CVD Diamond Part Number Stock 1/32 1/8 0.255 1 1/2 Fish Tail 2320-031 2.255F 2320-0312D255F 2320-0312V255F 1/32 1/8 0.255 1 1/2 Drill Point 2320-031 2.255D 2320-0312 D255D 2320-0312V255D 3/64 1/8 0.255 1 1/2 Fish Tail 2320-0469.255F 2320-0469D255F 2320-0469V255F 3/64 1/8 0.255 1 1/2 Drill Point 2320-0469.255D 2320-0469D255D 2320-0469V255D 1/16 1/8 0.255 1 1/2 Fish Tail 2320-0625.255F 2320-0625D255F 2320-0625V255F 1/16 1/8 0.255 1 1/2 Drill Point 2320-0625.255D 2320-0625D255D 2320-0625V255D 3/32 1/8 0.395 1 1/2 Fish Tail 2320-0938.395F 2320-0938D395F 2320-0938V395F 3/32 1/8 0.395 1 1/2 Drill Point 2320-0938.395D 2320-0938D395D 2320-0938V395D 1/8 1/8 0.500 1 1/2 Fish Tail 2320-1 250.500F 2320-1250D500F 2320-1250V500F 1/8 1/8 0.500 1 1/2 Drill Point 2320-1250.500D 2320-1250D500D 2320-1250V500D UP CUT (Metric Sizes) D Dimensions (mm) dhe L End Style Uncoated Part Number Stock DLC Coating Part Number Stock CVD Diamond Part Number Stock 0.80 3 4 38 Fish Tail 2320-0315.157F 2320-0315D157F 2320-0315V157F 0.80 3 4 38 Drill Point 2320-0315.157D 2320-0315D1 57D 2320-0315V157D 1.00 3 5 38 Fish Tail 2320-0394.197F 2320-0394D197F 2320-0394V197F 1.00 3 5 38 Drill Point 2320-0394.197D 2320-0394D197D 2 320-0394V197 D 1.50 3 8 38 Fish Tail 2320-0591.315F 2320-0591D315F 2320-0591V315F 1.50 3 8 38 Drill Point 2320-0591.315D 2320-0591D315D 2320-0591V31 5D 2.00 3 9 38 Fish Tail 2320-0787.354F 2320-0787D354F 2320-0787V354F 2.00 3 9 38 Drill Point 2320-0787.354D 2320-0787D354D 2320-0787V354D 3.00 3 12 38 Fish Tail 2320-1181.472F 2320-11 81 D472F 2320-1181V472F 3.00 3 12 38 Drill Point 2320-1181.472D 2320-11 81 D472D 2320-1181V472D 4.00 4 15 40 Fish Tail 2320-1575.591F 2320-1575D591F 2320-1575V591F 4.00 4 15 40 Drill Point 2320-1575.591 D 2320-1575D591D 2320-1575V591D 5.00 5 20 50 Fish Tail 2320-1 968.787F 2320-1968D787F 2320-1968V787F 5.00 5 20 50 Drill Point 2320-1968.787D 2320-1968D787D 2320-1968V787D 6.00 6 20 50 Fish Tail 2320-2362.787F 2320-2362 D787F 2320-2362V787F 6.00 6 20 50 Drill Point 2320-2362.787D 2320-2362 D787D 2320-2362V787D 8.00 8 25 63 Fish Tail 2320-3150.984F 2320-3150D984F 2320-3150V984F 8.00 8 25 63 Drill Point 2320-31 50.984D 2320-3150D984D 2320-3150V984D SERIES 2320 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H I j'jJ Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset L Plastic Cl . Plastic . I s I IS Hardened Steel I -68HRC J j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J CVD Diamond DLC Uncoated Priority Applicable Materials Symbol Descriptions ( CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
