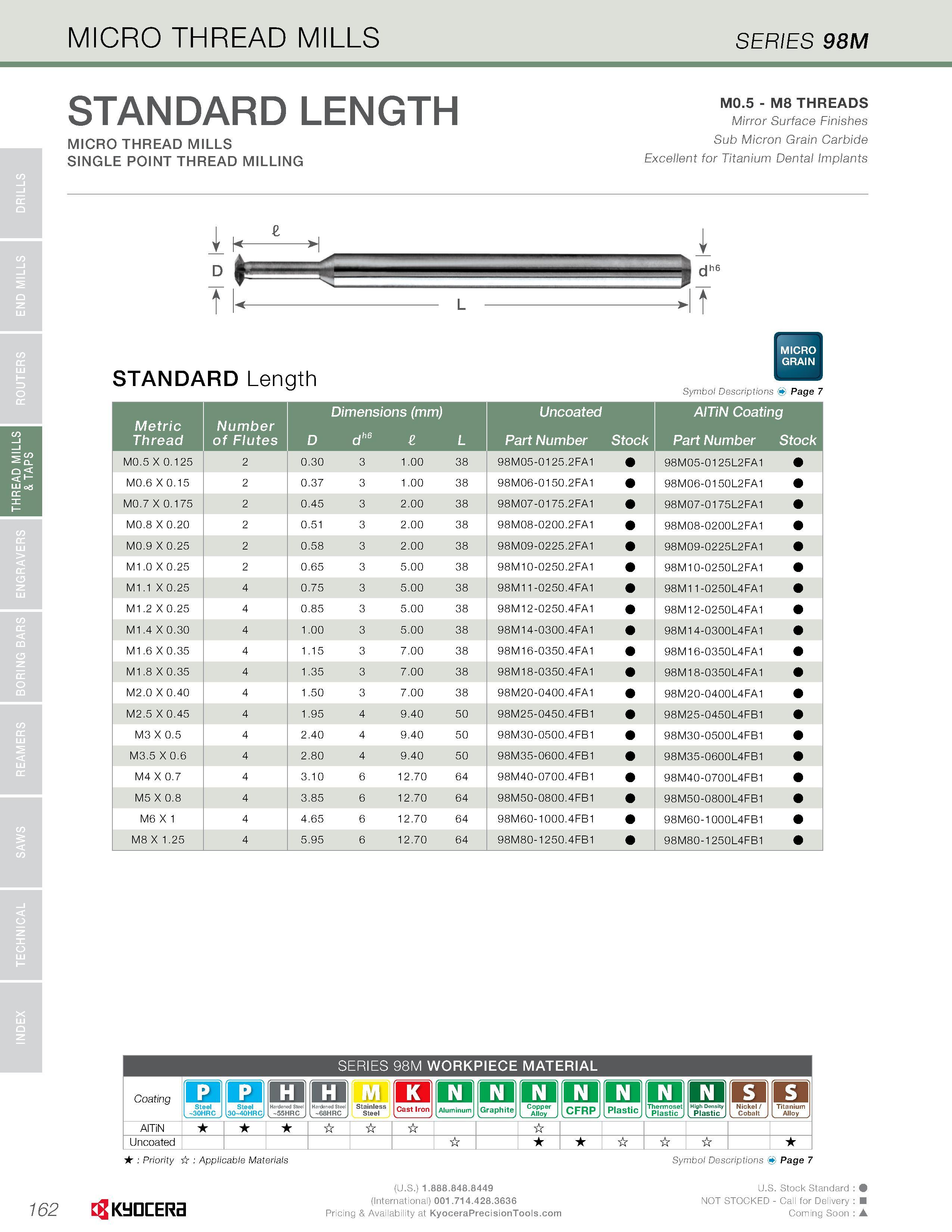

THREAD MILLS & TAPS MICRO THREAD MILLS SERIES 98M STANDARD LENGTH MICRO THREAD MILLS SINGLE POINT THREAD MILLING MO.5 - M8 THREADS Mirror Surface Finishes Sub Micron Grain Carbide Excellent for Titanium Dental Implants t l< L > f MICRO GRAIN STANDARD Length Symbo/ Descriptions ( " Page 7 Dimensions (mm) Uncoated AITiN Coating Metric Number D dh6 2. L Thread of Flutes Part Number Stock Part Number Stock MO.5 X 0.125 2 0.30 3 1.00 38 98M05-0125.2FA1 98M05-0125L2FA1 MO.6 X 0.15 2 0.37 3 1.00 38 98M06-0150.2FA1 98M06-0150L2FA1 MO.7 X 0.175 2 0.45 3 2.00 38 98M07-0175.2FA1 98M07-0175L2FA1 MO.8 X 0.20 2 0.51 3 2.00 38 98M08-0200.2FA1 98M08-0200L2 FA1 MO.9 X 0.25 2 0.58 3 2.00 38 98M09-0225.2FA1 98M09-0225L2 FA1 M1.0 X 0.25 2 0.65 3 5.00 38 98M10-0250.2 FA1 98M10-0250L2FA1 M1.1 X 0.25 4 0.75 3 5.00 38 98M11 -0250.4FA1 98M11-0250L4FA1 M1.2 X 0.25 4 0.85 3 5.00 38 98M12-0250.4FA1 98M12-0250L4FA1 M1.4 X 0.30 4 1.00 3 5.00 38 98M14-0300.4FA1 98M14-0300L4FA1 M1.6 X 0.35 4 1.15 3 7.00 38 98M16-0350.4FA1 98M16-0350L4FA1 M1.8 X 0.35 4 1.35 3 7.00 38 98M18-0350.4FA1 98M18-0350L4FA1 M2.0 X 0.40 4 1.50 3 7.00 38 98M20-0400.4FA1 98M20-0400L4FA1 M2.5 X 0.45 4 1.95 4 9.40 50 98M25-0450.4FB1 98M25-0450L4FB1 M3 X 0.5 4 2.40 4 9.40 50 98M30-0500.4FB1 98M30-0500L4FB1 M3.5 X 0.6 4 2.80 4 9.40 50 98M35-0600.4FB1 98M35-0600L4FB1 M4 X 0.7 4 3.10 6 12.70 64 98M40-0700.4FB1 98M40-0700L4FB1 M5 X 0.8 4 3.85 6 12.70 64 98M50-0800.4FB1 98M50-0800L4FB1 M6 X 1 4 4.65 6 12.70 64 98M60-1000.4FB1 98M60-1000L4FB1 M8 X 1.25 4 5.95 6 12.70 64 98M80-1250.4FB1 98M80-1250L4FB1 SERIES 98M WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 162 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
