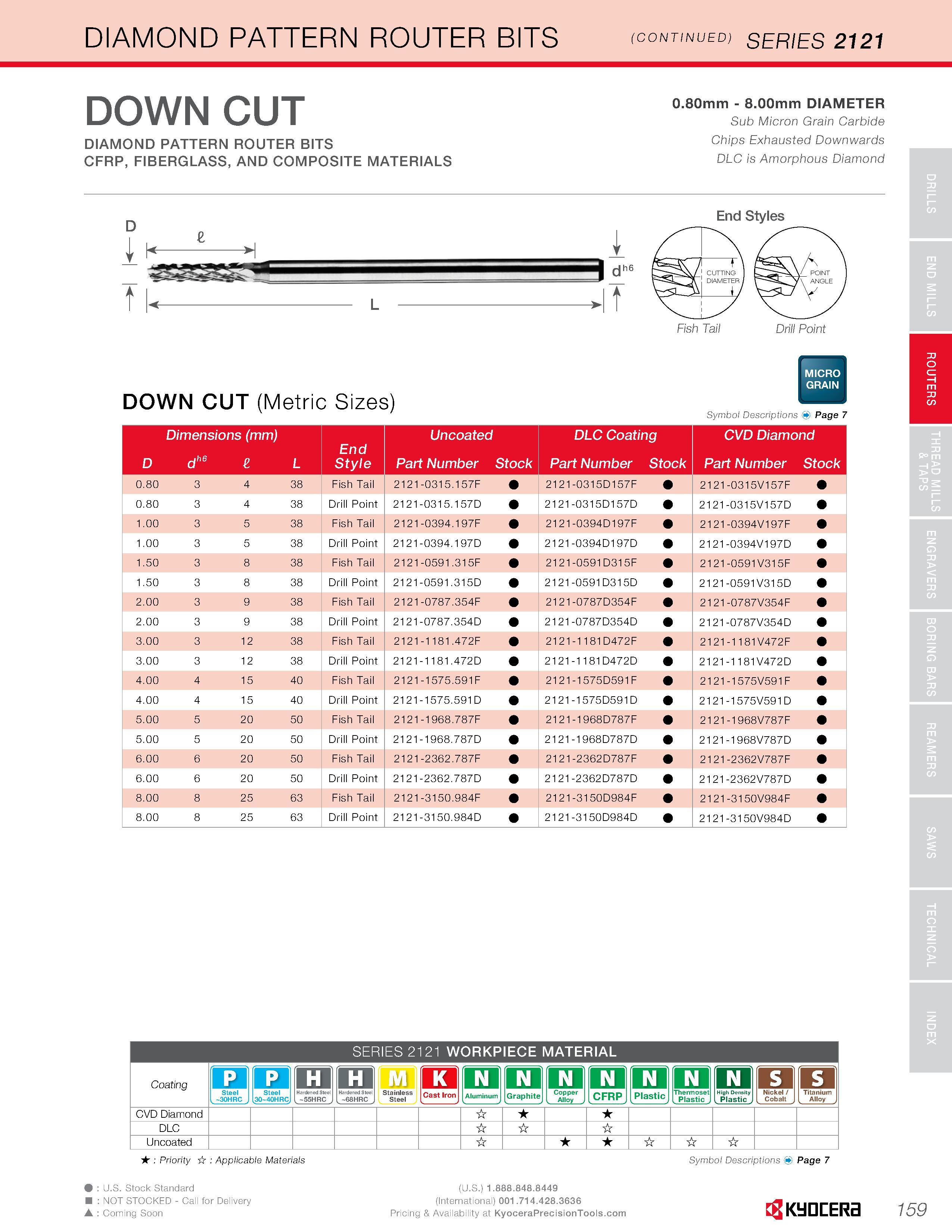

DIAMOND PATTERN ROUTER BITS (continued) series 2121 DOWN CUT 0.80mm - 8.00mm DIAMETER Sub Micron Grain Carbide DIAMOND PATTERN ROUTER BITS chiPs Exhausted Downwards CFRP, FIBERGLASS, AND COMPOSITE MATERIALS DLC is Amorphous Diamond End Styles Fish Tail Drill Point MICRO GRAIN DOWN CUT (Metric Sizes) Symbol Descriptions Page 7 Dimensions (mm) Uncoated DLC Coating CVD Diamond End D dh6 L Style Part Number Stock Part Number Stock Part Number Stock 0.80 3 4 38 Fish Tail 2121-0315.157F 2121 -0315D157F 2121 -0315V157F 0.80 3 4 38 Drill Point 2121-0315.157D 2121 -0315D1 57D 2121 -0315V157D 1.00 3 5 38 Fish Tail 2121-0394.197F 2121-0394D197F 2121-0394V197F 1.00 3 5 38 Drill Point 2121-0394.197D 21 21-0394D1 97D 2121-0394V197D 1.50 3 8 38 Fish Tail 2121-0591.315F 21 21 -0591 D31 5F 2121 -0591V31 5F 1.50 3 8 38 Drill Point 2121-0591.315D 21 21 -0591 D31 5D 2121 -0591V31 5D 2.00 3 9 38 Fish Tail 2121-0787.354F 21 21-0787D354F 21 21-0787V354F 2.00 3 9 38 Drill Point 2121-0787.354D 21 21-0787D354D 21 21-0787V354D 3.00 3 12 38 Fish Tail 2121-1181.472F 21 21 -11 81 D472F 2121-1181V472F 3.00 3 12 38 Drill Point 2121-1181.472D 21 21 -11 81 D472D 2121-1181V472D 4.00 4 15 40 Fish Tail 2121-1575.591F 2121-1 575D591 F 2121-1 575V591 F 4.00 4 15 40 Drill Point 2121-1575.591D 2121-1 575D591 D 2121-1 575V591 D 5.00 5 20 50 Fish Tail 2121-1968.787F 2121-1968D787F 2121-1968V787F 5.00 5 20 50 Drill Point 2121-1968.787D 2121-1968D787D 2121-1968V787D 6.00 6 20 50 Fish Tail 2121-2362.787F 21 21-2362D787F 21 21-2362V787F 6.00 6 20 50 Drill Point 2121-2362.787D 21 21-2362D787D 21 21-2362V787D 8.00 8 25 63 Fish Tail 2121-3150.984F 21 21 -31 50D984F 2121-3150V984F 8.00 8 25 63 Drill Point 2121-3150.984D 21 21 -31 50D984D 21 21 -31 50V984D SERIES 2121 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H lul Stainless Steel K Q Aluminum o Graphite Q Copper . Alloy o CFRP Q Plastic o Thermoset L Plastic si . Plastic . I s I Is I' Hardened Steel I -68HRC J j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J CVD Diamond DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 159 ROUTERS
