160 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.158

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 158 0160 ENG Lab2u

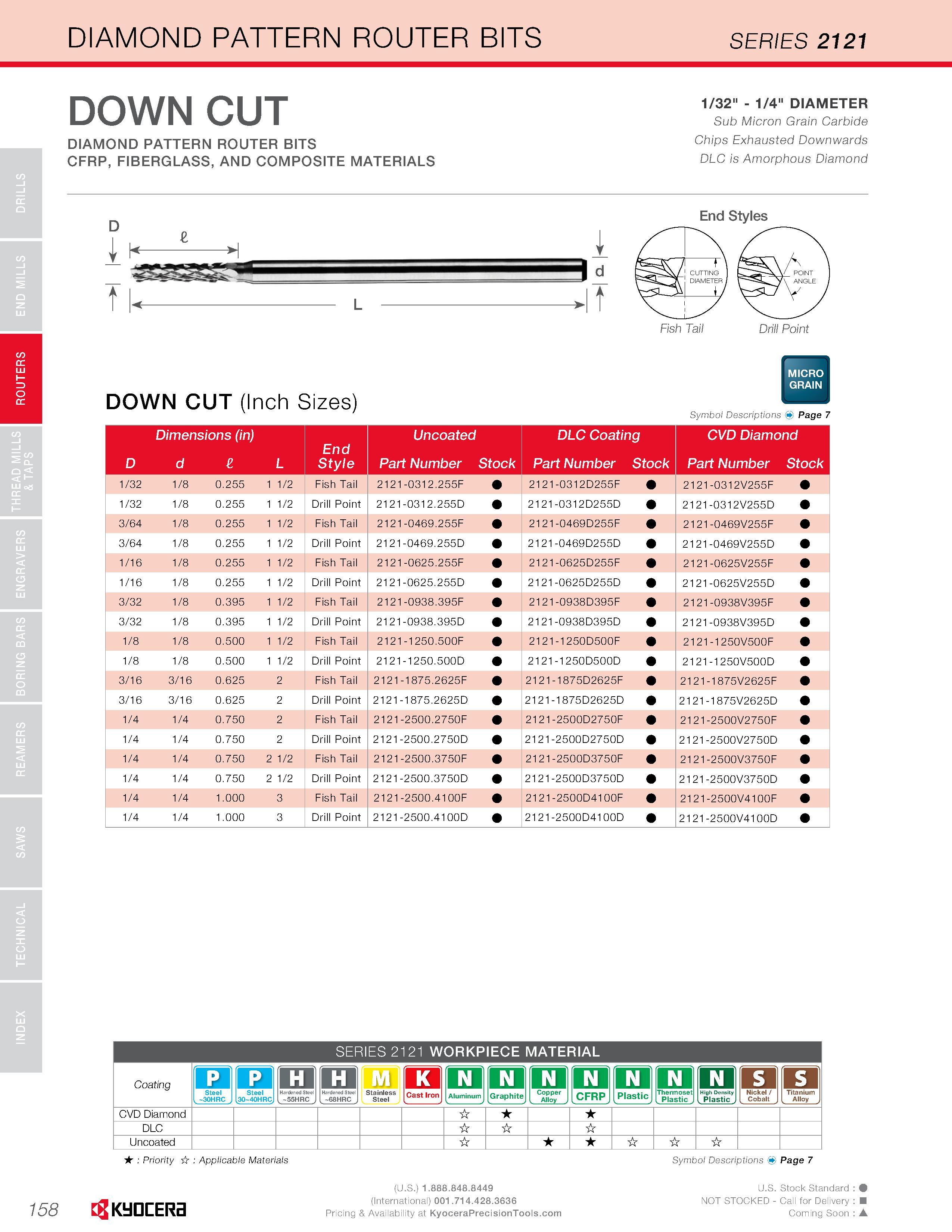

ROUTERS DIAMOND PATTERN ROUTER BITS SERIES 2121 DOWN CUT 1/32" - 1/4" DIAMETER Sub Micron Grain Carbide DIAMOND PATTERN ROUTER BITS chiPs Exhausted Downwards CFRP, FIBERGLASS, AND COMPOSITE MATERIALS DLC is Amorphous Diamond End Styles Fish Tail Drill Point MICRO GRAIN DOWN CUT (Inch Sizes) Symbol Descriptions Page 7 Dimensions (in) Uncoated DLC Coating CVD Diamond End D d L Style Part Number Stock Part Number Stock Part Number Stock 1/32 1/8 0.255 1 1/2 Fish Tail 2121-0312.255F 2121 -0312D255F 2121 -0312V255F 1/32 1/8 0.255 1 1/2 Drill Point 2121-0312.255D 2121 -0312D255D 2121 -0312V255D 3/64 1/8 0.255 1 1/2 Fish Tail 2121-0469.255F 21 21-0469D255F 2121-0469V255F 3/64 1/8 0.255 1 1/2 Drill Point 2121-0469.255D 21 21-0469D255D 2121-0469V255D 1/16 1/8 0.255 1 1/2 Fish Tail 2121-0625.255F 21 21-0625D255F 2121-0625V255F 1/16 1/8 0.255 1 1/2 Drill Point 2121-0625.255D 21 21-0625D255D 2121-0625V255D 3/32 1/8 0.395 1 1/2 Fish Tail 2121-0938.395F 21 21-0938D395F 2121-0938V395F 3/32 1/8 0.395 1 1/2 Drill Point 2121-0938.395D 21 21-0938D395D 2121-0938V395D 1/8 1/8 0.500 1 1/2 Fish Tail 2121-1250.500F 2121-1250D500F 2121-1250V500F 1/8 1/8 0.500 1 1/2 Drill Point 2121-1250.500D 2121-1250D500D 2121-1250V500D 3/16 3/16 0.625 2 Fish Tail 2121-1875.2625F 2121 -1875D2625F 2121-1875V2625F 3/16 3/16 0.625 2 Drill Point 2121-1875.2625D 2121-1875D2625D 2121-1875V2625D 1/4 1/4 0.750 2 Fish Tail 2121-2500.2750F 2121-2500D2750F 2121-2500V2750F 1/4 1/4 0.750 2 Drill Point 2121-2500.2750D 2121-2500D2750D 21 21-2500V2750D 1/4 1/4 0.750 2 1/2 Fish Tail 2121-2500.3750F 2121-2500D3750F 21 21-2500V3750F 1/4 1/4 0.750 2 1/2 Drill Point 2121 -2500.3750D 2121-2500D3750D 21 21-2500V3750D 1/4 1/4 1.000 3 Fish Tail 2121-2500.4100F 21 21-2500D41OOF 2121-2500V41OOF 1/4 1/4 1.000 3 Drill Point 2121-2500.4100D 2121-2500D4100D 21 21-2500V4100D SERIES 2121 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H m Stainless Steel K Q Aluminum o Graphite Q Copper . Alloy o CFRP Q Plastic o Thermoset L Plastic si . Plastic . I s I s Hardened Steel I -68HRC J j Cast Ironj Nickel/ Cobalt J Titanium Alloy J CVD Diamond DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 158 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
