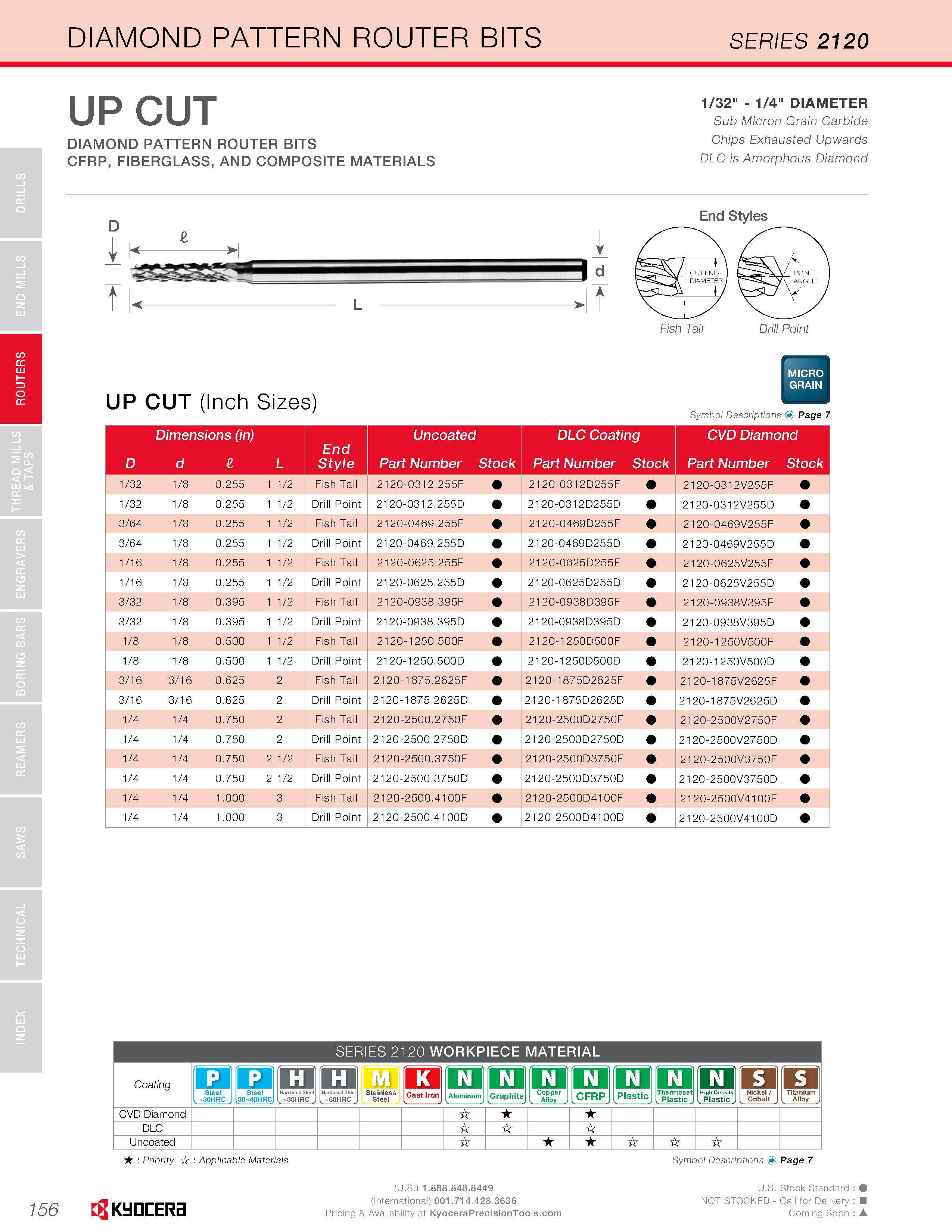

158 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.156

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 156 0158 ENG Lab2u

ROUTERS DIAMOND PATTERN ROUTER BITS SERIES 2120 156 1/32" - 1/4" DIAMETER Sub Micron Grain Carbide Chips Exhausted Upwards DLC is Amorphous Diamond t \ L t UP CUT DIAMOND PATTERN ROUTER BITS CFRP, FIBERGLASS, AND COMPOSITE MATERIALS End Styles Fish Tail Drill Point MICRO GRAIN UP CUT (Inch Sizes) Symbol Descriptions Page 7 Dimensions (in) Uncoated DLC Coating CVD Diamond End D d L Style Part Number Stock Part Number Stock Part Number Stock 1/32 1/8 0.255 1 1/2 Fish Tail 2120-0312.255F 21 20-0312D255F 2120-0312V255F 1/32 1/8 0.255 1 1/2 Drill Point 2120-0312.255D 21 20-0312D255D 21 20-0312V255D 3/64 1/8 0.255 1 1/2 Fish Tail 2120-0469.255F 2120-0469D255F 2120-0469V255F 3/64 1/8 0.255 1 1/2 Drill Point 2120-0469.255D 2120-0469D255D 2120-0469V255D 1/16 1/8 0.255 1 1/2 Fish Tail 2120-0625.255F 2120-0625D255F 2120-0625V255F 1/16 1/8 0.255 1 1/2 Drill Point 2120-0625.255D 2120-0625D255D 2120-0625V255D 3/32 1/8 0.395 1 1/2 Fish Tail 2120-0938.395F 2120-0938D395F 2120-0938V395F 3/32 1/8 0.395 1 1/2 Drill Point 21 20-0938.395D 2120-0938D395D 2120-0938V395D 1/8 1/8 0.500 1 1/2 Fish Tail 2120-1250.500F 21 20-1 250D500F 21 20-1 250V500F 1/8 1/8 0.500 1 1/2 Drill Point 2120-1250.500D 21 20-1 250D500D 21 20-1 250V500D 3/16 3/16 0.625 2 Fish Tail 2120-1875.2625F 2120-1875D2625F 2120-1875V2625F 3/16 3/16 0.625 2 Drill Point 2120-1875.2625D 2120-1875D2625D 2120-1875V2625D 1/4 1/4 0.750 2 Fish Tail 2120-2500.2750F 2120-2500D2750F 2120-2500V2750F 1/4 1/4 0.750 2 Drill Point 2120-2500.2750D 2120-2500D2750D 2120-2500V2750D 1/4 1/4 0.750 2 1/2 Fish Tail 2120-2500.3750F 2120-2500D3750F 2120-2500V3750F 1/4 1/4 0.750 2 1/2 Drill Point 2120-2500.3750D 2120-2500D3750D 2120-2500V3750D 1/4 1/4 1.000 3 Fish Tail 2120-2500.4100F 21 20-2500D41 OOF 21 2 0-2 500V41 OOF 1/4 1/4 1.000 3 Drill Point 2120-2500.4100D 21 20-2500D41 00D 21 20-2500V41 00D SERIES 2120 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Hardened Steel -55HRC I H m Stainless Steel K Q Aluminum o Graphite o Copper . Alloy o CFRP o Plastic o Thermoset L Plastic si . Plastic . I s I Is I' Hardened Steel I -68HRC J j Cast IronJ Nickel/ Cobalt J Titanium Alloy J CVD Diamond DLC Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
