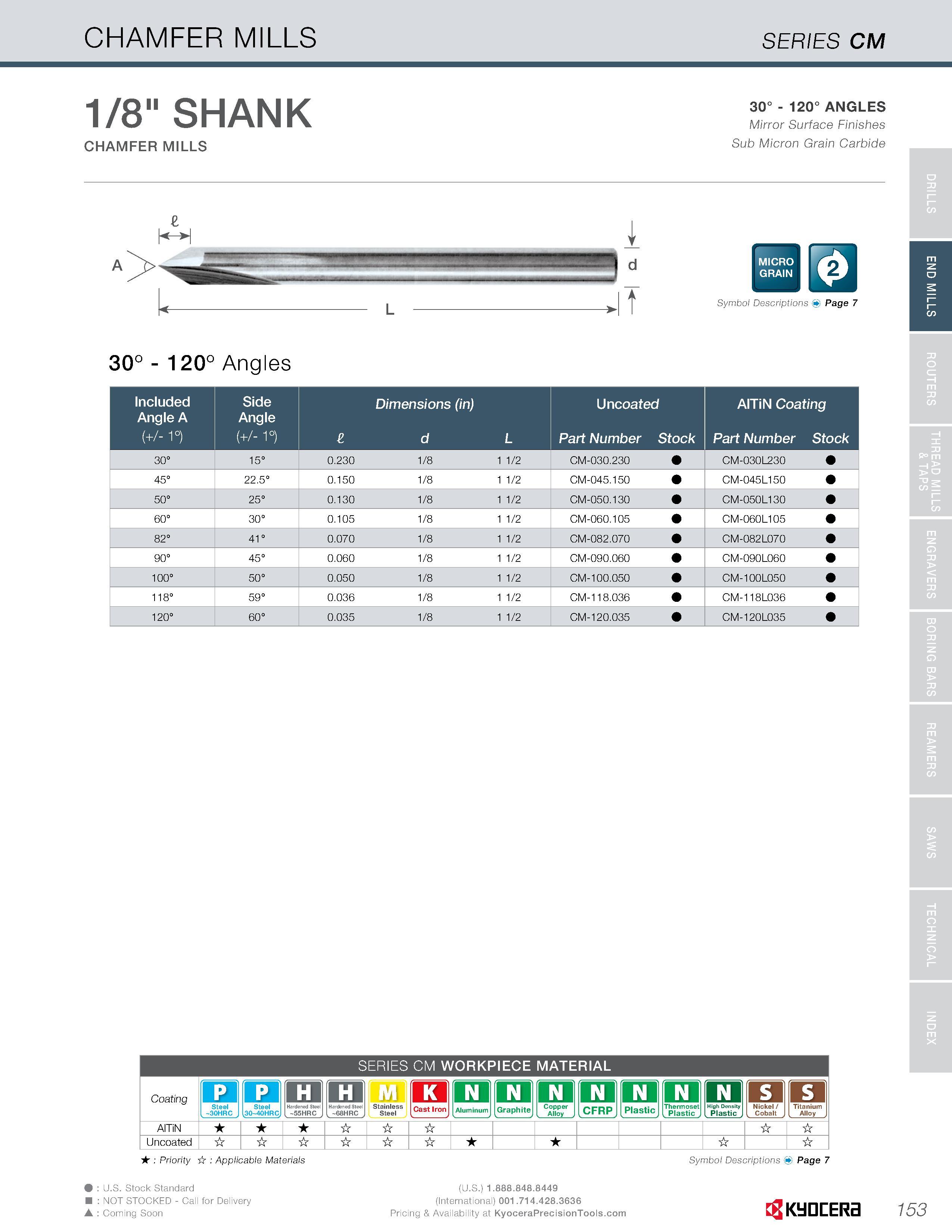

CHAMFER MILLS SERIES CM 1/8" SHANK 30° - 120° ANGLES Mirror Surface Finishes CHAMFER MILLS Sub Micron Grain Carbide 30° - 120° Angles MICRO I GRAIN Symbol Descriptions Page 7 Included Angle A Side Angle Dimensions (in) Uncoated AITiN Coating (+/-1°) (+/-1°) d L Part Number Stock Part Number Stock 30° 15° 0.230 1/8 1 1/2 CM-030.230 CM-030L230 45° 22.5° 0.150 1/8 1 1/2 CM-045.150 CM-045L150 50° 25° 0.130 1/8 1 1/2 CM-050.130 CM-050L130 60° 30° 0.105 1/8 1 1/2 CM-060.105 CM-060L105 82° 41° 0.070 1/8 1 1/2 CM-082.070 CM-082L070 90° 45° 0.060 1/8 1 1/2 CM-090.060 CM-090L060 100° 50° 0.050 1/8 1 1/2 CM-100.050 CM-100L050 118° 59° 0.036 1/8 1 1/2 CM-118.036 CM-118L036 120° 60° 0.035 1/8 1 1/2 CM-120.035 CM-120L035 SERIES CM WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Eil Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 153 END MILLS
