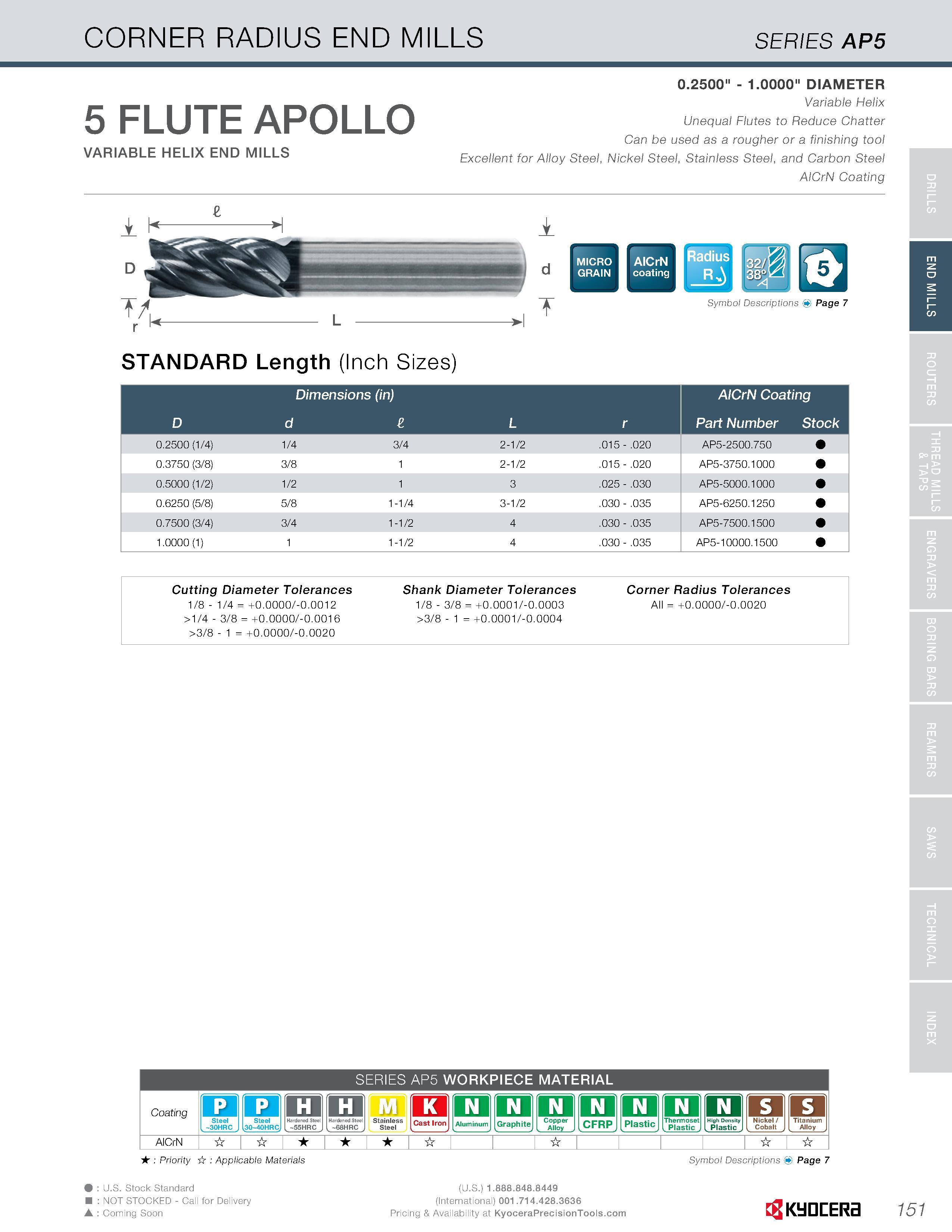

CORNER RADIUS END MILLS SERIES AP5 5 FLUTE APOLLO VARIABLE HELIX END MILLS 0.2500" - 1.0000" DIAMETER Variable Helix Unequal Flutes to Reduce Chatter Can be used as a rougher or a finishing tool Excellent for Alloy Steel, Nickel Steel, Stainless Steel, and Carbon Steel AlCrN Coating GRAIN coating AlCrN Radius 32/ _RJJ38H Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) AlCrN Coating D d L r Part Number Stock 0.2500 (1/4) 1/4 3/4 2-1/2 .015 - .020 AP5-2500.750 0.3750 (3/8) 3/8 1 2-1/2 .015 - .020 AP5-3750.1000 0.5000 (1/2) 1/2 1 3 .025 - .030 AP5-5000.1000 0.6250 (5/8) 5/8 1-1/4 3-1/2 .030 - .035 AP5-6250.1250 0.7500 (3/4) 3/4 1-1/2 4 .030 - .035 AP5-7500.1500 1.0000 (1) 1 1-1/2 4 .030 - .035 AP5-10000.1500 Cutting Diameter Tolerances Shank Diameter Tolerances Corner Radius Tolerances 1/8 - 1/4 = +0.0000/-0.0012 1/8 - 3/8 = +0.0001/-0.0003 All = +0.0000/-0.0020 >1/4 - 3/8 = +0.0000/-0.001 6 >3/8 - 1 = +0.0001/-0.0004 >3/8 - 1 = +0.0000/-0.0020 SERIES AP5 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AlCrN Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 151 END MILLS
