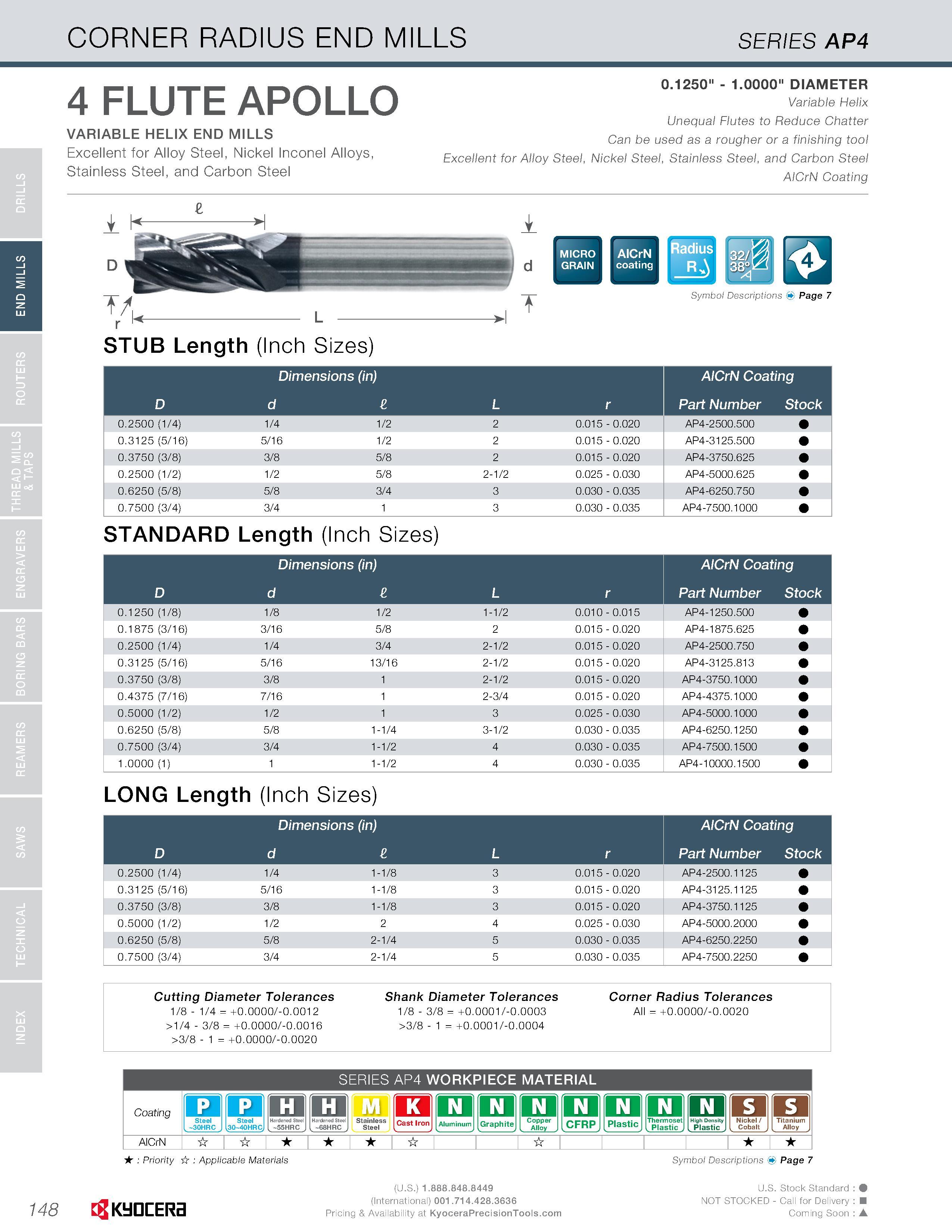

END MILLS CORNER RADIUS END MILLS SERIES AP4 4 FLUTE APOLLO 0.1250" - 1.0000" DIAMETER Variable Helix Unequal Flutes to Reduce Chatter VARIABLE HELIX END MILLS Qan usgc/ as a rougher or a finishing tool Excellent for Alloy Steel, Nickel Inconel Alloys, Excellent for Alloy Steel, Nickel Steel, Stainless Steel, and Carbon Steel Stainless Steel, and Carbon Steel AlCrN Coating Dimensions (in) AlCrN Coating D d L r Part Number Stock 0.2500 (1/4) 1/4 1/2 2 0.015 - 0.020 AP4-2500.500 0.3125 (5/16) 5/16 1/2 2 0.015 - 0.020 AP4-3125.500 0.3750 (3/8) 3/8 5/8 2 0.015 - 0.020 AP4-3750.625 0.2500 (1/2) 1/2 5/8 2-1/2 0.025 - 0.030 AP4-5000.625 0.6250 (5/8) 5/8 3/4 3 0.030 - 0.035 AP4-6250.750 0.7500 (3/4) 3/4 1 3 0.030 - 0.035 AP4-7500.1000 STANDARD Length (Inch Sizes) Dimensions (in) AlCrN Coating D d e L r Part Number Stock 0.1250 (1/8) 1/8 1/2 1-1/2 0.010 - 0.015 AP4-1250.500 0.1875 (3/16) 3/16 5/8 2 0.015 - 0.020 AP4-1875.625 0.2500 (1/4) 1/4 3/4 2-1/2 0.015 - 0.020 AP4-2500.750 0.3125 (5/16) 5/16 13/16 2-1/2 0.015 - 0.020 AP4-3125.813 0.3750 (3/8) 3/8 1 2-1/2 0.015 - 0.020 AP4-3750.1000 0.4375 (7/16) 7/16 1 2-3/4 0.015 - 0.020 AP4-4375.1000 0.5000 (1/2) 1/2 1 3 0.025 - 0.030 AP4-5000.1000 0.6250 (5/8) 5/8 1-1/4 3-1/2 0.030 - 0.035 AP4-6250.1250 0.7500 (3/4) 3/4 1-1/2 4 0.030 - 0.035 AP4-7500.1500 1.0000 (1) 1 1-1/2 4 0.030 - 0.035 AP4-10000.1500 LONG Length (Inch Sizes) Dimensions (in) AlCrN Coating D d L r Part Number Stock 0.2500 (1/4) 1/4 1-1/8 3 0.015 - 0.020 AP4-2500.1125 0.3125 (5/16) 5/16 1-1/8 3 0.015 - 0.020 AP4-3125.1125 0.3750 (3/8) 3/8 1-1/8 3 0.015 - 0.020 AP4-3750.1125 0.5000 (1/2) 1/2 2 4 0.025 - 0.030 AP4-5000.2000 0.6250 (5/8) 5/8 2-1/4 5 0.030 - 0.035 AP4-6250.2250 0.7500 (3/4) 3/4 2-1/4 5 0.030 - 0.035 AP4-7500.2250 Cutting Diameter Tolerances Shank Diameter Tolerances Corner Radius Tolerances 1/8 - 1/4 = +0.0000/-0.001 2 1/8 - 3/8 = +0.0001/-0.0003 All = +0.0000/-0.0020 >1/4 - 3/8 = +0.0000/-0.0016 >3/8 - 1 = +0.0001 /-0.0004 >3/8 - 1 = +0.0000/-0.0020 SERIES AP4 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium I Alloy J AlCrN Priority tV Applicable Materials Symbol Descriptions Page 7 148 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
