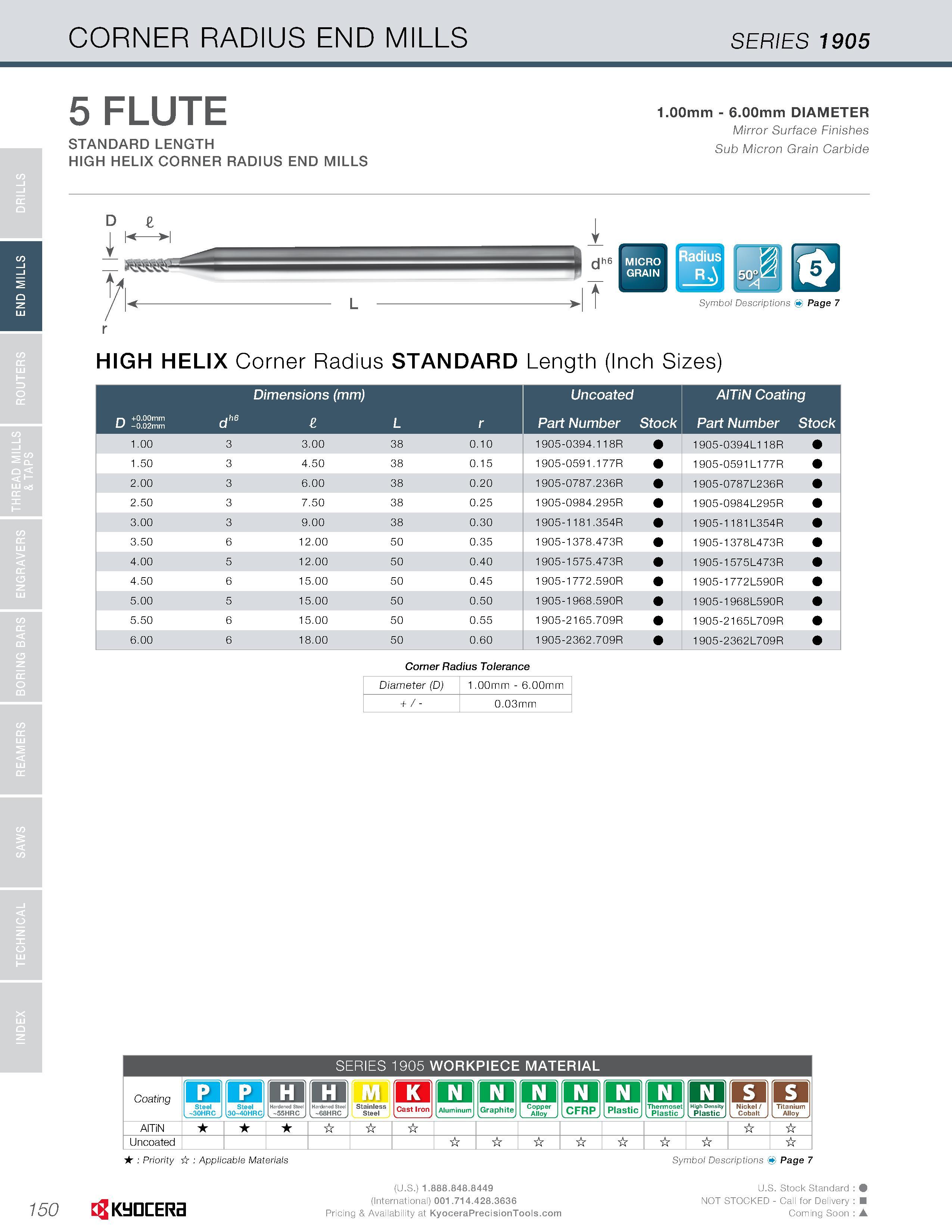

END MILLS CORNER RADIUS END MILLS SERIES 1905 5 FLUTE STANDARD LENGTH HIGH HELIX CORNER RADIUS END MILLS 1.00mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Radius J Symbol Descriptions Page 7 HIGH HELIX Corner Radius STANDARD Length (Inch Sizes) Dimensions (mm) Uncoated AITiN Coating PI +0.00mm Ls -0.02mm dhe L r Part Number Stock Part Number Stock 1.00 3 3.00 38 0.10 1905-0394.118R 1 905-0394L118R 1.50 3 4.50 38 0.15 1905-0591.177R 1 905-0591 L177R 2.00 3 6.00 38 0.20 1 905-0787.236R 1905-0787L236R 2.50 3 7.50 38 0.25 1 905-0984.295R 1905-0984L295R 3.00 3 9.00 38 0.30 1905-1181.354R 1905-1181 L354R 3.50 6 12.00 50 0.35 1905-1 378.473R 1 905-1 378L473R 4.00 5 12.00 50 0.40 1905-1 575.473R 1 905-1 575L473R 4.50 6 15.00 50 0.45 1905-1 772.590R 1 905-1 772L590R 5.00 5 15.00 50 0.50 1905-1 968.590R 1 905-1 968L590R 5.50 6 15.00 50 0.55 1905-2165.709R 1 905-2165L709R 6.00 6 18.00 50 0.60 1 905-2362.709R 1905-2362L709R Corner Radius Tolerance Diameter (D) 1.00mm - 6.00mm + /- 0.03mm SERIES 1905 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jl Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 150 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
