130 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.128

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 128 0130 ENG Lab2u

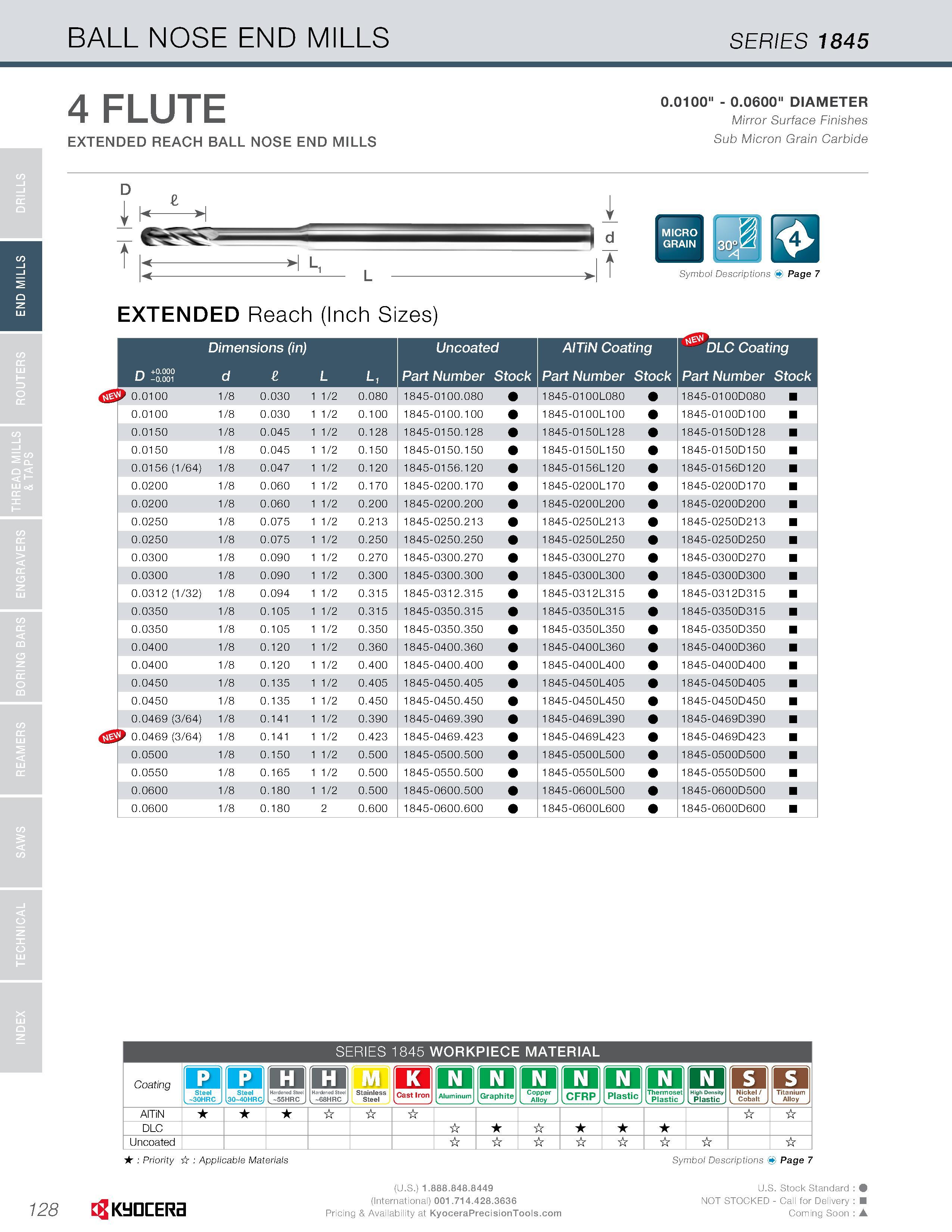

END MILLS BALL NOSE END MILLS SERIES 1845 128 4 FLUTE EXTENDED REACH BALL NOSE END MILLS 0.0100" - 0.0600" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i Jt Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) i-% +0.000 Lf -0.001 Dimensions (in) d L Li Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0100 1/8 0.030 1/2 0.080 1845-0100.080 1 845-01 00L080 1845-01 00D080 0.0100 1/8 0.030 1/2 0.100 1845-0100.100 1845-01 00L100 1845-01 00D100 0.0150 1/8 0.045 1/2 0.128 1845-0150.128 1845-01 50L128 1845-01 50D128 0.0150 1/8 0.045 1/2 0.150 1845-0150.150 1845-01 50L150 1845-01 50D150 0.0156 (1/64) 1/8 0.047 1/2 0.120 1845-0156.120 1845-01 56L120 1845-01 56D120 0.0200 1/8 0.060 1/2 0.170 1845-0200.170 1845-0200L170 1845-0200D170 0.0200 1/8 0.060 1/2 0.200 1845-0200.200 1845-0200L200 1845-0200D200 0.0250 1/8 0.075 1/2 0.213 1845-0250.213 1845-0250L213 1845-0250D21 3 0.0250 1/8 0.075 1/2 0.250 1845-0250.250 1845-0250L250 1845-0250D250 0.0300 1/8 0.090 1/2 0.270 1845-0300.270 1845-0300L270 1845-0300D270 0.0300 1/8 0.090 1/2 0.300 1845-0300.300 1845-0300L300 1845-0300D300 0.0312 (1/32) 1/8 0.094 1/2 0.315 1845-0312.315 1845-0312L315 1845-031 2D31 5 0.0350 1/8 0.105 1/2 0.315 1845-0350.315 1845-0350L315 1845-0350D31 5 0.0350 1/8 0.105 1/2 0.350 1845-0350.350 1845-0350L350 1845-0350D350 0.0400 1/8 0.120 1/2 0.360 1845-0400.360 1845-0400L360 1845-0400D360 0.0400 1/8 0.120 1/2 0.400 1845-0400.400 1845-0400L400 1845-0400D400 0.0450 1/8 0.135 1/2 0.405 1845-0450.405 1845-0450L405 1845-0450D405 0.0450 1/8 0.135 1/2 0.450 1845-0450.450 1845-0450L450 1845-0450D450 0.0469 (3/64) 1/8 0.141 1/2 0.390 1845-0469.390 1845-0469L390 1845-0469D390 9 0.0469 (3/64) 1/8 0.141 1/2 0.423 1845-0469.423 1845-0469L423 1845-0469D423 0.0500 1/8 0.150 1/2 0.500 1845-0500.500 1845-0500L500 1845-0500D500 0.0550 1/8 0.165 1/2 0.500 1845-0550.500 1845-0550L500 1845-0550D500 0.0600 1/8 0.180 1/2 0.500 1845-0600.500 1845-0600L500 1845-0600D500 0.0600 1/8 0.180 2 0.600 1845-0600.600 1845-0600L600 1845-0600D600 SERIES 1845 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials CgKyDCERa Symbol Descriptions ( U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
