127 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.125

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 125 0127 ENG Lab2u

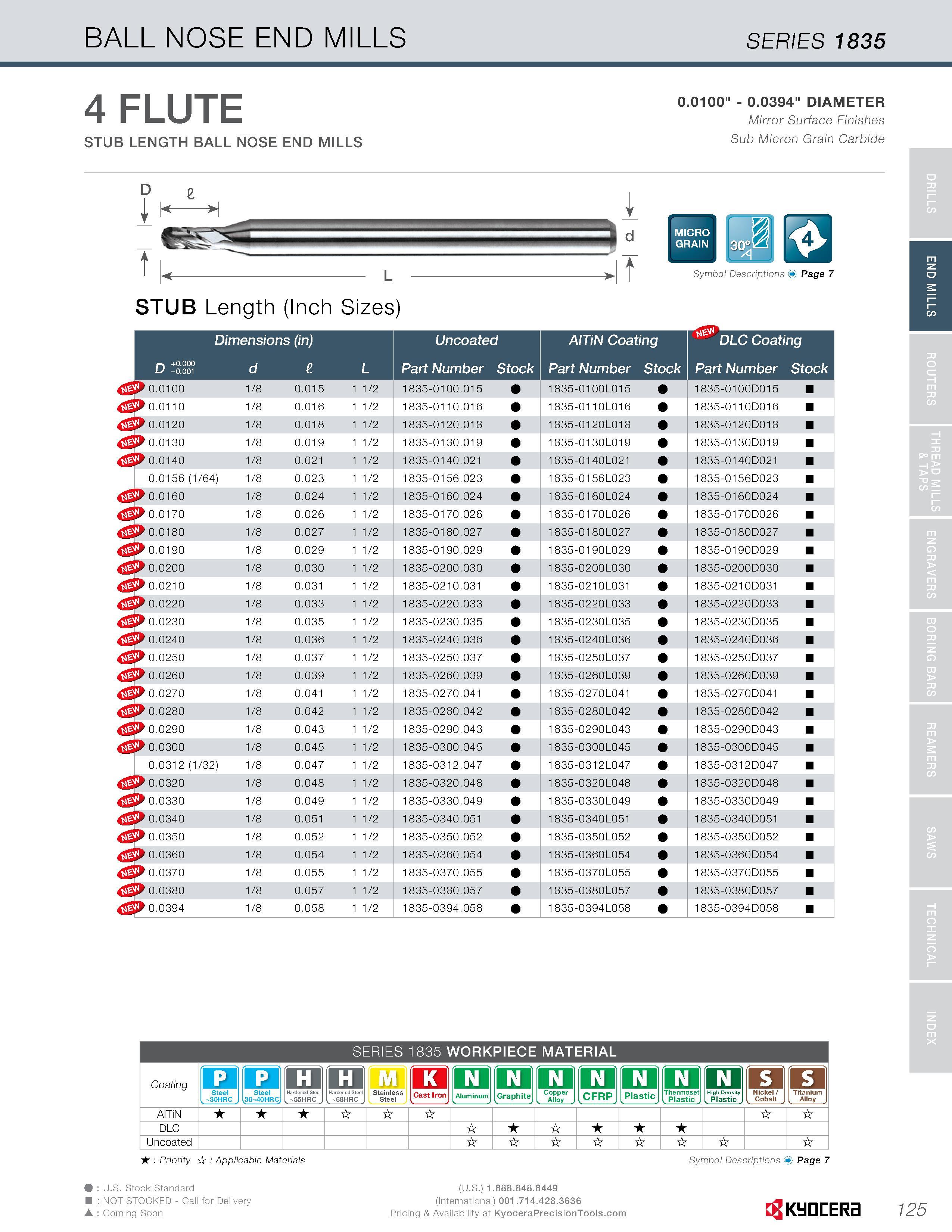

BALL NOSE END MILLS SERIES 1835 4 FLUTE STUB LENGTH BALL NOSE END MILLS 0.0100" - 0.0394" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Jl Symbol Descriptions Page 7 STUB Length (Inch Sizes) Dimensions (in) r-\ +0.000 _i n D -0.001 U L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 9 0.0100 1/8 0.015 1 1/2 1835-0100.015 1835-01 00L015 1 835-0100D015 9 0.0110 1/8 0.016 1 1/2 1835-0110.016 1835-0110L016 1 835-011 0D016 9 0.0120 1/8 0.018 1 1/2 1835-0120.018 1835-01 20L018 1 835-0120D018 9 0.0130 1/8 0.019 1 1/2 1835-0130.019 1835-01 30L019 1 835-0130D019 9 0.0140 1/8 0.021 1 1/2 1835-0140.021 1835-01 40L021 1 835-0140D021 0.0156 (1/64) 1/8 0.023 1 1/2 1835-0156.023 1835-01 56L023 1 835-0156D023 0.0160 1/8 0.024 1 1/2 1835-0160.024 1835-01 60L024 1 835-0160D024 0.0170 1/8 0.026 1 1/2 1835-0170.026 1835-01 70L026 1 835-0170D026 0.0180 1/8 0.027 1 1/2 1835-0180.027 1835-01 80L027 1 835-0180D027 0.0190 1/8 0.029 1 1/2 1835-0190.029 1835-01 90L029 1 835-0190D029 0.0200 1/8 0.030 1 1/2 1835-0200.030 1835-0200L030 1835-0200D030 0.0210 1/8 0.031 1 1/2 1835-0210.031 1835-0210L031 1 835-021 0D031 0.0220 1/8 0.033 1 1/2 1835-0220.033 1835-0220L033 1835-0220D033 0.0230 1/8 0.035 1 1/2 1835-0230.035 1835-0230L035 1835-0230D035 0.0240 1/8 0.036 1 1/2 1835-0240.036 1835-0240L036 1835-0240D036 0.0250 1/8 0.037 1 1/2 1835-0250.037 1835-0250L037 1835-0250D037 0.0260 1/8 0.039 1 1/2 1835-0260.039 1835-0260L039 1835-0260D039 0.0270 1/8 0.041 1 1/2 1835-0270.041 1835-0270L041 1835-0270D041 0.0280 1/8 0.042 1 1/2 1835-0280.042 1835-0280L042 1835-0280D042 0.0290 1/8 0.043 1 1/2 1835-0290.043 1835-0290L043 1835-0290D043 0.0300 1/8 0.045 1 1/2 1835-0300.045 1835-0300L045 1835-0300D045 0.0312 (1/32) 1/8 0.047 1 1/2 1835-0312.047 1835-0312L047 1 835-031 2D047 0.0320 1/8 0.048 1 1/2 1835-0320.048 1835-0320L048 1835-0320D048 0.0330 1/8 0.049 1 1/2 1835-0330.049 1835-0330L049 1835-0330D049 0.0340 1/8 0.051 1 1/2 1835-0340.051 1835-0340L051 1835-0340D051 0.0350 1/8 0.052 1 1/2 1835-0350.052 1835-0350L052 1835-0350D052 0.0360 1/8 0.054 1 1/2 1835-0360.054 1835-0360L054 1835-0360D054 0.0370 1/8 0.055 1 1/2 1835-0370.055 1835-0370L055 1835-0370D055 0.0380 1/8 0.057 1 1/2 1835-0380.057 1835-0380L057 1835-0380D057 0.0394 1/8 0.058 1 1/2 1835-0394.058 1835-0394L058 1835-0394D058 SERIES 1835 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 125 END MILLS
