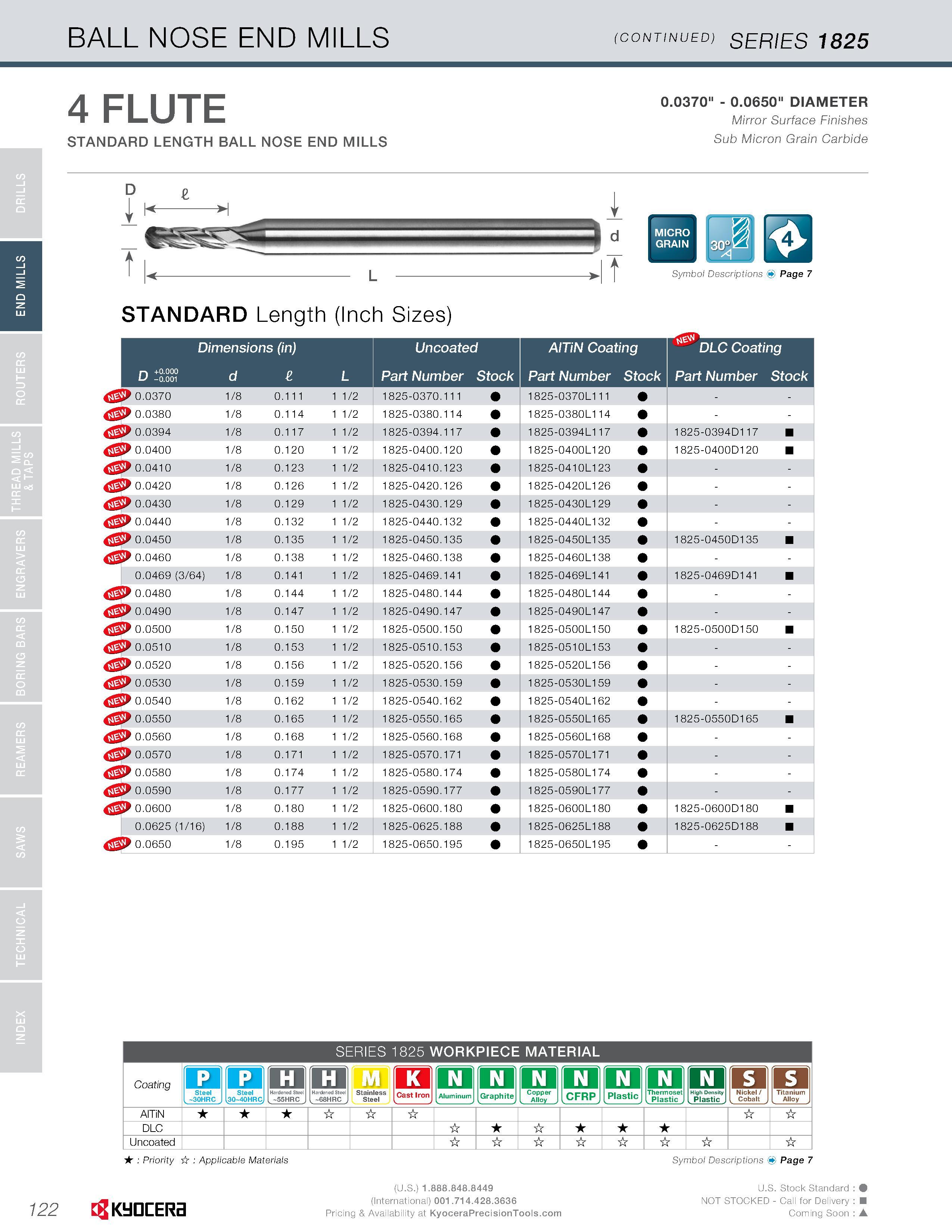

END MILLS BALL NOSE END MILLS (CONTINUED) SERIES 1825 122 4 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0370" - 0.0650" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide tL i -it Ji Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) +0.000 L/ -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock S> 0.0370 1/8 0.111 1 1/2 1825-0370.111 1 825-0370L111 - S> 0.0380 1/8 0.114 1 1/2 1825-0380.114 1825-0380L114 - S> 0.0394 1/8 0.117 1 1/2 1825-0394.117 1 825-0394L117 1 825-0394D117 S> 0.0400 1/8 0.120 1 1/2 1825-0400.120 1 825-0400L1 20 1 825-0400D1 20 S> 0.0410 1/8 0.123 1 1/2 1825-0410.123 1 825-0410L1 23 - S> 0.0420 1/8 0.126 1 1/2 1825-0420.126 1 825-0420L1 26 - S> 0.0430 1/8 0.129 1 1/2 1825-0430.129 1 825-0430L1 29 - S> 0.0440 1/8 0.132 1 1/2 1825-0440.132 1 825-0440L1 32 - S> 0.0450 1/8 0.135 1 1/2 1825-0450.135 1 825-0450L1 35 1 825-0450D1 35 S> 0.0460 1/8 0.138 1 1/2 1825-0460.138 1 825-0460L1 38 - 0.0469 (3/64) 1/8 0.141 1 1/2 1825-0469.141 1 825-0469L1 41 1 825-0469D1 41 0.0480 1/8 0.144 1 1/2 1825-0480.144 1 825-0480L1 44 - S> 0.0490 1/8 0.147 1 1/2 1825-0490.147 1 825-0490L1 47 - S> 0.0500 1/8 0.150 1 1/2 1825-0500.150 1 825-0500L1 50 1 825-0500D1 50 S> 0.0510 1/8 0.153 1 1/2 1825-0510.153 1 825-0510L1 53 - S> 0.0520 1/8 0.156 1 1/2 1825-0520.156 1 825-0520L1 56 - S> 0.0530 1/8 0.159 1 1/2 1825-0530.159 1 825-0530L1 59 - S> 0.0540 1/8 0.162 1 1/2 1825-0540.162 1 825-0540L1 62 - S> 0.0550 1/8 0.165 1 1/2 1825-0550.165 1 825-0550L1 65 1 825-0550D1 65 S> 0.0560 1/8 0.168 1 1/2 1825-0560.168 1 825-0560L1 68 - S> 0.0570 1/8 0.171 1 1/2 1825-0570.171 1 825-0570L1 71 - S> 0.0580 1/8 0.174 1 1/2 1825-0580.174 1 825-0580L1 74 - S> 0.0590 1/8 0.177 1 1/2 1825-0590.177 1 825-0590L1 77 - S> 0.0600 1/8 0.180 1 1/2 1825-0600.180 1 825-0600L1 80 1 825-0600D1 80 0.0625 (1/16) 1/8 0.188 1 1/2 1825-0625.188 1 825-0625L1 88 1 825-0625D1 88 S> 0.0650 1/8 0.195 1 1/2 1825-0650.195 1 825-0650L1 95 - SERIES 1825 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon :
