125 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.123

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 123 0125 ENG Lab2u

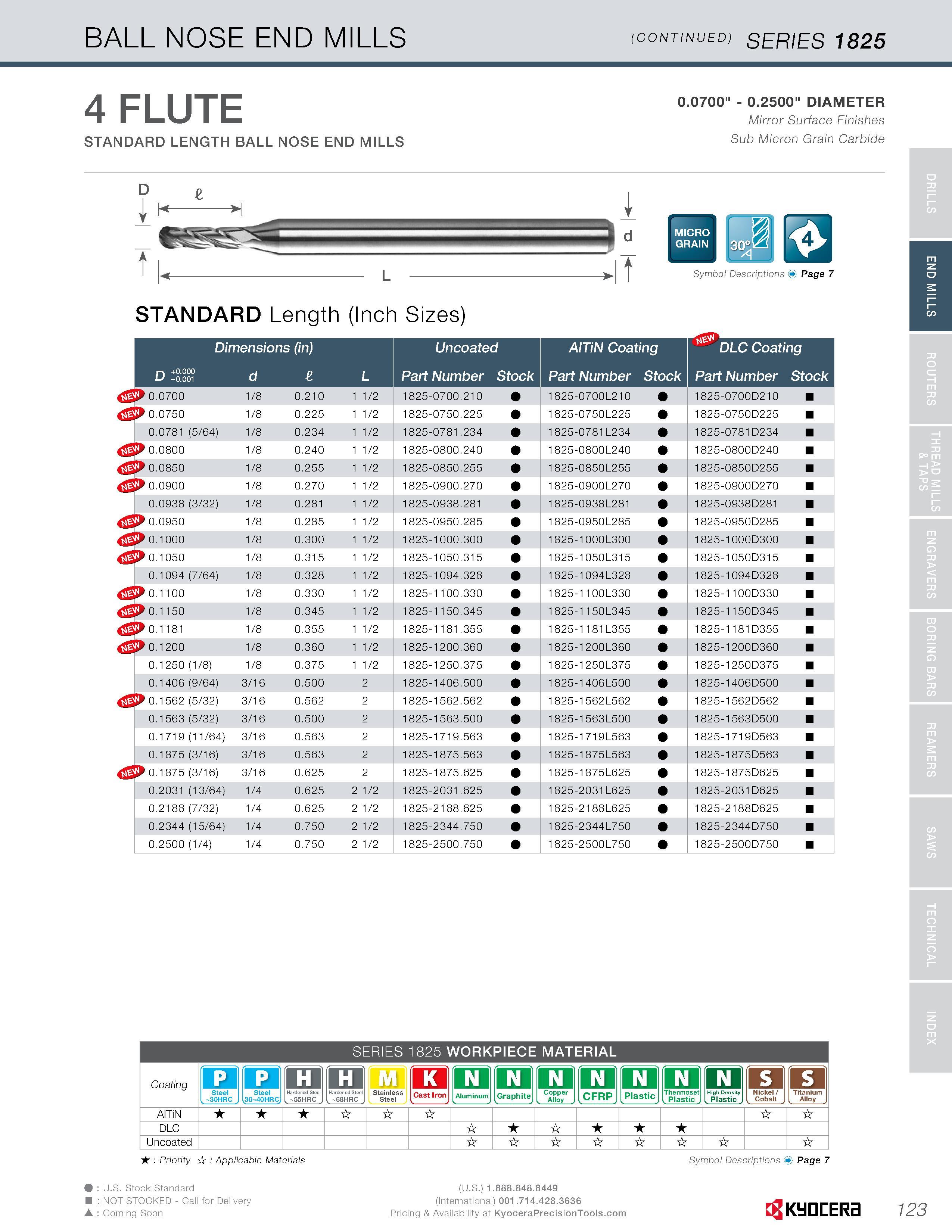

BALL NOSE END MILLS (CONTINUED) SERIES 1825 4 FLUTE STANDARD LENGTH BALL NOSE END MILLS 0.0700" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Jl Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 _i n lJ -0.001 Cl L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0700 1/8 0.210 1 1/2 1825-0700.210 1825-0700L210 1 825-0700D210 0.0750 1/8 0.225 1 1/2 1825-0750.225 1825-0750L225 1825-0750D225 0.0781 (5/64) 1/8 0.234 1 1/2 1825-0781.234 1825-0781L234 1 825-0781 D234 0.0800 1/8 0.240 1 1/2 1825-0800.240 1825-0800L240 1825-0800D240 0.0850 1/8 0.255 1 1/2 1825-0850.255 1825-0850L255 1825-0850D255 0.0900 1/8 0.270 1 1/2 1825-0900.270 1825-0900L270 1825-0900D270 0.0938 (3/32) 1/8 0.281 1 1/2 1825-0938.281 1825-0938L281 1825-0938D281 0.0950 1/8 0.285 1 1/2 1825-0950.285 1825-0950L285 1825-0950D285 9 0.1000 1/8 0.300 1 1/2 1825-1000.300 1 825-1 000L300 1 825-1 000D300 9 0.1050 1/8 0.315 1 1/2 1825-1050.315 1 825-1 050L315 1 825-1 050D315 0.1094 (7/64) 1/8 0.328 1 1/2 1825-1094.328 1 825-1 094L328 1 825-1 094D328 0.1100 1/8 0.330 1 1/2 1825-1100.330 1825-1100L330 1825-1100D330 9 0.1150 1/8 0.345 1 1/2 1825-1150.345 1825-1150L345 1825-1150D345 9 0.1181 1/8 0.355 1 1/2 1825-1181.355 1825-11 81 L355 1 825-1181 D355 0.1200 1/8 0.360 1 1/2 1825-1200.360 1 825-1 200L360 1 825-1 200D360 0.1250 (1/8) 1/8 0.375 1 1/2 1825-1250.375 1 825-1 250L375 1 825-1 250D375 0.1406 (9/64) 3/16 0.500 2 1825-1406.500 1 825-1 406L500 1 825-1 406D500 0.1562 (5/32) 3/16 0.562 2 1825-1562.562 1 825-1 562L562 1 825-1 562D562 0.1563 (5/32) 3/16 0.500 2 1825-1563.500 1 825-1 563L500 1 825-1 563D500 0.1719 (11/64) 3/16 0.563 2 1825-1719.563 1 825-1 719L563 1825-1 71 9D563 0.1875 (3/16) 3/16 0.563 2 1825-1875.563 1 825-1 875L563 1 825-1 875D563 0.1875 (3/16) 3/16 0.625 2 1825-1875.625 1 825-1 875L625 1 825-1 875D625 0.2031 (13/64) 1/4 0.625 2 1/2 1825-2031.625 1825-2031L625 1 825-2031 D625 0.2188 (7/32) 1/4 0.625 2 1/2 1825-2188.625 1825-21 88L625 1 825-2188D625 0.2344 (15/64) 1/4 0.750 2 1/2 1825-2344.750 1825-2344L750 1825-2344D750 0.2500 (1/4) 1/4 0.750 2 1/2 1825-2500.750 1825-2500L750 1825-2500D750 SERIES 1825 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . O . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 123 END MILLS
