83 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.81

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 81 0083 ENG Lab2u

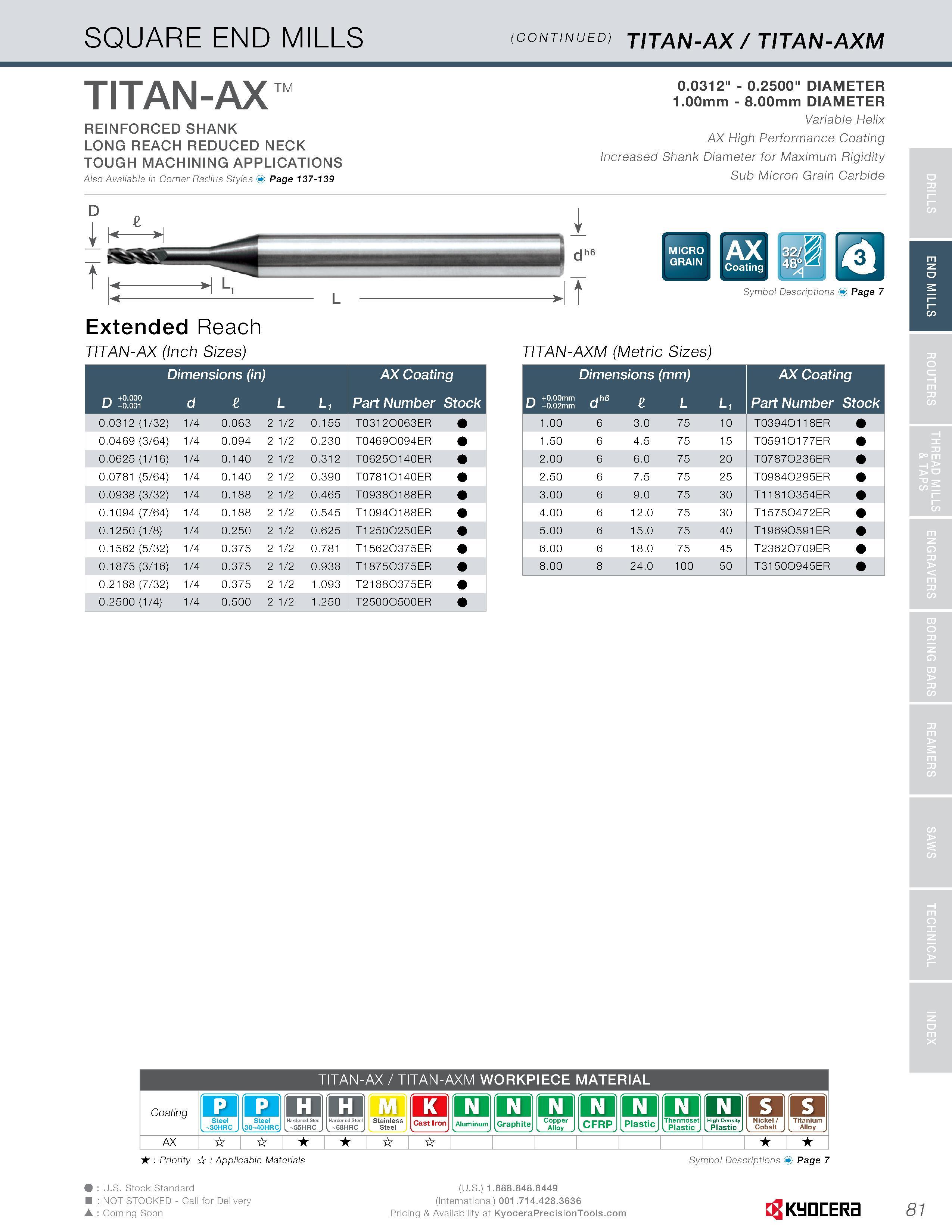

SQUARE END MILLS (continued) TITAN-AX / TITAN-AXM TITAN-AX TM REINFORCED SHANK LONG REACH REDUCED NECK TOUGH MACHINING APPLICATIONS Also Available in Corner Radius Styles Page 137-139 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide Extended Reach TITAN-AX (Inch Sizes) MICRO I AY GRAIN I an m Hl&l Symbol Descriptions Page 7 TITAN-AXM (Metric Sizes) Dimensions (in) AX Coating n +0.000 r i n i D -0.001 u L L, Part Number Stock Dimensions (mm) AX Coating n +0.00mm i/i 6 r, Lf -0.02mm U L Part Number Stock 0.0312 (1/32) 1/4 0.063 2 1/2 0.155 T03120063ER 0.0469 (3/64) 1/4 0.094 2 1/2 0.230 T04690094ER 0.0625 (1/16) 1/4 0.140 2 1/2 0.312 T06250140ER 0.0781 (5/64) 1/4 0.140 2 1/2 0.390 T07810140ER 0.0938 (3/32) 1/4 0.188 2 1/2 0.465 T09380188ER 0.1094 (7/64) 1/4 0.188 2 1/2 0.545 T10940188ER 0.1250 (1/8) 1/4 0.250 2 1/2 0.625 T12500250ER 0.1562 (5/32) 1/4 0.375 2 1/2 0.781 T15620375ER 0.1875 (3/16) 1/4 0.375 2 1/2 0.938 T18750375ER 0.2188 (7/32) 1/4 0.375 2 1/2 1.093 T21880375ER 0.2500 (1/4) 1/4 0.500 2 1/2 1.250 T25000500ER 1.00 6 3.0 75 10 T03940118ER 1.50 6 4.5 75 15 T05910177ER 2.00 6 6.0 75 20 T07870236ER 2.50 6 7.5 75 25 T09840295ER 3.00 6 9.0 75 30 T11810354ER 4.00 6 12.0 75 30 T15750472ER 5.00 6 15.0 75 40 T19690591ER 6.00 6 18.0 75 45 T23620709ER 8.00 8 24.0 100 50 T31500945ER TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminuin o Graphite Q Copper Alloy o CFRP o Plastic o Thermoset Plastic . o Plastic s s j Cast Ironj Nickel/ t Cobalt J Titanium I Alloy J AX Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 81 END MILLS
