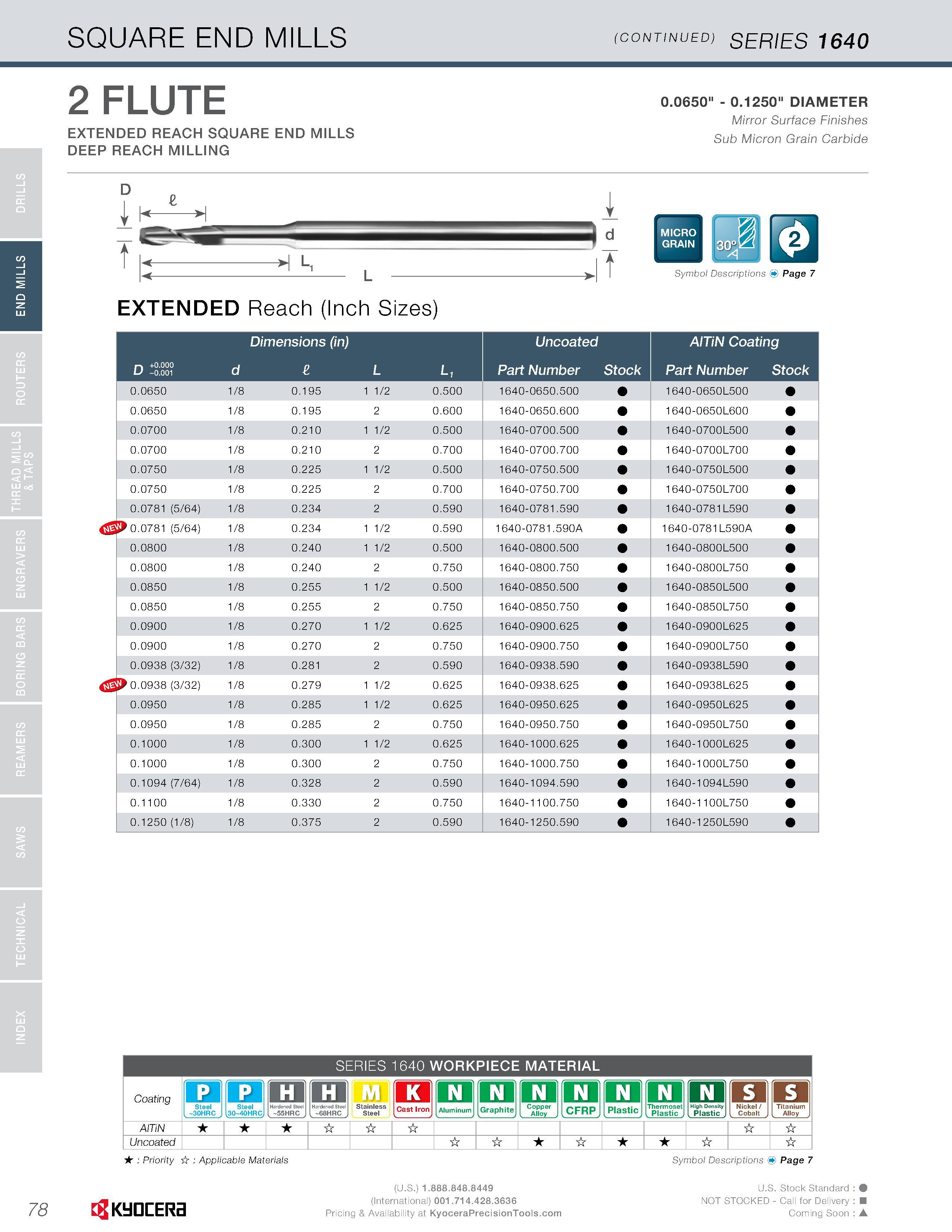

80 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.78

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 78 0080 ENG Lab2u

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1640 2 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.0650" - 0.1250" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Jt Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) r-k +0.000 U -0.001 d Dimensions (in) L Uncoated Part Number Stock AITiN Coating Part Number Stock 0.0650 1/8 0.195 1 1/2 0.500 1640-0650.500 1640-0650L500 0.0650 1/8 0.195 2 0.600 1640-0650.600 1640-0650L600 0.0700 1/8 0.210 1 1/2 0.500 1640-0700.500 1640-0700L500 0.0700 1/8 0.210 2 0.700 1640-0700.700 1640-0700L700 0.0750 1/8 0.225 1 1/2 0.500 1640-0750.500 1640-0750L500 0.0750 1/8 0.225 2 0.700 1640-0750.700 1640-0750L700 0.0781 (5/64) 1/8 0.234 2 0.590 1640-0781.590 1640-0781L590 9 0.0781 (5/64) 1/8 0.234 1 1/2 0.590 1 640-0781.590A 1 640-0781 L590A 0.0800 1/8 0.240 1 1/2 0.500 1640-0800.500 1640-0800L500 0.0800 1/8 0.240 2 0.750 1640-0800.750 1640-0800L750 0.0850 1/8 0.255 1 1/2 0.500 1640-0850.500 1640-0850L500 0.0850 1/8 0.255 2 0.750 1640-0850.750 1640-0850L750 0.0900 1/8 0.270 1 1/2 0.625 1640-0900.625 1640-0900L625 0.0900 1/8 0.270 2 0.750 1640-0900.750 1640-0900L750 0.0938 (3/32) 1/8 0.281 2 0.590 1640-0938.590 1640-0938L590 0.0938 (3/32) 1/8 0.279 1 1/2 0.625 1640-0938.625 1640-0938L625 0.0950 1/8 0.285 1 1/2 0.625 1640-0950.625 1640-0950L625 0.0950 1/8 0.285 2 0.750 1640-0950.750 1640-0950L750 0.1000 1/8 0.300 1 1/2 0.625 1640-1000.625 1640-1 000L625 0.1000 1/8 0.300 2 0.750 1640-1000.750 1640-1 000L750 0.1094 (7/64) 1/8 0.328 2 0.590 1640-1094.590 1640-1 094L590 0.1100 1/8 0.330 2 0.750 1640-1100.750 1640-1100L750 0.1250 (1/8) 1/8 0.375 2 0.590 1640-1250.590 1640-1 250L590 SERIES 1640 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC o Stainless Steel Kl o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic SI 'I si Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( 78 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
