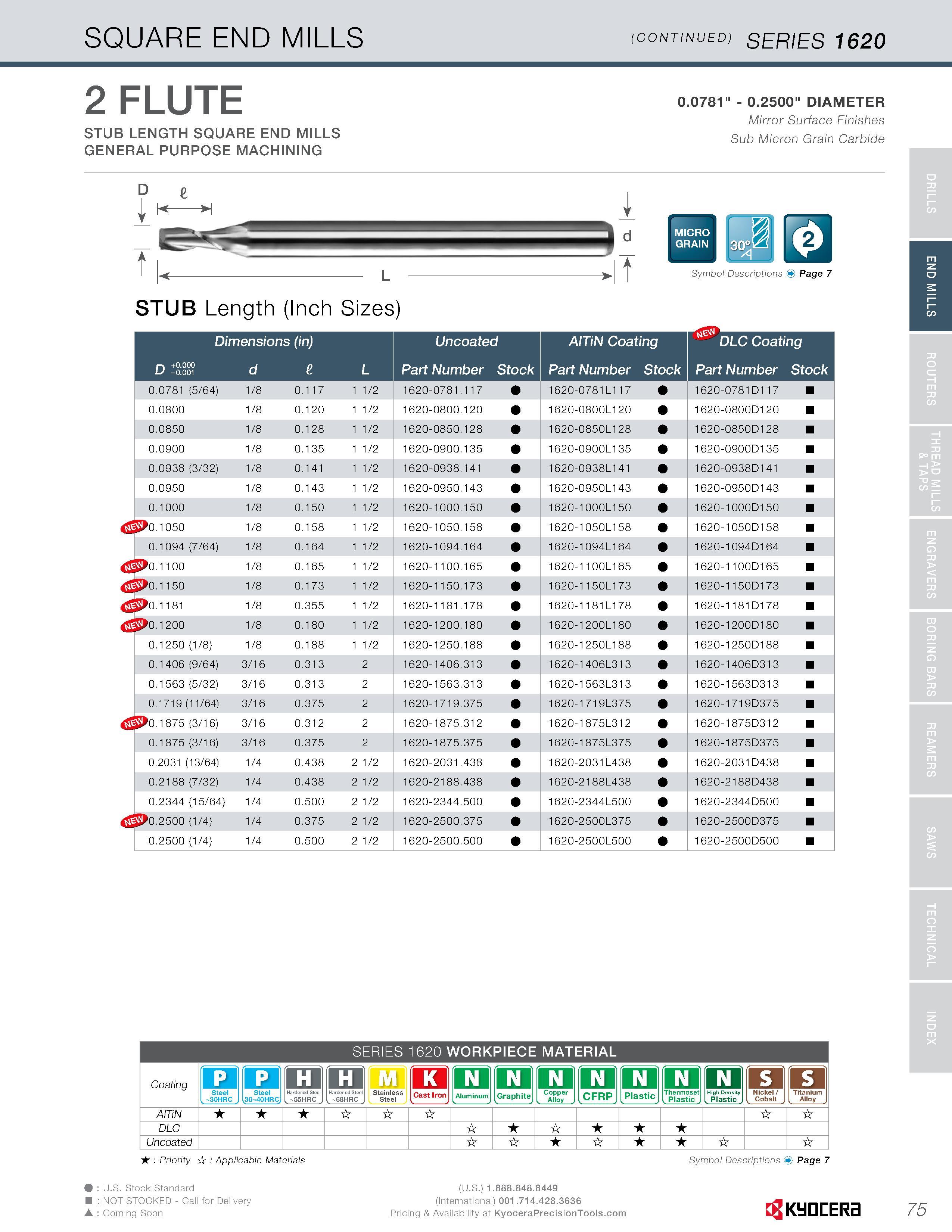

SQUARE END MILLS (CONTINUED) SERIES 1620 2 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0781" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STUB Length (Inch Sizes) i -it Symbol Descriptions Page 7 Dimensions (in) +0.000 _i n D -0.001 u L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0781 (5/64) 1/8 0.117 1 1/2 1620-0781.117 1620-0781 L11 7 1 620-0781 D117 0.0800 1/8 0.120 1 1/2 1620-0800.120 1620-0800L1 20 1 620-0800D1 20 0.0850 1/8 0.128 1 1/2 1620-0850.128 1620-0850L1 28 1 620-0850D1 28 0.0900 1/8 0.135 1 1/2 1620-0900.135 1620-0900L1 35 1 620-0900D1 35 0.0938 (3/32) 1/8 0.141 1 1/2 1620-0938.141 1620-0938L1 41 1 620-0938D1 41 0.0950 1/8 0.143 1 1/2 1620-0950.143 1620-0950L1 43 1 620-0950D1 43 0.1000 1/8 0.150 1 1/2 1620-1000.150 1620-1 000L1 50 1 620-1 000D1 50 Sl>0.1050 1/8 0.158 1 1/2 1620-1050.158 1620-1 050L1 58 1 620-1 050D1 58 0.1094 (7/64) 1/8 0.164 1 1/2 1620-1094.164 1620-1 094L1 64 1 620-1 094D1 64 S>0.1100 1/8 0.165 1 1/2 1620-1100.165 1620-1100L165 1620-1100D165 0.1150 1/8 0.173 1 1/2 1620-1150.173 1620-1150L173 1620-1150D173 S>0.1181 1/8 0.355 1 1/2 1620-1181.178 1620-1181L178 1 620-1181 D1 78 SJ O.1200 1/8 0.180 1 1/2 1620-1200.180 1620-1 200L1 80 1 620-1 200D1 80 0.1250 (1/8) 1/8 0.188 1 1/2 1620-1250.188 1620-1 250L1 88 1 620-1 250D1 88 0.1406 (9/64) 3/16 0.313 2 1620-1406.313 1620-1 406L31 3 1 620-1 406D31 3 0.1563 (5/32) 3/16 0.313 2 1620-1563.313 1620-1 563L31 3 1 620-1 563D31 3 0.1719 (11/64) 3/16 0.375 2 1620-1719.375 1620-1 71 9L375 1620-1 71 9D375 SJ>0.1875 (3/16) 3/16 0.312 2 1620-1875.312 1620-1 875L31 2 1 620-1 875D31 2 0.1875 (3/16) 3/16 0.375 2 1620-1875.375 1620-1 875L375 1 620-1 875D375 0.2031 (13/64) 1/4 0.438 2 1/2 1620-2031.438 1620-2031 L438 1 620-2031 D438 0.2188 (7/32) 1/4 0.438 2 1/2 1620-2188.438 1620-21 88L438 1 620-2188D438 0.2344 (15/64) 1/4 0.500 2 1/2 1620-2344.500 1620-2344L500 1620-2344D500 Sj>0.2500 (1/4) 1/4 0.375 2 1/2 1620-2500.375 1620-2500L375 1620-2500D375 0.2500 (1/4) 1/4 0.500 2 1/2 1620-2500.500 1620-2500L500 1620-2500D500 SERIES 1620 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 75 END MILLS
