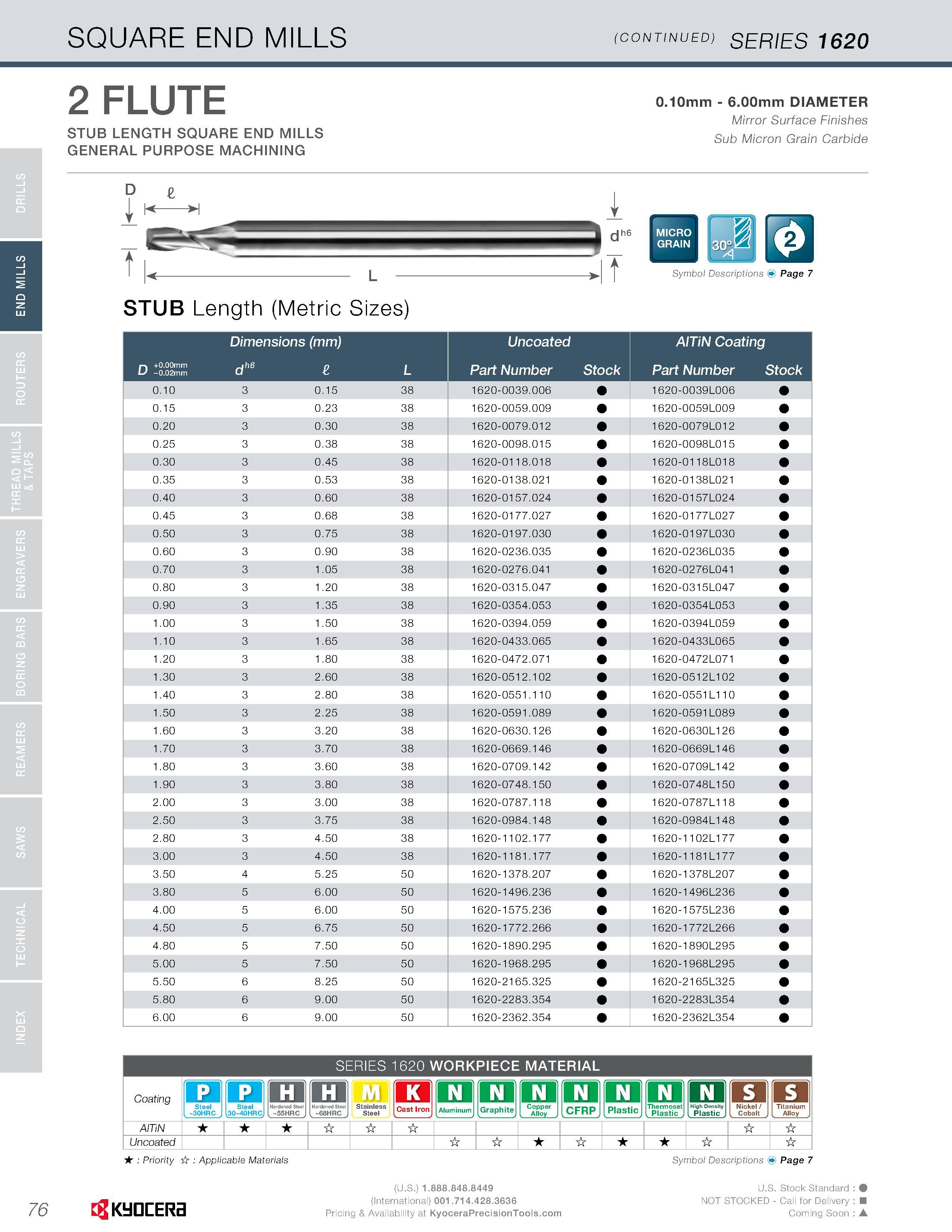

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1620 2 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i Jj dh6 Ji T It L >1 t Symbol Descriptions Page 7 L_ STUB Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating +0.00mm _ 0 n i U -0.02mm U L Part Number Stock Part Number Stock 0.10 3 0.15 38 1620-0039.006 1620-0039L006 0.15 3 0.23 38 1620-0059.009 1620-0059L009 0.20 3 0.30 38 1620-0079.012 1620-0079L012 0.25 3 0.38 38 1620-0098.015 1620-0098L015 0.30 3 0.45 38 1620-0118.018 1620-0118L018 0.35 3 0.53 38 1620-0138.021 1620-0138L021 0.40 3 0.60 38 1620-0157.024 1620-01 57L024 0.45 3 0.68 38 1620-0177.027 1620-01 77L027 0.50 3 0.75 38 1620-0197.030 1620-01 97L030 0.60 3 0.90 38 1620-0236.035 1620-0236L035 0.70 3 1.05 38 1620-0276.041 1620-0276L041 0.80 3 1.20 38 1620-0315.047 1620-0315L047 0.90 3 1.35 38 1620-0354.053 1620-0354L053 1.00 3 1.50 38 1620-0394.059 1620-0394L059 1.10 3 1.65 38 1620-0433.065 1620-0433L065 1.20 3 1.80 38 1620-0472.071 1620-0472L071 1.30 3 2.60 38 1620-0512.102 1620-0512L102 1.40 3 2.80 38 1620-0551.110 1620-0551 L110 1.50 3 2.25 38 1620-0591.089 1620-0591 L089 1.60 3 3.20 38 1620-0630.126 1620-0630L126 1.70 3 3.70 38 1620-0669.146 1620-0669L146 1.80 3 3.60 38 1620-0709.142 1620-0709L142 1.90 3 3.80 38 1620-0748.150 1620-0748L1 50 2.00 3 3.00 38 1620-0787.118 1620-0787L118 2.50 3 3.75 38 1620-0984.148 1620-0984L1 48 2.80 3 4.50 38 1620-1102.177 1620-1102L1 77 3.00 3 4.50 38 1620-1181.177 1620-1181 L1 77 3.50 4 5.25 50 1620-1378.207 1 620-1 378L207 3.80 5 6.00 50 1620-1496.236 1 620-1 496L236 4.00 5 6.00 50 1620-1575.236 1 620-1 575L236 4.50 5 6.75 50 1620-1772.266 1 620-1 772L266 4.80 5 7.50 50 1620-1890.295 1 620-1 890L295 5.00 5 7.50 50 1620-1968.295 1 620-1 968L295 5.50 6 8.25 50 1620-2165.325 1620-21 65L325 5.80 6 9.00 50 1620-2283.354 1620-2283L354 6.00 6 9.00 50 1620-2362.354 1620-2362L354 SERIES 1620 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 76 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
