79 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.77

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 77 0079 ENG Lab2u

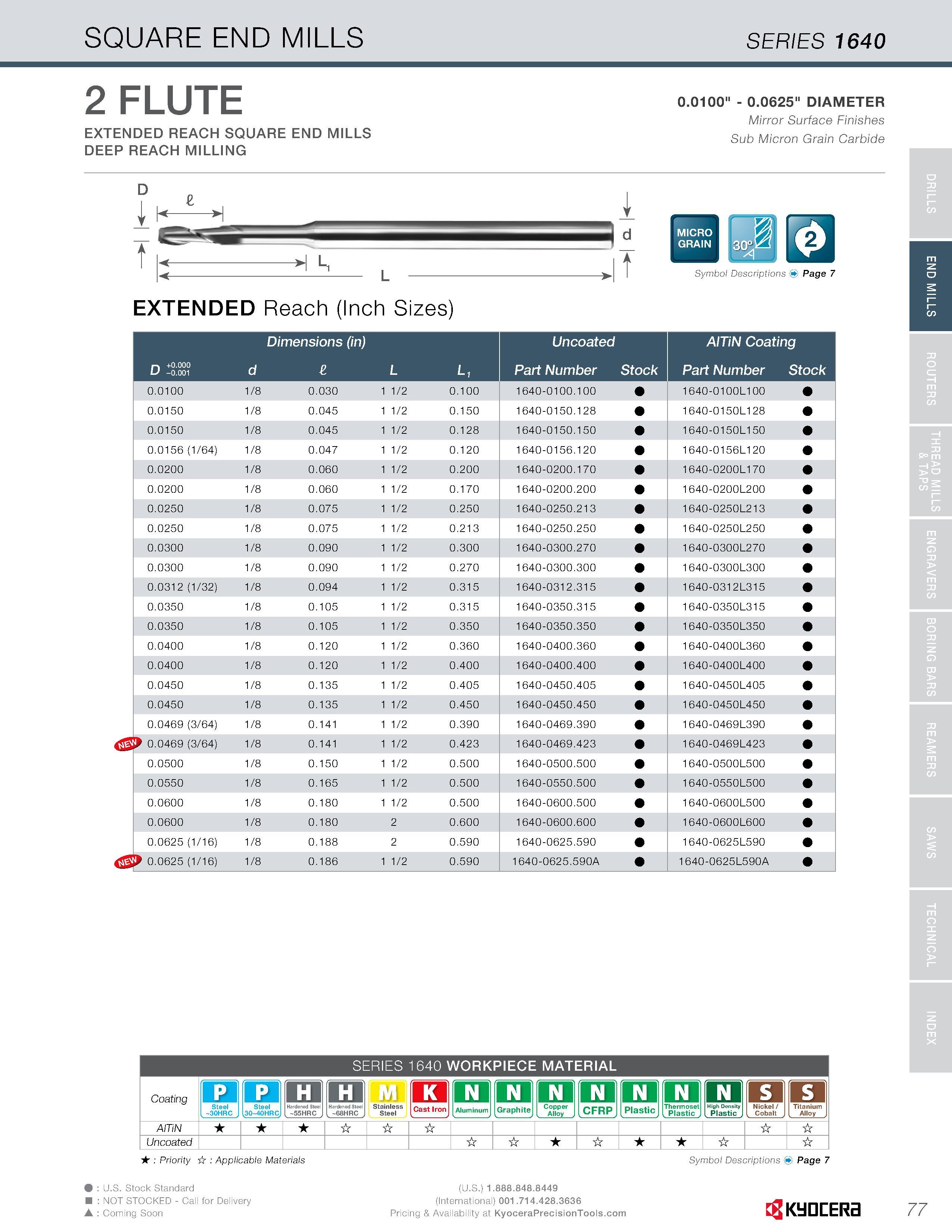

SQUARE END MILLS SERIES 1640 2 FLUTE EXTENDED REACH SQUARE END MILLS DEEP REACH MILLING 0.0100" - 0.0625" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Jt M Symbol Descriptions Page 7 EXTENDED Reach (Inch Sizes) Dimensions (in) Uncoated AITiN Coating r-k +0.000 U -0.001 d L Lt Part Number Stock Part Number Stock 0.0100 1/8 0.030 1 1/2 0.100 1640-0100.100 1640-0100L100 0.0150 1/8 0.045 1 1/2 0.150 1640-0150.128 1640-0150L128 0.0150 1/8 0.045 1 1/2 0.128 1640-0150.150 1640-0150L150 0.0156 (1/64) 1/8 0.047 1 1/2 0.120 1640-0156.120 1640-0156L120 0.0200 1/8 0.060 1 1/2 0.200 1640-0200.170 1640-0200L170 0.0200 1/8 0.060 1 1/2 0.170 1640-0200.200 1640-0200L200 0.0250 1/8 0.075 1 1/2 0.250 1640-0250.213 1640-0250L213 0.0250 1/8 0.075 1 1/2 0.213 1640-0250.250 1640-0250L250 0.0300 1/8 0.090 1 1/2 0.300 1640-0300.270 1640-0300L270 0.0300 1/8 0.090 1 1/2 0.270 1640-0300.300 1640-0300L300 0.0312 (1/32) 1/8 0.094 1 1/2 0.315 1640-0312.315 1640-031 2L315 0.0350 1/8 0.105 1 1/2 0.315 1640-0350.315 1640-0350L315 0.0350 1/8 0.105 1 1/2 0.350 1640-0350.350 1640-0350L350 0.0400 1/8 0.120 1 1/2 0.360 1640-0400.360 1640-0400L360 0.0400 1/8 0.120 1 1/2 0.400 1640-0400.400 1640-0400L400 0.0450 1/8 0.135 1 1/2 0.405 1640-0450.405 1640-0450L405 0.0450 1/8 0.135 1 1/2 0.450 1640-0450.450 1640-0450L450 0.0469 (3/64) 1/8 0.141 1 1/2 0.390 1640-0469.390 1640-0469L390 0.0469 (3/64) 1/8 0.141 1 1/2 0.423 1640-0469.423 1640-0469L423 0.0500 1/8 0.150 1 1/2 0.500 1640-0500.500 1640-0500L500 0.0550 1/8 0.165 1 1/2 0.500 1640-0550.500 1640-0550L500 0.0600 1/8 0.180 1 1/2 0.500 1640-0600.500 1640-0600L500 0.0600 1/8 0.180 2 0.600 1640-0600.600 1640-0600L600 0.0625 (1/16) 1/8 0.188 2 0.590 1640-0625.590 1640-0625L590 0.0625 (1/16) 1/8 0.186 1 1/2 0.590 1 640-0625.590A 1640-0625L590A SERIES 1640 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 77 END MILLS
