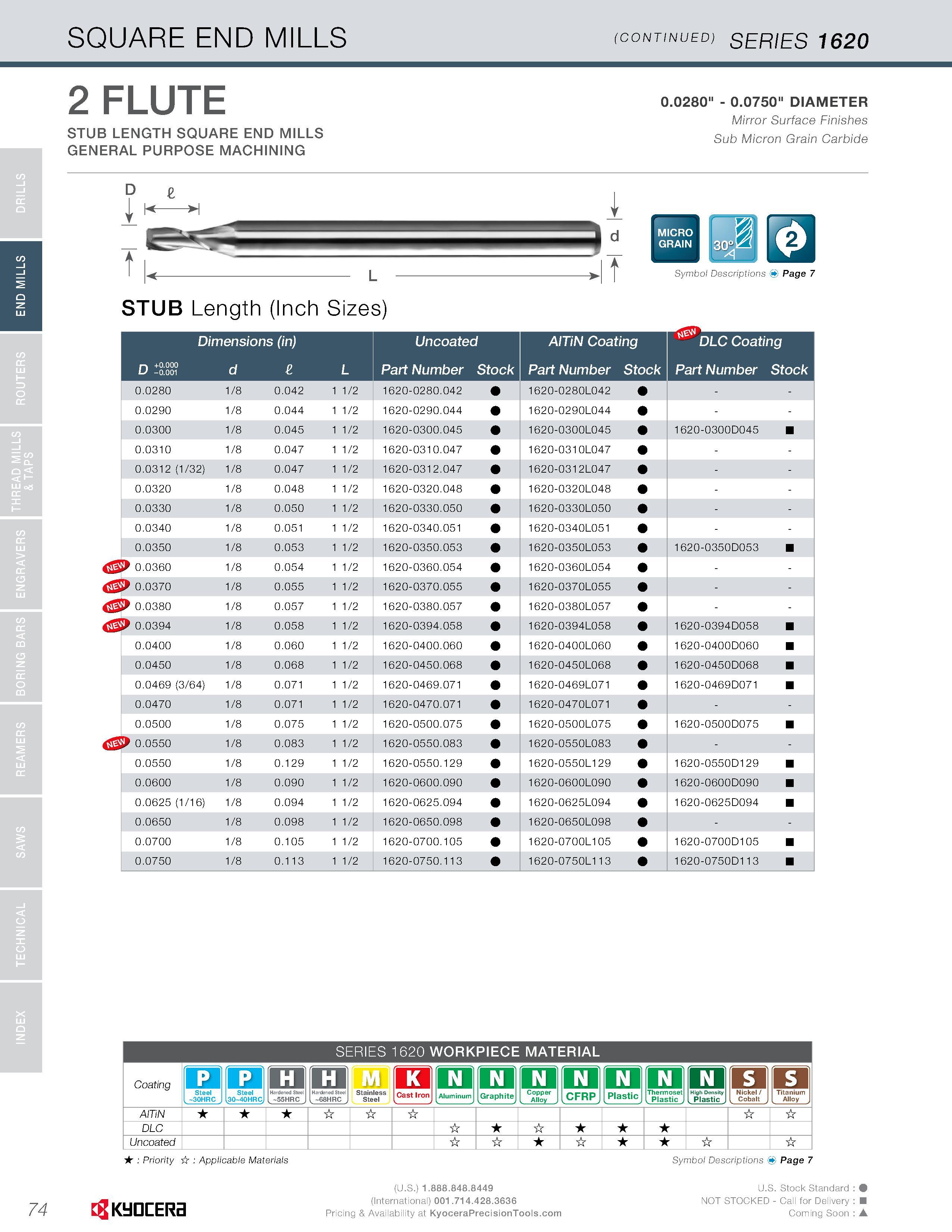

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1620 2 FLUTE STUB LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0280" - 0.0750" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STUB Length (Inch Sizes) i -it Symbol Descriptions Page 7 Dimensions (in) +0.000 n O -0.001 d L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0280 1/8 0.042 1 1/2 1620-0280.042 1620-0280L042 - 0.0290 1/8 0.044 1 1/2 1620-0290.044 1620-0290L044 - 0.0300 1/8 0.045 1 1/2 1620-0300.045 1620-0300L045 1620-0300D045 0.0310 1/8 0.047 1 1/2 1620-0310.047 1620-031 0L047 - 0.0312 (1/32) 1/8 0.047 1 1/2 1620-0312.047 1620-031 2L047 - 0.0320 1/8 0.048 1 1/2 1620-0320.048 1620-0320L048 - 0.0330 1/8 0.050 1 1/2 1620-0330.050 1620-0330L050 - 0.0340 1/8 0.051 1 1/2 1620-0340.051 1620-0340L051 - 0.0350 1/8 0.053 1 1/2 1620-0350.053 1620-0350L053 1620-0350D053 p 0.0360 1/8 0.054 1 1/2 1620-0360.054 1620-0360L054 - p 0.0370 1/8 0.055 1 1/2 1620-0370.055 1620-0370L055 - p 0.0380 1/8 0.057 1 1/2 1620-0380.057 1620-0380L057 - p 0.0394 1/8 0.058 1 1/2 1620-0394.058 1620-0394L058 1620-0394D058 0.0400 1/8 0.060 1 1/2 1620-0400.060 1620-0400L060 1620-0400D060 0.0450 1/8 0.068 1 1/2 1620-0450.068 1620-0450L068 1620-0450D068 0.0469 (3/64) 1/8 0.071 1 1/2 1620-0469.071 1620-0469L071 1 620-0469D071 0.0470 1/8 0.071 1 1/2 1620-0470.071 1620-0470L071 - 0.0500 1/8 0.075 1 1/2 1620-0500.075 1620-0500L075 1620-0500D075 p 0.0550 1/8 0.083 1 1/2 1620-0550.083 1620-0550L083 - 0.0550 1/8 0.129 1 1/2 1620-0550.129 1620-0550L1 29 1 620-0550D1 29 0.0600 1/8 0.090 1 1/2 1620-0600.090 1620-0600L090 1620-0600D090 0.0625 (1/16) 1/8 0.094 1 1/2 1620-0625.094 1620-0625L094 1620-0625D094 0.0650 1/8 0.098 1 1/2 1620-0650.098 1620-0650L098 - 0.0700 1/8 0.105 1 1/2 1620-0700.105 1620-0700L1 05 1 620-0700D1 05 0.0750 1/8 0.113 1 1/2 1620-0750.113 1620-0750L11 3 1 620-0750D11 3 SERIES 1620 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( 74 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
