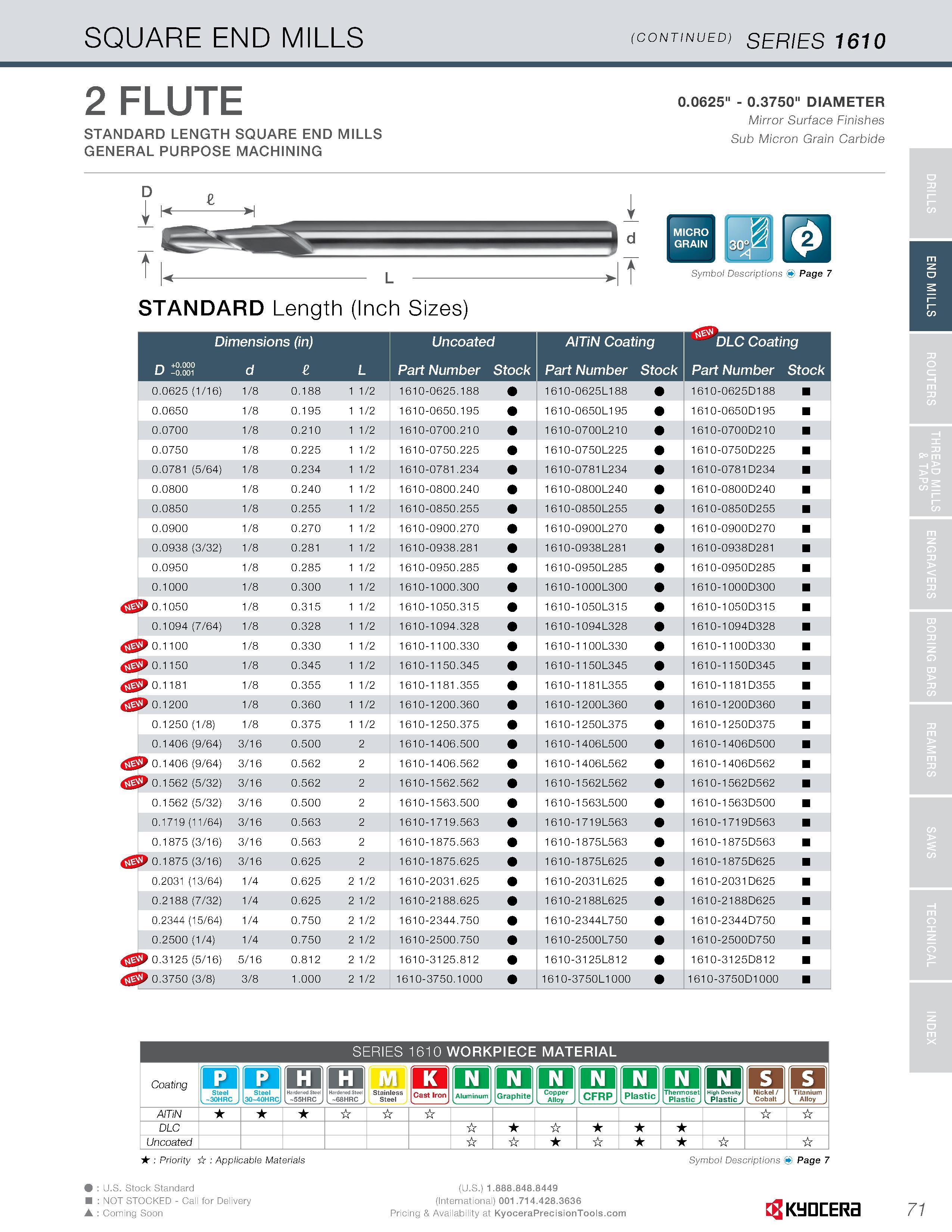

SQUARE END MILLS (CONTINUED) SERIES 1610 2 FLUTE STANDARD LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0625" - 0.3750" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide i -it Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 _i n O -0.001 u L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0625 (1/16) 1/8 0.188 1 1/2 1610-0625.188 1 610-0625L1 88 1 61 0-0625D1 88 0.0650 1/8 0.195 1 1/2 1610-0650.195 1 610-0650L1 95 1 61 0-0650D1 95 0.0700 1/8 0.210 1 1/2 1610-0700.210 1 610-0700L210 1 61 0-0700D210 0.0750 1/8 0.225 1 1/2 1610-0750.225 1 610-0750L225 1 61 0-0750D225 0.0781 (5/64) 1/8 0.234 1 1/2 1610-0781.234 1610-0781L234 161 0-0781 D234 0.0800 1/8 0.240 1 1/2 1610-0800.240 1 610-0800L240 1 61 0-0800D240 0.0850 1/8 0.255 1 1/2 1610-0850.255 1 610-0850L255 1 61 0-0850D255 0.0900 1/8 0.270 1 1/2 1610-0900.270 1 610-0900L270 1 61 0-0900D270 0.0938 (3/32) 1/8 0.281 1 1/2 1610-0938.281 1 610-0938L281 1 61 0-0938D281 0.0950 1/8 0.285 1 1/2 1610-0950.285 1 610-0950L285 1 61 0-0950D285 0.1000 1/8 0.300 1 1/2 1610-1000.300 1610-1000L300 1610-1000D300 0.1050 1/8 0.315 1 1/2 1610-1050.315 1610-1 050L315 1610-1 050D315 0.1094 (7/64) 1/8 0.328 1 1/2 1610-1094.328 1610-1094L328 1610-1094D328 > 0.1100 1/8 0.330 1 1/2 1610-1100.330 1610-1100L330 1610-1100D330 > 0.1150 1/8 0.345 1 1/2 1610-1150.345 1610-1150L345 1610-1150D345 0.1181 1/8 0.355 1 1/2 1610-1181.355 1610-1181 L355 1610-1181 D355 0.1200 1/8 0.360 1 1/2 1610-1200.360 1610-1200L360 1610-1200D360 0.1250 (1/8) 1/8 0.375 1 1/2 1610-1250.375 1610-1250L375 1610-1250D375 0.1406 (9/64) 3/16 0.500 2 1610-1406.500 1610-1406L500 1610-1406D500 0.1406 (9/64) 3/16 0.562 2 1610-1406.562 1610-1406L562 1610-1406D562 0.1562 (5/32) 3/16 0.562 2 1610-1562.562 1610-1562L562 1610-1562D562 0.1562 (5/32) 3/16 0.500 2 1610-1563.500 1610-1563L500 1610-1563D500 0.1719 (11/64) 3/16 0.563 2 1610-1719.563 1610-1719L563 1 61 0-1 71 9D563 0.1875 (3/16) 3/16 0.563 2 1610-1875.563 1610-1875L563 1610-1875D563 9 0.1875 (3/16) 3/16 0.625 2 1610-1875.625 1610-1875L625 1610-1875D625 0.2031 (13/64) 1/4 0.625 2 1/2 1610-2031.625 1610-2031L625 161 0-2031 D625 0.2188 (7/32) 1/4 0.625 2 1/2 1610-2188.625 1610-21 88L625 1 61 0-2188D625 0.2344 (15/64) 1/4 0.750 2 1/2 1610-2344.750 1610-2344L750 1 61 0-2344D750 0.2500 (1/4) 1/4 0.750 2 1/2 1610-2500.750 1610-2500L750 1 61 0-2500D750 0.3125 (5/16) 5/16 0.812 2 1/2 1610-3125.812 1610-31 25L812 1 61 0-3125D812 0.3750 (3/8) 3/8 1.000 2 1/2 1610-3750.1000 161 0-3750L1 000 1 61 0-3750D1 000 SERIES 1610 WORKPIECE MATERIAL Coating D Steel -30HRC Steel 30-40HRC EH Ha (dened Steel . -55HRC J I H I j'jJ Stainless Steel K Q Aluminum Graphite Q Copper . Alloy CFRP Q Plastic Thermoset . Plastic . ia . Plastic isl IS Hardened Steel -68HRC J J Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 71 END MILLS
