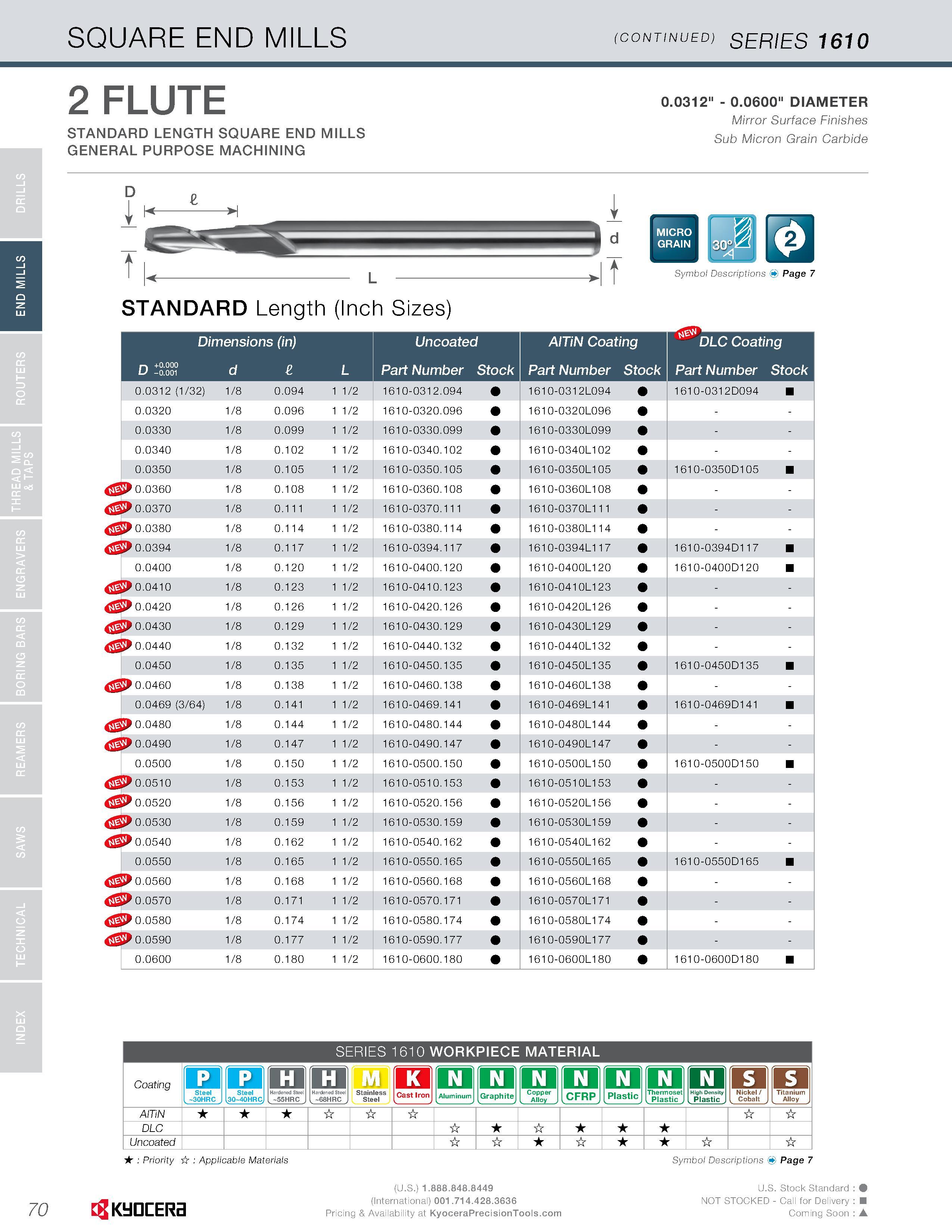

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1610 2 FLUTE STANDARD LENGTH SQUARE END MILLS GENERAL PURPOSE MACHINING 0.0312" - 0.0600" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D i tu -H I d It Symbol Descriptions Page 7 STANDARD Length (Inch Sizes) Dimensions (in) +0.000 _i n O -0.001 d L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0312 (1/32) 1/8 0.094 1 1/2 1610-0312.094 161 0-031 2L094 161 0-031 2D094 0.0320 1/8 0.096 1 1/2 1610-0320.096 1610-0320L096 - 0.0330 1/8 0.099 1 1/2 1610-0330.099 1610-0330L099 - 0.0340 1/8 0.102 1 1/2 1610-0340.102 161 0-0340L1 02 - 0.0350 1/8 0.105 1 1/2 1610-0350.105 161 0-0350L1 05 1 61 0-0350D1 05 0.0360 1/8 0.108 1 1/2 1610-0360.108 161 0-0360L1 08 - I>0.0370 1/8 0.111 1 1/2 1610-0370.111 161 0-0370L111 - 0.0380 1/8 0.114 1 1/2 1610-0380.114 161 0-0380L11 4 - 0.0394 1/8 0.117 1 1/2 1610-0394.117 161 0-0394L11 7 1 61 0-0394D11 7 0.0400 1/8 0.120 1 1/2 1610-0400.120 161 0-0400L1 20 1 61 0-0400D1 20 5 0.0410 1/8 0.123 1 1/2 1610-0410.123 161 0-041 0L1 23 - 9 0.0420 1/8 0.126 1 1/2 1610-0420.126 161 0-0420L1 26 - J> 0.0430 1/8 0.129 1 1/2 1610-0430.129 161 0-0430L1 29 - 0.0440 1/8 0.132 1 1/2 1610-0440.132 161 0-0440L1 32 - 0.0450 1/8 0.135 1 1/2 1610-0450.135 161 0-0450L1 35 1 61 0-0450D1 35 0.0460 1/8 0.138 1 1/2 1610-0460.138 161 0-0460L1 38 - 0.0469 (3/64) 1/8 0.141 1 1/2 1610-0469.141 161 0-0469L1 41 1 61 0-0469D1 41 0.0480 1/8 0.144 1 1/2 1610-0480.144 161 0-0480L1 44 - 0.0490 1/8 0.147 1 1/2 1610-0490.147 161 0-0490L1 47 - 0.0500 1/8 0.150 1 1/2 1610-0500.150 161 0-0500L1 50 1 61 0-0500D1 50 0.0510 1/8 0.153 1 1/2 1610-0510.153 161 0-051 0L1 53 - 0.0520 1/8 0.156 1 1/2 1610-0520.156 161 0-0520L1 56 - 0.0530 1/8 0.159 1 1/2 1610-0530.159 161 0-0530L1 59 - 0.0540 1/8 0.162 1 1/2 1610-0540.162 161 0-0540L1 62 - 0.0550 1/8 0.165 1 1/2 1610-0550.165 161 0-0550L1 65 1 61 0-0550D1 65 0.0560 1/8 0.168 1 1/2 1610-0560.168 161 0-0560L1 68 - 0.0570 1/8 0.171 1 1/2 1610-0570.171 161 0-0570L1 71 - 0.0580 1/8 0.174 1 1/2 1610-0580.174 161 0-0580L1 74 - 0.0590 1/8 0.177 1 1/2 1610-0590.177 161 0-0590L1 77 - 0.0600 1/8 0.180 1 1/2 1610-0600.180 161 0-0600L1 80 1 61 0-0600D1 80 SERIES 1 610 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I IS j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority Applicable Materials Symbol Descriptions ( 70 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
