69 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.67

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 67 0069 ENG Lab2u

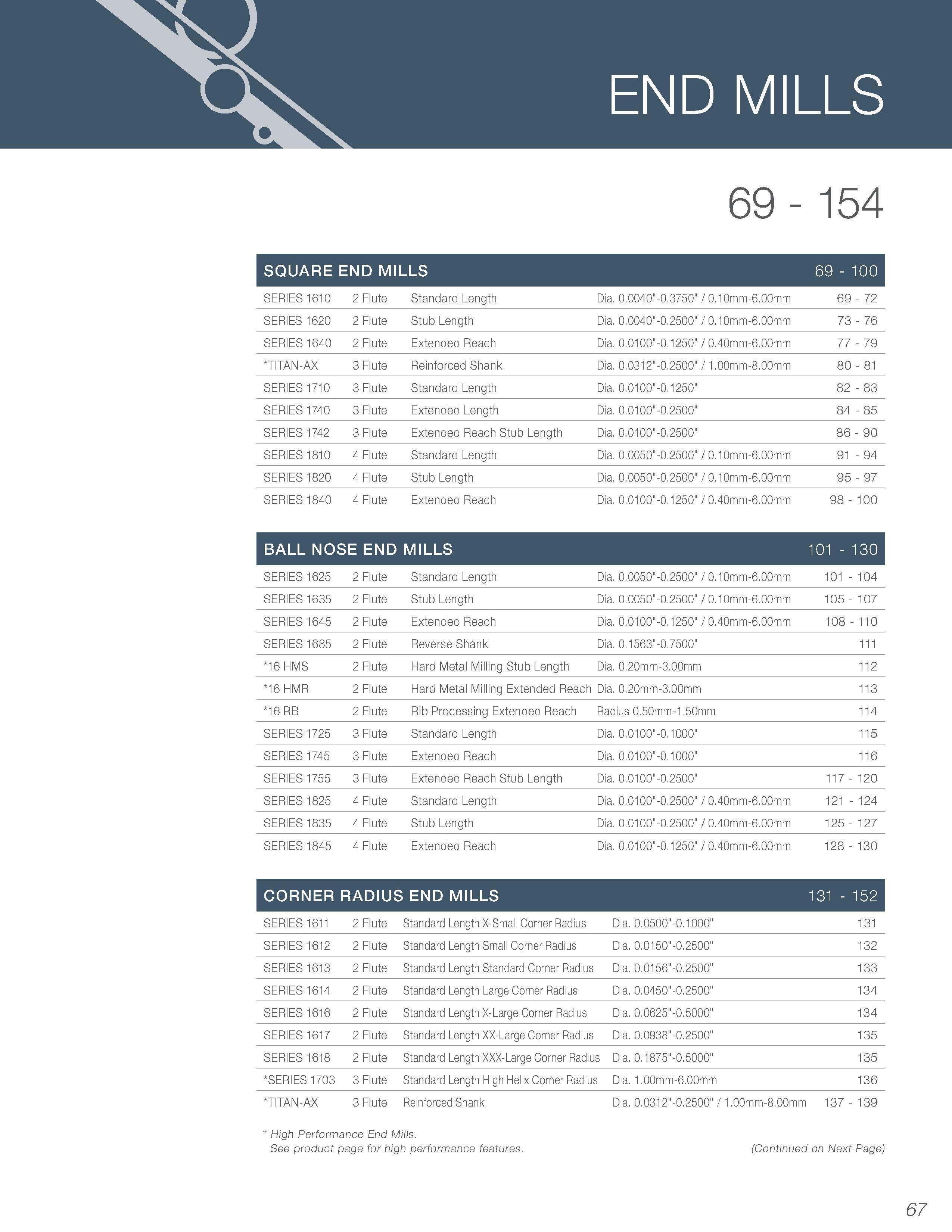

69 - 154 SQUARE END MILLS 69 - 100 SERIES 1610 2 Flute Standard Length Dia. 0.0040"-0.3750" / 0.10mm-6.00mm 69 - 72 SERIES 1620 2 Flute Stub Length Dia. 0.0040"-0.2500" / 0.10mm-6.00mm 73 - 76 SERIES 1640 2 Flute Extended Reach Dia. 0.0100"-0.1250" / 0.40mm-6.00mm 77 - 79 TITAN-AX 3 Flute Reinforced Shank Dia. 0.0312"-0.2500" / 1.00mm-8.00mm 80 - 81 SERIES 1710 3 Flute Standard Length Dia. 0.0100"-0.1250" 82 - 83 SERIES 1740 3 Flute Extended Length Dia. 0.0100"-0.2500" 84 - 85 SERIES 1742 3 Flute Extended Reach Stub Length Dia. 0.0100"-0.2500" 86 - 90 SERIES 1810 4 Flute Standard Length Dia. 0.0050"-0.2500" / 0.10mm-6.00mm 91 - 94 SERIES 1820 4 Flute Stub Length Dia. 0.0050"-0.2500" / 0.10mm-6.00mm 95 - 97 SERIES 1840 4 Flute Extended Reach Dia. 0.0100"-0.1250" / 0.40mm-6.00mm 98 - 100 BALL NOSE END MILLS 101 - 130 SERIES 1625 2 Flute Standard Length Dia. 0.0050"-0.2500" / 0.10mm-6.00mm 101 - 104 SERIES 1635 2 Flute Stub Length Dia. 0.0050"-0.2500" / 0.10mm-6.00mm 105 - 107 SERIES 1645 2 Flute Extended Reach Dia. 0.0100"-0.1250" / 0.40mm-6.00mm 108 - 110 SERIES 1685 2 Flute Reverse Shank Dia. 0.1563"-0.7500" 111 16 HMS 2 Flute Hard Metal Milling Stub Length Dia. 0.20mm-3.00mm 112 16 HMR 2 Flute Hard Metal Milling Extended Reach Dia. 0.20mm-3.00mm 113 16 RB 2 Flute Rib Processing Extended Reach Radius 0.50mm-1.50mm 114 SERIES 1725 3 Flute Standard Length Dia. 0.0100"-0.1000" 115 SERIES 1745 3 Flute Extended Reach Dia. 0.0100"-0.1000" 116 SERIES 1755 3 Flute Extended Reach Stub Length Dia. 0.0100"-0.2500" 117 - 120 SERIES 1825 4 Flute Standard Length Dia. 0.0100"-0.2500" / 0.40mm-6.00mm 121 - 124 SERIES 1835 4 Flute Stub Length Dia. 0.0100"-0.2500" / 0.40mm-6.00mm 125 - 127 SERIES 1845 4 Flute Extended Reach Dia. 0.0100"-0.1250" / 0.40mm-6.00mm 128 - 130 CORNER RADIUS END MILLS 131 - 152 SERIES 1611 2 Flute Standard Length X-Small Corner Radius Dia. 0.0500"-0.1000" 131 SERIES 1612 2 Flute Standard Length Small Corner Radius Dia. 0.0150"-0.2500" 132 SERIES 1613 2 Flute Standard Length Standard Corner Radius Dia. 0.0156"-0.2500" 133 SERIES 1614 2 Flute Standard Length Large Corner Radius Dia. 0.0450"-0.2500" 134 SERIES 1616 2 Flute Standard Length X-Large Corner Radius Dia. 0.0625"-0.5000" 134 SERIES 1617 2 Flute Standard Length XX-Large Corner Radius Dia. 0.0938"-0.2500" 135 SERIES 1618 2 Flute Standard Length XXX-Large Corner Radius Dia. 0.1875"-0.5000" 135 SERIES 1703 3 Flute Standard Length High Helix Corner Radius Dia. 1.00mm-6.00mm 136 TITAN-AX 3 Flute Reinforced Shank Dia. 0.0312"-0.2500" / 1.00mm-8.00mm 137 - 139 High Performance End Mills. See product page for high performance features. (Continued on Next Page) 67
