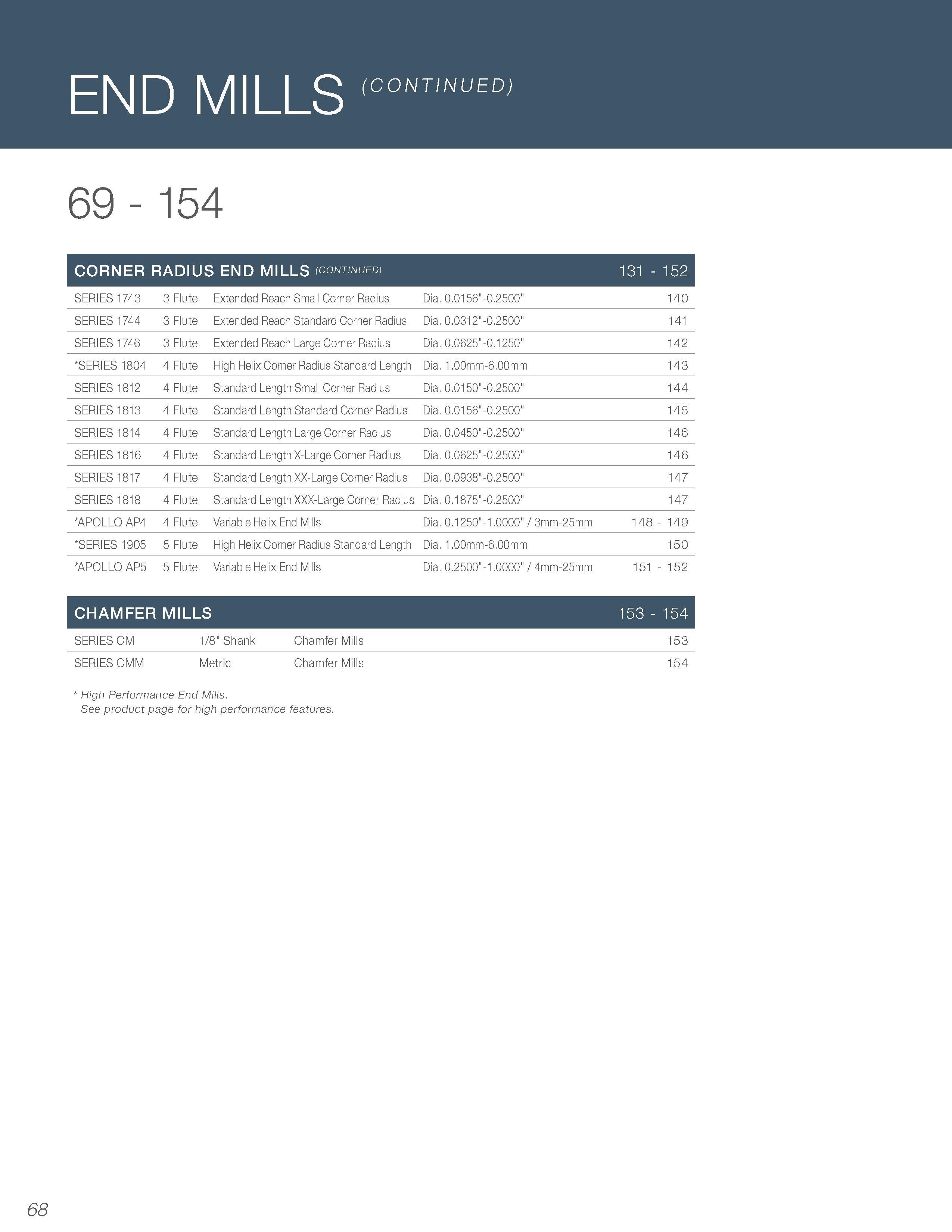

END MILLS (CONTINUED) 69 - 154 CORNER RADIUS END MILLS (continued) 131 - 152 SERIES 1743 3 Flute Extended Reach Small Corner Radius Dia. 0.0156"-0.2500" 140 SERIES 1744 3 Flute Extended Reach Standard Corner Radius Dia. 0.0312"-0.2500" 141 SERIES 1746 3 Flute Extended Reach Large Corner Radius Dia. 0.0625"-0.1250" 142 SERIES 1804 4 Flute High Helix Corner Radius Standard Length Dia. 1.00mm-6.00mm 143 SERIES 1812 4 Flute Standard Length Small Corner Radius Dia. 0.0150"-0.2500" 144 SERIES 1813 4 Flute Standard Length Standard Corner Radius Dia. 0.0156"-0.2500" 145 SERIES 1814 4 Flute Standard Length Large Corner Radius Dia. 0.0450"-0.2500" 146 SERIES 1816 4 Flute Standard Length X-Large Corner Radius Dia. 0.0625"-0.2500" 146 SERIES 1817 4 Flute Standard Length XX-Large Corner Radius Dia. 0.0938"-0.2500" 147 SERIES 1818 4 Flute Standard Length XXX-Large Corner Radius Di a. 0. 8 J 0. 2 cn O O 147 APOLLO AP4 4 Flute Variable Helix End Mills Dia. 0.1250"-1.0000" / 3mm-25mm 148 - 149 SERIES 1905 5 Flute High Helix Corner Radius Standard Length Dia. 1.00mm-6.00mm 150 APOLLO AP5 5 Flute Variable Helix End Mills Dia. 0.2500"-1.0000" / 4mm-25mm 151 - 152 CHAMFER MILLS 153 - 154 SERIES CM 1/8" Shank Chamfer Mills 153 SERIES CMM Metric Chamfer Mills 154 High Performance End Mills. See product page for high performance features. 68
