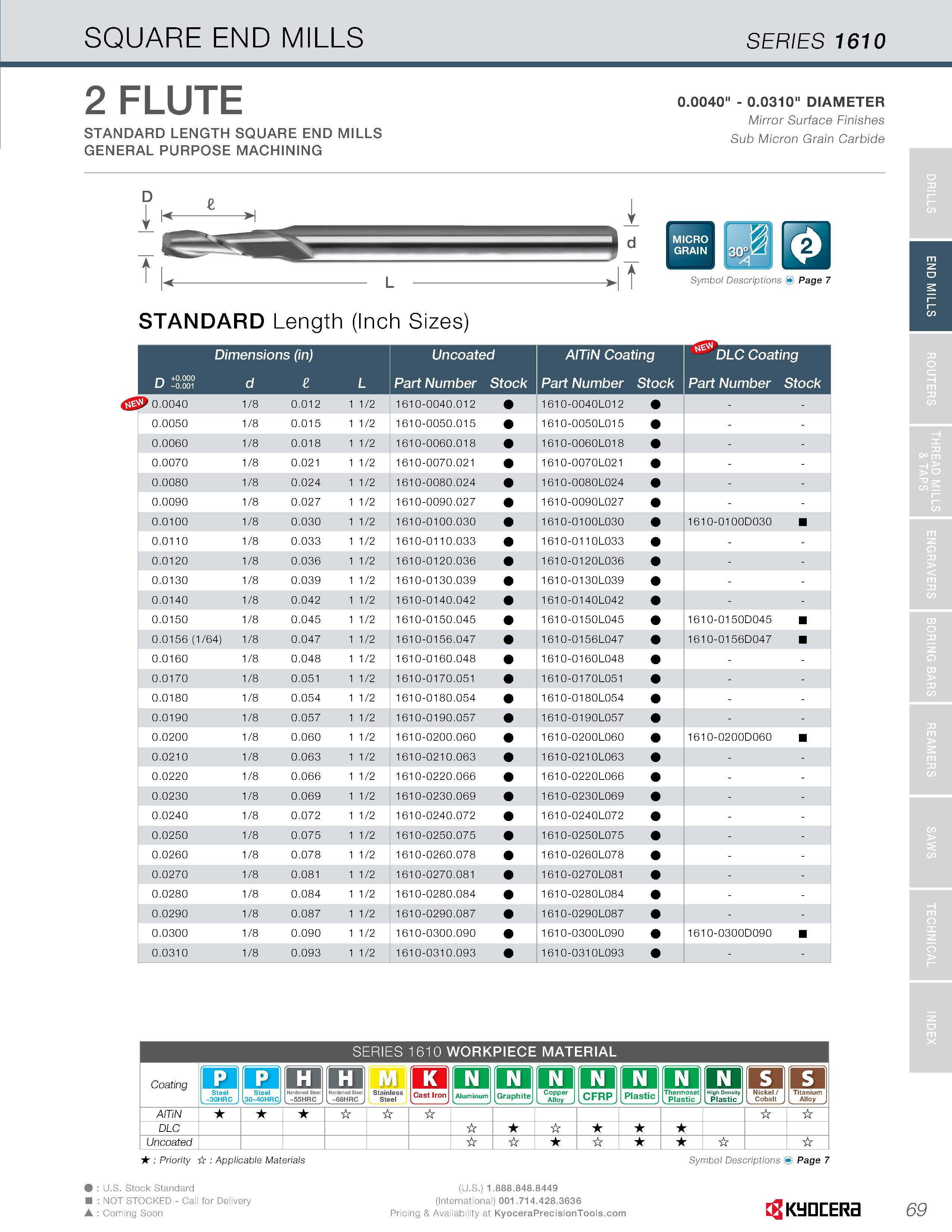

SQUARE END MILLS SERIES 1610 2 FLUTE STANDARD LENGTH S< GENERAL PURPOSE MACHINING 0.0040" - 0.0310" DIAMETER Mirror Surface Finishes STANDARD LENGTH SQUARE END MILLS Sub Micmn Grain Carbide STANDARD Length (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock 0.0040 1/8 0.012 1 1/2 1610-0040.012 1 61 0-0040L01 2 - 0.0050 1/8 0.015 1 1/2 1610-0050.015 1 61 0-0050L01 5 - 0.0060 1/8 0.018 1 1/2 1610-0060.018 1 61 0-0060L01 8 - 0.0070 1/8 0.021 1 1/2 1610-0070.021 1 61 0-0070L021 - 0.0080 1/8 0.024 1 1/2 1610-0080.024 1 61 0-0080L024 - 0.0090 1/8 0.027 1 1/2 1610-0090.027 1 61 0-0090L027 - 0.0100 1/8 0.030 1 1/2 1610-0100.030 1 61 0-0100L030 161 0-01 00D030 0.0110 1/8 0.033 1 1/2 1610-0110.033 161 0-0110L033 - 0.0120 1/8 0.036 1 1/2 1610-0120.036 1 61 0-0120L036 - 0.0130 1/8 0.039 1 1/2 1610-0130.039 1 61 0-0130L039 - 0.0140 1/8 0.042 1 1/2 1610-0140.042 1610-0140L042 - 0.0150 1/8 0.045 1 1/2 1610-0150.045 1 61 0-0150L045 161 0-01 50D045 0.0156 (1/64) 1/8 0.047 1 1/2 1610-0156.047 1 61 0-0156L047 161 0-01 56D047 0.0160 1/8 0.048 1 1/2 1610-0160.048 1 61 0-0160L048 - 0.0170 1/8 0.051 1 1/2 1610-0170.051 1610-0170L051 - 0.0180 1/8 0.054 1 1/2 1610-0180.054 1 61 0-0180L054 - 0.0190 1/8 0.057 1 1/2 1610-0190.057 1 61 0-0190L057 - 0.0200 1/8 0.060 1 1/2 1610-0200.060 1610-0200L060 1610-0200D060 0.0210 1/8 0.063 1 1/2 1610-0210.063 161 0-021 0L063 - 0.0220 1/8 0.066 1 1/2 1610-0220.066 1610-0220L066 - 0.0230 1/8 0.069 1 1/2 1610-0230.069 1610-0230L069 - 0.0240 1/8 0.072 1 1/2 1610-0240.072 1610-0240L072 - 0.0250 1/8 0.075 1 1/2 1610-0250.075 1610-0250L075 - 0.0260 1/8 0.078 1 1/2 1610-0260.078 1610-0260L078 - 0.0270 1/8 0.081 1 1/2 1610-0270.081 1610-0270L081 - 0.0280 1/8 0.084 1 1/2 1610-0280.084 1610-0280L084 - 0.0290 1/8 0.087 1 1/2 1610-0290.087 1610-0290L087 - 0.0300 1/8 0.090 1 1/2 1610-0300.090 1 61 0-0300L090 1610-0300D090 0.0310 1/8 0.093 1 1/2 1610-0310.093 161 0-031 0L093 - SERIES 1 610 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Q Hardened Steel . -55HRC EH Hardened Steel -68HRC Stainless Steel K Aluminum Q Graphite Copper . Alloy Q CFRP Plastic Q Thermoset Plastic . o . Plastic I s I 1 s 1 j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN DLC Uncoated it: Priority ir Applicable Materials U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon Symbol Descriptions Page 7 KyDIIERa 69 END MILLS
