74 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.72

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 72 0074 ENG Lab2u

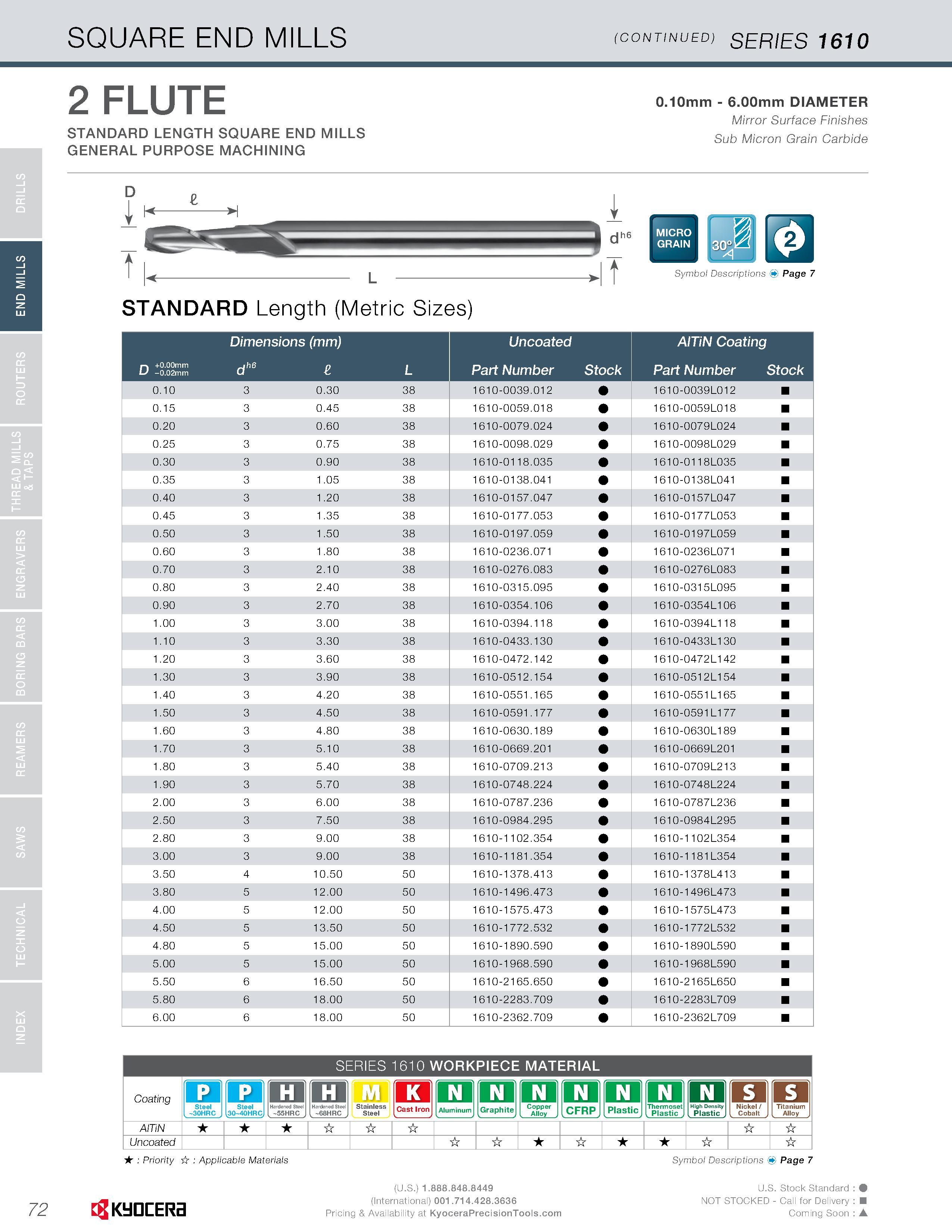

END MILLS SQUARE END MILLS (CONTINUED) SERIES 1610 2 FLUTE STANDARD LENGTH S< GENERAL PURPOSE MACHINING 0.10mm - 6.00mm DIAMETER Mirror Surface Finishes STANDARD LENGTH SQUARE END MILLS Sub Micmn Grain Carbide STANDARD Length (Metric Sizes) Dimensions (mm) Uncoated AITiN Coating PI +0.00mm LJ -0.02mm dh6 L Part Number Stock Part Number Stock 0.10 3 0.30 38 1610-0039.012 1610-0039L012 0.15 3 0.45 38 1610-0059.018 1610-0059L018 0.20 3 0.60 38 1610-0079.024 1610-0079L024 0.25 3 0.75 38 1610-0098.029 1610-0098L029 0.30 3 0.90 38 1610-0118.035 1610-011 8L035 0.35 3 1.05 38 1610-0138.041 1610-0138L041 0.40 3 1.20 38 1610-0157.047 1610-0157L047 0.45 3 1.35 38 1610-0177.053 1610-0177L053 0.50 3 1.50 38 1610-0197.059 1610-0197L059 0.60 3 1.80 38 1610-0236.071 1610-0236L071 0.70 3 2.10 38 1610-0276.083 1610-0276L083 0.80 3 2.40 38 1610-0315.095 1610-031 5L095 0.90 3 2.70 38 1610-0354.106 1610-0354L106 1.00 3 3.00 38 1610-0394.118 1610-0394L118 1.10 3 3.30 38 1610-0433.130 1610-0433L130 1.20 3 3.60 38 1610-0472.142 1610-0472L142 1.30 3 3.90 38 1610-0512.154 1610-051 2L154 1.40 3 4.20 38 1610-0551.165 1610-0551L165 1.50 3 4.50 38 1610-0591.177 1610-0591 L177 1.60 3 4.80 38 1610-0630.189 1610-0630L189 1.70 3 5.10 38 1610-0669.201 1610-0669L201 1.80 3 5.40 38 1610-0709.213 1610-0709L213 1.90 3 5.70 38 1610-0748.224 1610-0748L224 2.00 3 6.00 38 1610-0787.236 1610-0787L236 2.50 3 7.50 38 1610-0984.295 1610-0984L295 2.80 3 9.00 38 1610-1102.354 1610-1102L354 3.00 3 9.00 38 1610-1181.354 1610-1181L354 3.50 4 10.50 50 1610-1378.413 1610-1 378L413 3.80 5 12.00 50 1610-1496.473 1610-1 496L473 4.00 5 12.00 50 1610-1575.473 1610-1 575L473 4.50 5 13.50 50 1610-1772.532 1610-1 772L532 4.80 5 15.00 50 1610-1890.590 1610-1 890L590 5.00 5 15.00 50 1610-1968.590 1610-1 968L590 5.50 6 16.50 50 1610-2165.650 1610-2165L650 5.80 6 18.00 50 1610-2283.709 1610-2283L709 6.00 6 18.00 50 1610-2362.709 1610-2362L709 SERIES 1 610 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 72 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
