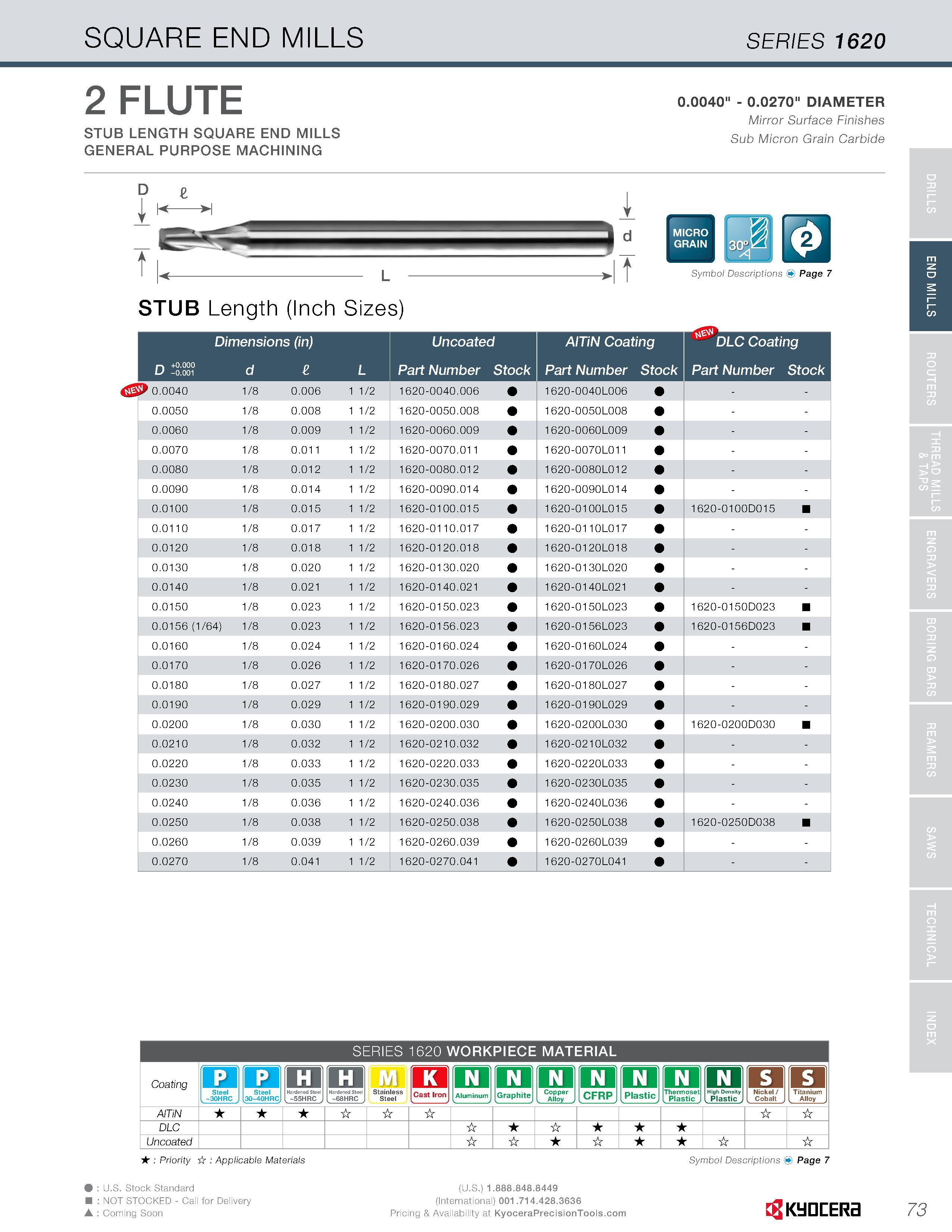

SQUARE END MILLS SERIES 1620 2 FLUTE STUB LENGTH SQUARI GENERAL PURPOSE MACHINING 0.0040" - 0.0270" DIAMETER Mirror Surface Finishes STUB LENGTH SQUARE END MILLS Sub Micmn Grain Carbide Symbol Descriptions Page 7 STUB Length (Inch Sizes) r-k +0.000 U -0.001 Dimensions (in) d e L Uncoated Part Number Stock AITiN Coating Part Number Stock DLC Coating Part Number Stock o 'sj- o o o a 1/8 0.006 1 1/2 1620-0040.006 1620-0040L006 - 0.0050 1/8 0.008 1 1/2 1620-0050.008 1620-0050L008 - 0.0060 1/8 0.009 1 1/2 1620-0060.009 1620-0060L009 - 0.0070 1/8 0.011 1 1/2 1620-0070.011 1620-0070L011 - 0.0080 1/8 0.012 1 1/2 1620-0080.012 1620-0080L012 - 0.0090 1/8 0.014 1 1/2 1620-0090.014 1620-0090L014 - 0.0100 1/8 0.015 1 1/2 1620-0100.015 1620-01 00L015 1 620-0100D015 0.0110 1/8 0.017 1 1/2 1620-0110.017 1620-0110L017 - 0.0120 1/8 0.018 1 1/2 1620-0120.018 1620-01 20L018 - 0.0130 1/8 0.020 1 1/2 1620-0130.020 1620-01 30L020 - 0.0140 1/8 0.021 1 1/2 1620-0140.021 1620-01 40L021 - 0.0150 1/8 0.023 1 1/2 1620-0150.023 1620-01 50L023 1 620-0150D023 0.0156 (1/64) 1/8 0.023 1 1/2 1620-0156.023 1620-01 56L023 1 620-0156D023 0.0160 1/8 0.024 1 1/2 1620-0160.024 1620-01 60L024 - 0.0170 1/8 0.026 1 1/2 1620-0170.026 1620-01 70L026 - 0.0180 1/8 0.027 1 1/2 1620-0180.027 1620-01 80L027 - 0.0190 1/8 0.029 1 1/2 1620-0190.029 1620-01 90L029 - 0.0200 1/8 0.030 1 1/2 1620-0200.030 1620-0200L030 1620-0200D030 0.0210 1/8 0.032 1 1/2 1620-0210.032 1620-0210L032 - 0.0220 1/8 0.033 1 1/2 1620-0220.033 1620-0220L033 - 0.0230 1/8 0.035 1 1/2 1620-0230.035 1620-0230L035 - 0.0240 1/8 0.036 1 1/2 1620-0240.036 1620-0240L036 - 0.0250 1/8 0.038 1 1/2 1620-0250.038 1620-0250L038 1620-0250D038 0.0260 1/8 0.039 1 1/2 1620-0260.039 1620-0260L039 - 0.0270 1/8 0.041 1 1/2 1620-0270.041 1620-0270L041 - SERIES 1620 WORKPIECE MATERIAL Coating D Steel -30HRC D Steel 30-40HRC EH Ha tdened Steel -55HRC (HI j'jJ Stainless Steel K o Aluminum o Graphite o Copper Alloy . o CFRP o Plastic o Thermoset . Plastic o Plastic . (si I si Hardened Steel -68HRC J Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN DLC Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 73 END MILLS
