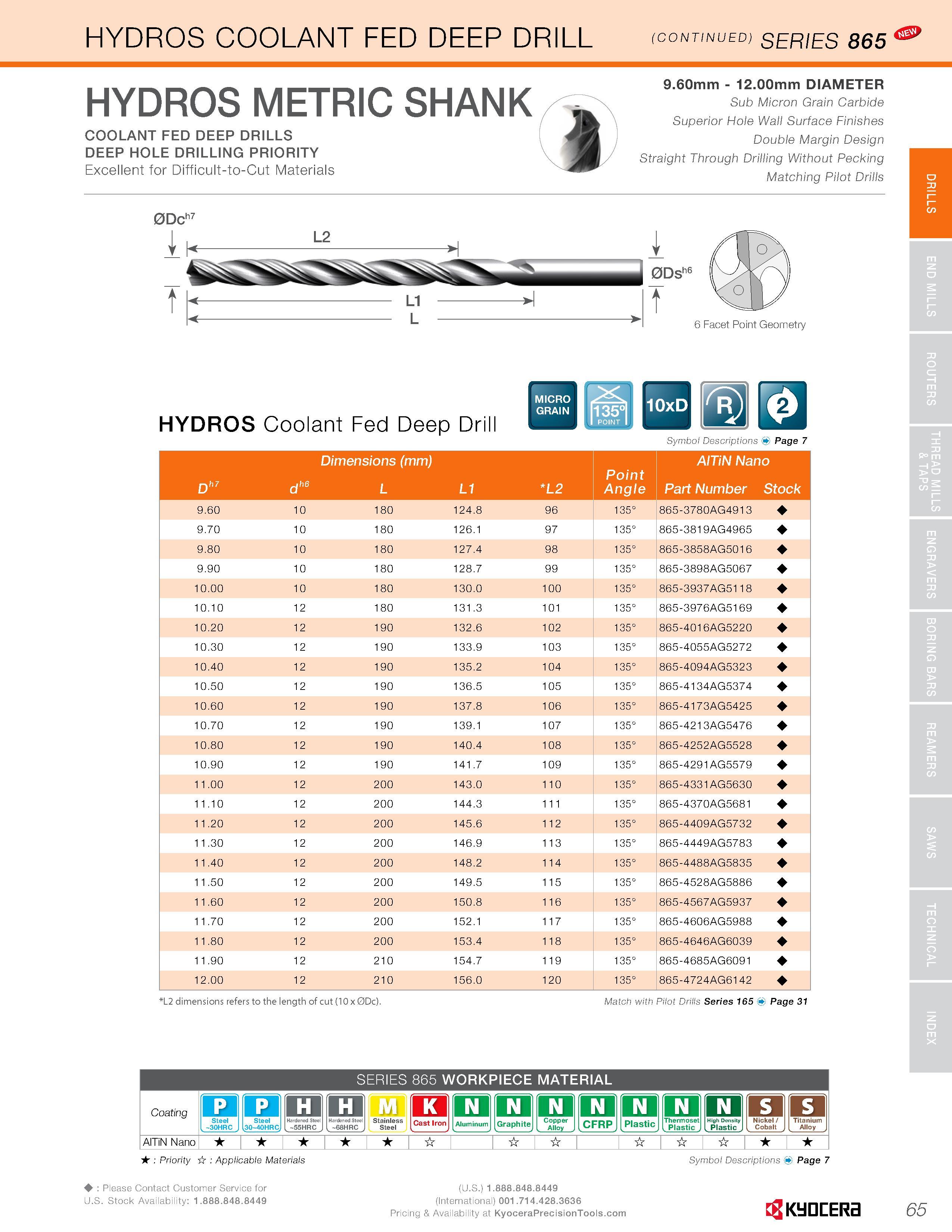

HYDROS COOLANT FED DEEP DRILL (continued) series 865 m HYDROS METRIC SHANK COOLANT FED DEEP DRILLS DEEP HOLE DRILLING PRIORITY Excellent for Difficult-to-Cut Materials ci> 9.60mm - 12.00mm DIAMETER Sub Micron Grain Carbide Superior Hole Wall Surface Finishes Double Margin Design Straight Through Drilling Without Pecking Matching Pilot Drills HYDROS Coolant Fed Deep Drill 10xD Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dh7 Point dh6 L L1 L2 Angle Part Number Stock 9.60 10 180 124.8 96 135° 865-3780AG4913 9.70 10 180 126.1 97 135° 865-3819AG4965 9.80 10 180 127.4 98 135° 865-3858AG5016 9.90 10 180 128.7 99 135° 865-3898AG5067 10.00 10 180 130.0 100 135° 865-3937AG511 8 10.10 12 180 131.3 101 135° 865-3976AG5169 10.20 12 190 132.6 102 135° 865-4016AG5220 10.30 12 190 133.9 103 135° 865-4055AG5272 10.40 12 190 135.2 104 135° 865-4094AG5323 10.50 12 190 136.5 105 135° 865-4134AG5374 10.60 12 190 137.8 106 135° 865-4173AG5425 10.70 12 190 139.1 107 135° 865-4213AG5476 10.80 12 190 140.4 108 135° 865-4252AG5528 10.90 12 190 141.7 109 135° 865-4291AG5579 11.00 12 200 143.0 110 135° 865-4331AG5630 11.10 12 200 144.3 111 135° 865-4370AG5681 11.20 12 200 145.6 112 135° 865-4409AG5732 11.30 12 200 146.9 113 135° 865-4449AG5783 11.40 12 200 148.2 114 135° 865-4488AG5835 11.50 12 200 149.5 115 135° 865-4528AG5886 11.60 12 200 150.8 116 135° 865-4567AG5937 11.70 12 200 152.1 117 135° 865-4606AG5988 11.80 12 200 153.4 118 135° 865-4646AG6039 11.90 12 210 154.7 119 135° 865-4685AG6091 12.00 12 210 156.0 120 135° 865-4724AG6142 L2 dimensions refers to the length of cut (1Ox0Dc). Match with Pilot Drills Series 165 Page 31 SERIES 865 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 Please Contact Customer Service for U.S. Stock Availability: CgKyDCERa 65 DRILLS
