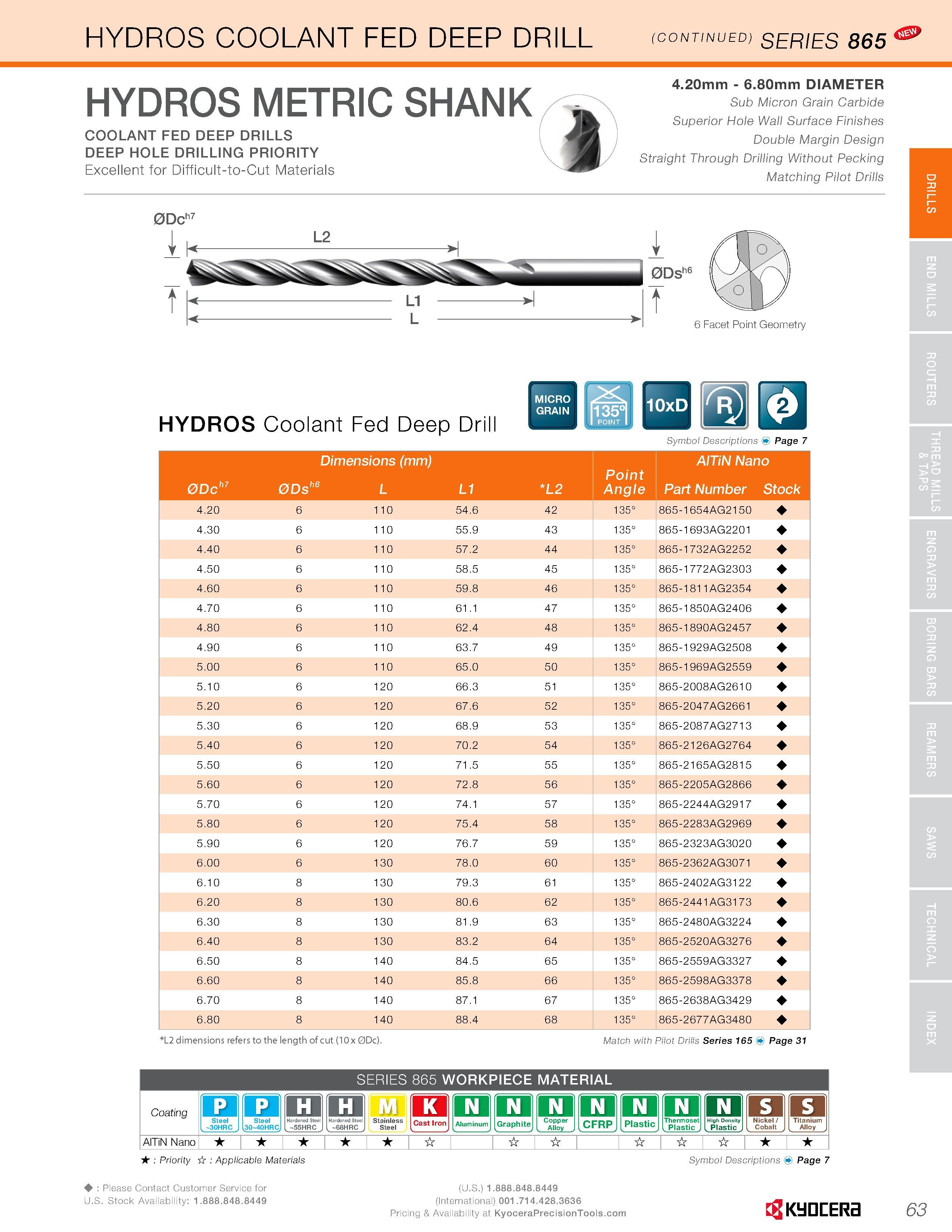

HYDROS COOLANT FED DEEP DRILL (continued) series 865 m HYDROS METRIC SHANK COOLANT FED DEEP DRILLS DEEP HOLE DRILLING PRIORITY Excellent for Difficult-to-Cut Materials ci> 4.20mm - 6.80mm DIAMETER Sub Micron Grain Carbide Superior Hole Wall Surface Finishes Double Margin Design Straight Through Drilling Without Pecking Matching Pilot Drills HYDROS Coolant Fed Deep Drill 10xD Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano 0Dch Point 0Dsh6 L LI L2 Angle Part Number Stock 4.20 6 110 54.6 42 135° 865-1 654AG21 50 4.30 6 110 55.9 43 135° 865-1693AG2201 4.40 6 110 57.2 44 135° 865-1732AG2252 4.50 6 110 58.5 45 135° 865-1772AG2303 4.60 6 110 59.8 46 135° 865-1811AG2354 4.70 6 110 61.1 47 135° 865-1850AG2406 4.80 6 110 62.4 48 135° 865-1890AG2457 4.90 6 110 63.7 49 135° 865-1929AG2508 5.00 6 110 65.0 50 135° 865-1969AG2559 5.10 6 120 66.3 51 135° 865-2008AG2610 5.20 6 120 67.6 52 135° 865-2047AG2661 5.30 6 120 68.9 53 135° 865-2087AG271 3 5.40 6 120 70.2 54 135° 865-2126AG2764 5.50 6 120 71.5 55 135° 865-2165AG281 5 5.60 6 120 72.8 56 135° 865-2205AG2866 5.70 6 120 74.1 57 135° 865-2244AG2917 5.80 6 120 75.4 58 135° 865-2283AG2969 5.90 6 120 76.7 59 135° 865-2323AG3020 6.00 6 130 78.0 60 135° 865-2362AG3071 6.10 8 130 79.3 61 135° 865-2402AG3122 6.20 8 130 80.6 62 135° 865-2441AG31 73 6.30 8 130 81.9 63 135° 865-2480AG3224 6.40 8 130 83.2 64 135° 865-2520AG3276 6.50 8 140 84.5 65 135° 865-2559AG3327 6.60 8 140 85.8 66 135° 865-2598AG3378 6.70 8 140 87.1 67 135° 865-2638AG3429 6.80 8 140 88.4 68 135° 865-2677AG3480 L2 dimensions refers to the length of cut (lOx 0Dc). Match with Pilot Drills Series 165 Page 31 SERIES 865 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 Please Contact Customer Service for U.S. Stock Availability: CgKyDCERa 63 DRILLS
