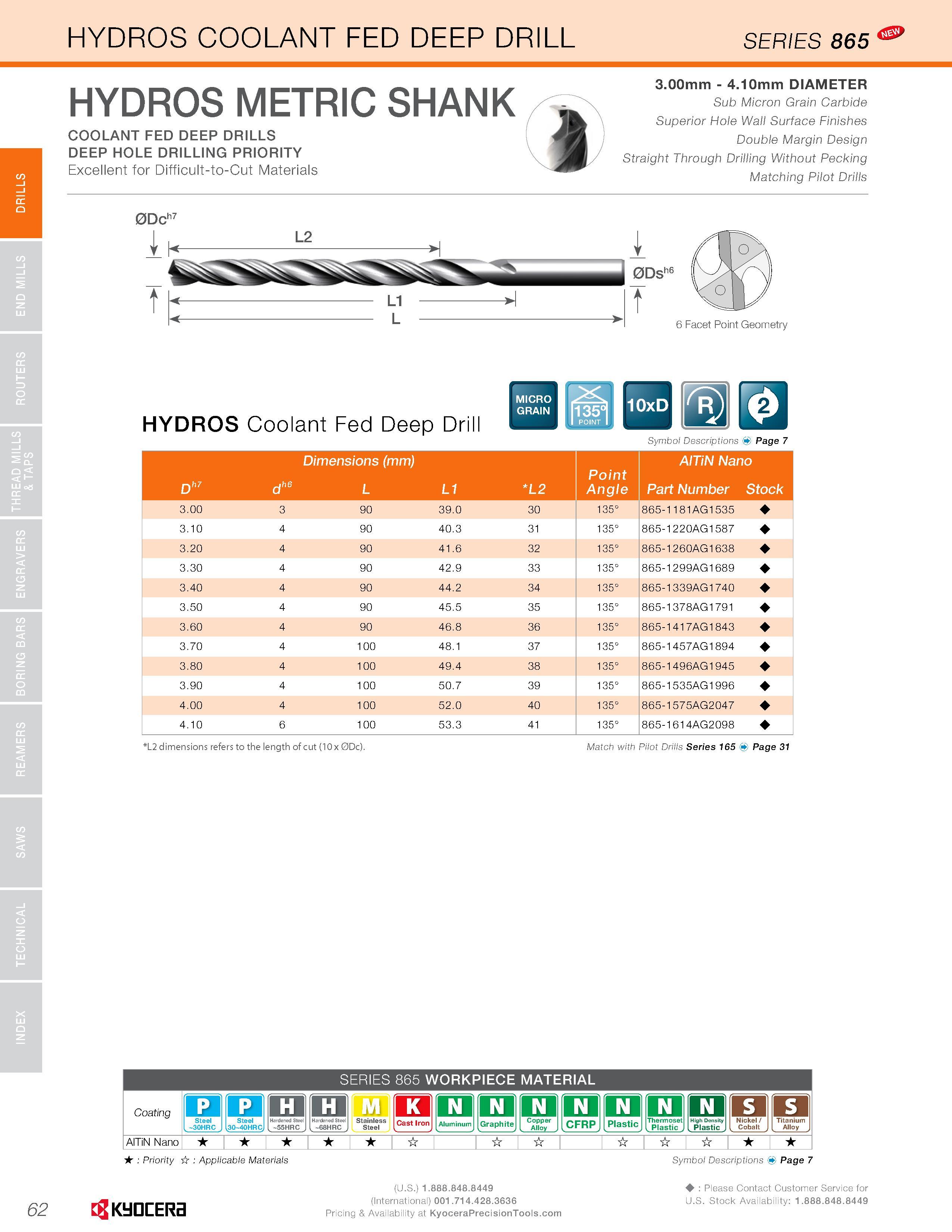

DRILLS HYDROS COOLANT FED DEEP DRILL HYDROS METRIC SHANK COOLANT FED DEEP DRILLS DEEP HOLE DRILLING PRIORITY Excellent for Difficult-to-Cut Materials d) 3.00mm - 4.10mm DIAMETER Sub Micron Grain Carbide Superior Hole Wall Surface Finishes Double Margin Design Straight Through Drilling Without Pecking Matching Pilot Drills HYDROS Coolant Fed Deep Drill 10xD Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dh Point dh6 L L1 L2 Angle Part Number Stock 3.00 3 90 39.0 30 135° 865-1181AG1 535 3.10 4 90 40.3 31 135° 865-1 220AG1 587 3.20 4 90 41.6 32 135° 865-1 260AG1 638 3.30 4 90 42.9 33 135° 865-1 299AG1 689 3.40 4 90 44.2 34 135° 865-1 339AG1 740 3.50 4 90 45.5 35 135° 865-1 378AG1 791 3.60 4 90 46.8 36 135° 865-1 41 7AG1 843 3.70 4 100 48.1 37 135° 865-1 457AG1 894 3.80 4 100 49.4 38 135° 865-1 496AG1 945 3.90 4 100 50.7 39 135° 865-1 535AG1 996 4.00 4 100 52.0 40 135° 865-1575AG2047 4.10 6 100 53.3 41 135° 865-1 61 4AG2098 L2 dimensions refers to the length of cut (lOx 0Dc). Match with Pilot Drills Series 165 Page 31 SERIES 865 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 62 Kyocera Please Contact Customer Service for U.S. Stock Availability: 1.888.848.8449
