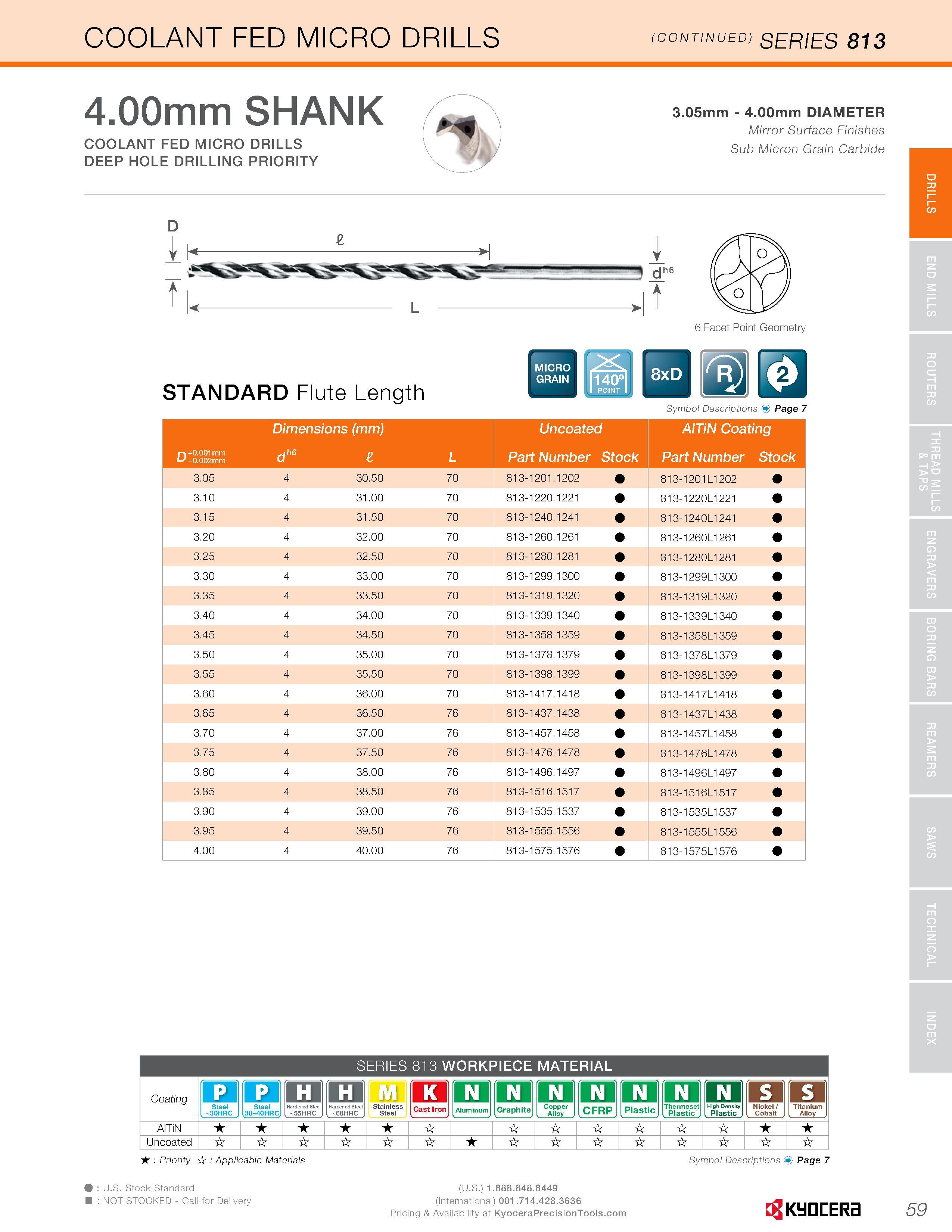

COOLANT FED MICRO DRILLS (CONTINUED) SERIES 813 4.00mm SHANK COOLANT FED MICRO DRILLS DEEP HOLE DRILLING PRIORITY 3.05mm - 4.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D K- t STANDARD Flute Length 6 Facet Point Geometry Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating r- +0.001 mm Ls-0.002mm dh6 L Part Number Stock Part Number Stock 3.05 4 30.50 70 813-1201.1202 813-1201L1202 3.10 4 31.00 70 813-1220.1221 813-1220L1221 3.15 4 31.50 70 813-1240.1241 813-1240L1241 3.20 4 32.00 70 813-1260.1261 813-1260L1261 3.25 4 32.50 70 813-1280.1281 813-1280L1281 3.30 4 33.00 70 813-1299.1300 813-1299L1300 3.35 4 33.50 70 813-1319.1320 813-1319L1320 3.40 4 34.00 70 813-1339.1340 813-1339L1340 3.45 4 34.50 70 813-1358.1359 813-1358L1359 3.50 4 35.00 70 813-1378.1379 813-1378L1379 3.55 4 35.50 70 813-1398.1399 813-1398L1399 3.60 4 36.00 70 813-1417.1418 813-1417L1418 3.65 4 36.50 76 813-1437.1438 813-1437L1438 3.70 4 37.00 76 813-1457.1458 813-1457L1458 3.75 4 37.50 76 813-1476.1478 813-1476L1478 3.80 4 38.00 76 813-1496.1497 813-1496L1497 3.85 4 38.50 76 813-1516.1517 813-1516L1517 3.90 4 39.00 76 813-1535.1537 813-1535L1537 3.95 4 39.50 76 813-1555.1556 813-1555L1556 4.00 4 40.00 76 813-1575.1576 813-1575L1576 SERIES 813 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority tV Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 59 DRILLS
