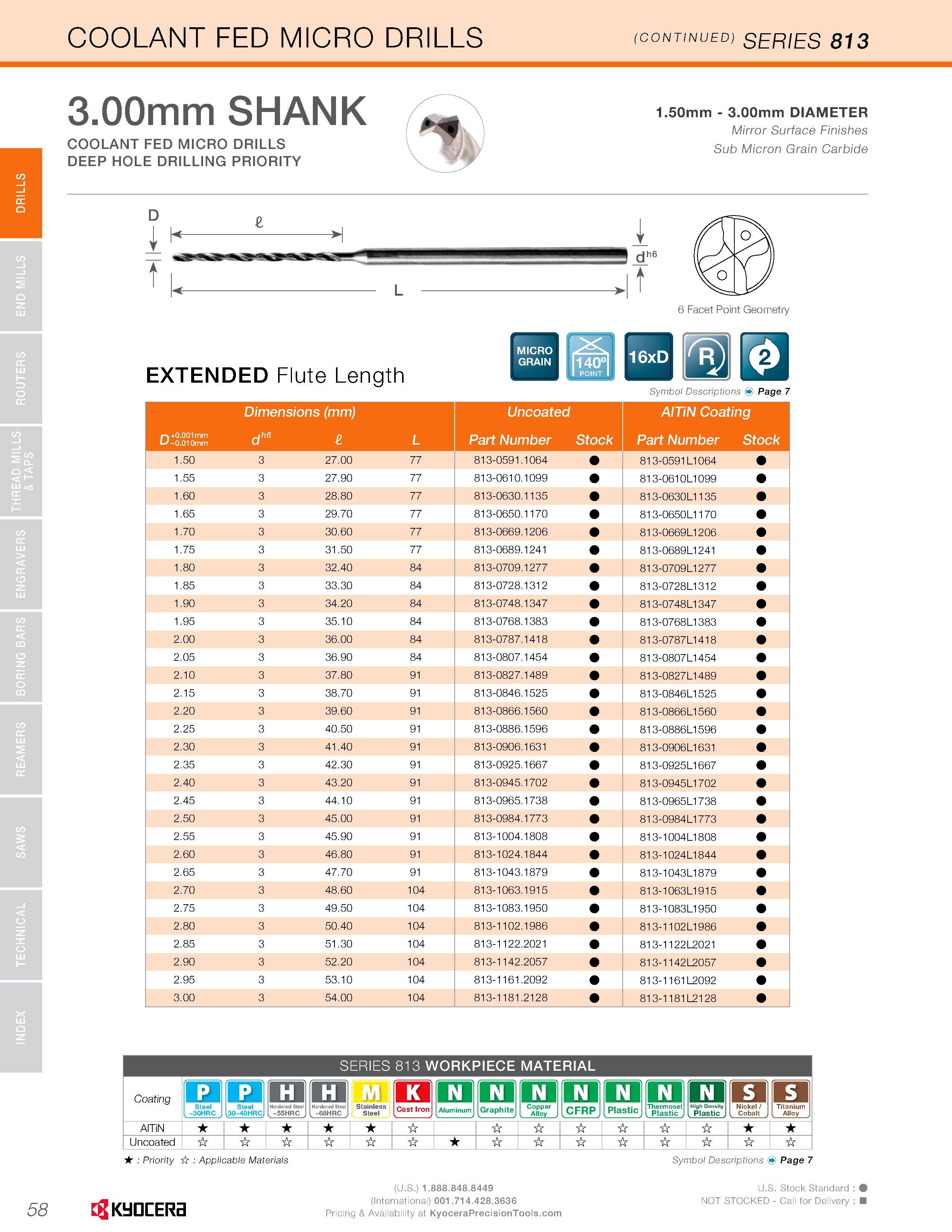

DRILLS COOLANT FED MICRO DRILLS (CONTINUED) SERIES 813 3.00mm SHANK COOLANT FED MICRO DRILLS DEEP HOLE DRILLING PRIORITY 1.50mm - 3.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide j K t L EXTENDED Flute Length i dh6 Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating i-i +0.001 mm -'-0.01 Omm dhG I L Part Number Stock Part Number Stock 1.50 3 27.00 77 813-0591.1064 813-0591 L1064 1.55 3 27.90 77 813-0610.1099 813-0610L1099 1.60 3 28.80 77 813-0630.1135 813-0630L1135 1.65 3 29.70 77 813-0650.1170 813-0650L1170 1.70 3 30.60 77 813-0669.1206 813-0669L1206 1.75 3 31.50 77 813-0689.1241 813-0689L1241 1.80 3 32.40 84 813-0709.1277 813-0709L1277 1.85 3 33.30 84 813-0728.1312 813-0728L1312 1.90 3 34.20 84 813-0748.1347 813-0748L1347 1.95 3 35.10 84 813-0768.1383 813-0768L1383 2.00 3 36.00 84 813-0787.1418 813-0787L1418 2.05 3 36.90 84 813-0807.1454 813-0807L1454 2.10 3 37.80 91 813-0827.1489 813-0827L1489 2.15 3 38.70 91 813-0846.1525 813-0846L1525 2.20 3 39.60 91 813-0866.1560 813-0866L1560 2.25 3 40.50 91 813-0886.1596 813-0886L1596 2.30 3 41.40 91 813-0906.1631 813-0906L1631 2.35 3 42.30 91 813-0925.1667 813-0925L1667 2.40 3 43.20 91 813-0945.1702 813-0945L1702 2.45 3 44.10 91 813-0965.1738 813-0965L1738 2.50 3 45.00 91 813-0984.1773 813-0984L1773 2.55 3 45.90 91 813-1004.1808 813-1004L1808 2.60 3 46.80 91 813-1024.1844 813-1024L1844 2.65 3 47.70 91 813-1043.1879 813-1043L1879 2.70 3 48.60 104 813-1063.1915 813-1063L1915 2.75 3 49.50 104 813-1083.1950 813-1083L1950 2.80 3 50.40 104 813-1102.1986 813-1102L1986 2.85 3 51.30 104 813-1122.2021 813-1122L2021 2.90 3 52.20 104 813-1142.2057 813-1142L2057 2.95 3 53.10 104 813-1161.2092 813-1161 L2092 3.00 3 54.00 104 813-1181.2128 813-1181 L2128 SERIES 813 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 58 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
