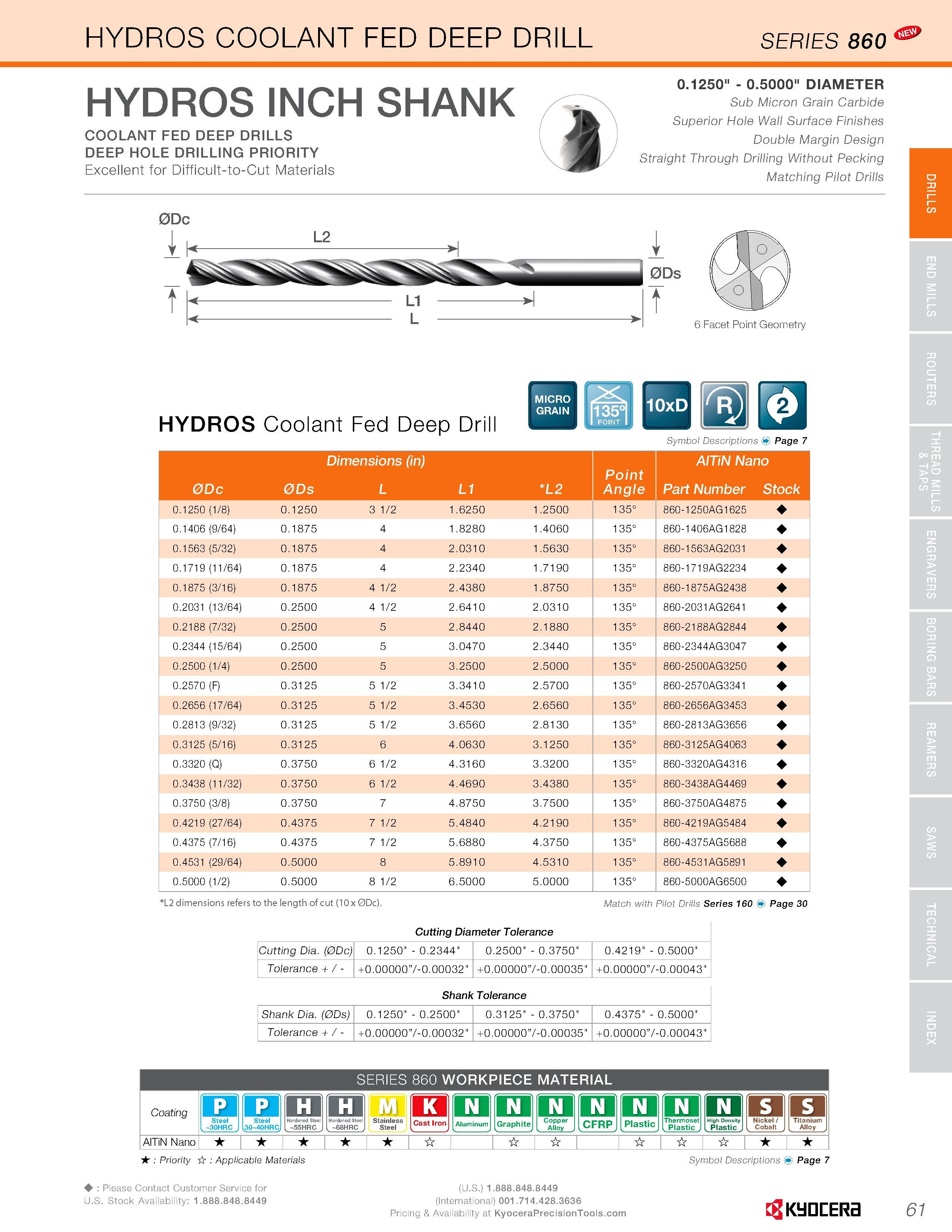

HYDROS COOLANT FED DEEP DRILL HYDROS INCH SHANK COOLANT FED DEEP DRILLS DEEP HOLE DRILLING PRIORITY Excellent for Difficult-to-Cut Materials I 0.1250" - 0.5000" DIAMETER Sub Micron Grain Carbide Superior Hole Wall Surface Finishes Double Margin Design Straight Through Drilling Without Pecking Matching Pilot Drills HYDROS Coolant Fed Deep Drill 10xD Symbol Descriptions Page 7 Dimensions (in) AITiN Nano Point 0Dc 0Ds L L1 L2 Angle Part Number Stock 0.1250 (1/8) 0.1250 3 1/2 1.6250 1.2500 135° 860-1250AG1625 0.1406 (9/64) 0.1875 4 1.8280 1.4060 135° 860-1406AG1828 0.1563 (5/32) 0.1875 4 2.0310 1.5630 135° 860-1563AG2031 0.1719 (11/64) 0.1875 4 2.2340 1.7190 135° 860-1719AG2234 0.1875 (3/16) 0.1875 4 1/2 2.4380 1.8750 135° 860-1875AG2438 0.2031 (13/64) 0.2500 4 1/2 2.6410 2.0310 135° 860-2031AG2641 0.2188 (7/32) 0.2500 5 2.8440 2.1880 135° 860-2188AG2844 0.2344 (15/64) 0.2500 5 3.0470 2.3440 135° 860-2344AG3047 0.2500 (1/4) 0.2500 5 3.2500 2.5000 135° 860-2500AG3250 0.2570 (F) 0.3125 5 1/2 3.3410 2.5700 135° 860-2570AG3341 0.2656 (17/64) 0.3125 5 1/2 3.4530 2.6560 135° 860-2656AG3453 0.2813 (9/32) 0.3125 5 1/2 3.6560 2.8130 135° 860-2813AG3656 0.3125 (5/16) 0.3125 6 4.0630 3.1250 135° 860-3125AG4063 0.3320 (Q) 0.3750 6 1/2 4.3160 3.3200 135° 860-3320AG4316 0.3438 (11/32) 0.3750 6 1/2 4.4690 3.4380 135° 860-3438AG4469 0.3750 (3/8) 0.3750 7 4.8750 3.7500 135° 860-3750AG4875 0.4219 (27/64) 0.4375 7 1/2 5.4840 4.2190 135° 860-4219AG5484 0.4375 (7/16) 0.4375 7 1/2 5.6880 4.3750 135° 860-4375AG5688 0.4531 (29/64) 0.5000 8 5.8910 4.5310 135° 860-4531AG5891 0.5000 (1/2) 0.5000 8 1/2 6.5000 5.0000 135° 860-5000AG6500 L2 dimensions refers to the length of cut (lOx 0Dc). Match with Pilot Drills Series 160 Page 30 Cutting Diameter Tolerance Cutting Dia. (0Dc) 0.1250" - 0.2344" 0.2500" - 0.3750" 0.4219" - 0.5000" Tolerance + / - +0.000007-0.00032" +0.00000V-0.00035" +0.000007-0.00043" Shank Tolerance Shank Dia. (0Ds) 0.1250" - 0.2500" 0.3125" - 0.3750" 0.4375" - 0.5000" Tolerance + / - +0.000007-0.00032" +0.000007-0.00035" +0.000007-0.00043" SERIES 860 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel K Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic s s j Cast IronJ Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 Please Contact Customer Service for U.S. Stock Availability: Kyocera 61 DRILLS
