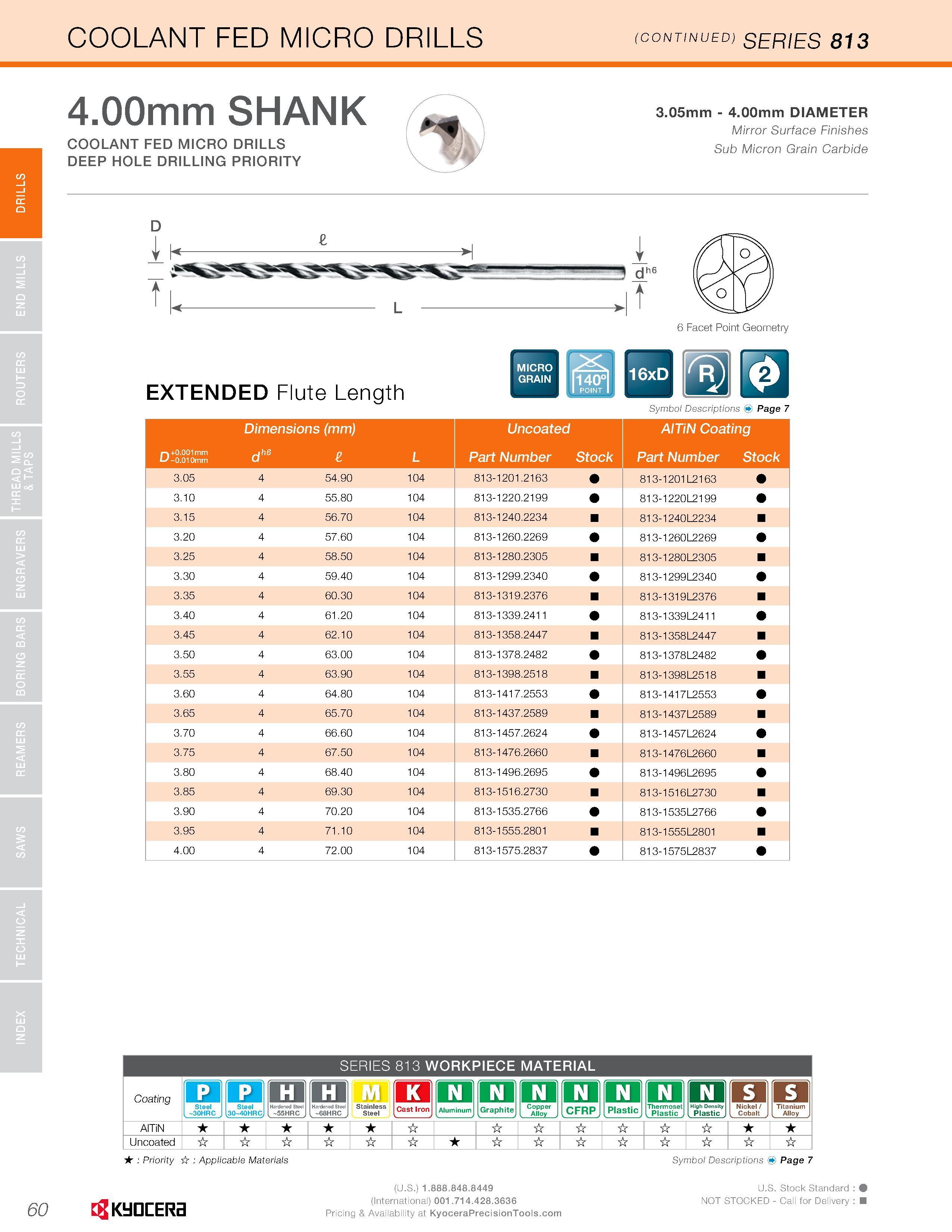

DRILLS COOLANT FED MICRO DRILLS (CONTINUED) SERIES 813 4.00mm SHANK COOLANT FED MICRO DRILLS DEEP HOLE DRILLING PRIORITY 3.05mm - 4.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide j. 3 dh6 6 Facet Point Geometry EXTENDED Flute Length Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating i-i +0.001 mm -'-0.01 Omm dhG L Part Number Stock Part Number Stock 3.05 4 54.90 104 813-1201.2163 813-1201 L2163 3.10 4 55.80 104 813-1220.2199 813-1220L2199 3.15 4 56.70 104 813-1240.2234 813-1240L2234 3.20 4 57.60 104 813-1260.2269 813-1260L2269 3.25 4 58.50 104 813-1280.2305 813-1280L2305 3.30 4 59.40 104 813-1299.2340 813-1299L2340 3.35 4 60.30 104 813-1319.2376 813-1319L2376 3.40 4 61.20 104 813-1339.2411 813-1339L2411 3.45 4 62.10 104 813-1358.2447 813-1358L2447 3.50 4 63.00 104 813-1378.2482 813-1378L2482 3.55 4 63.90 104 813-1398.2518 813-1398L2518 3.60 4 64.80 104 813-1417.2553 813-1417L2553 3.65 4 65.70 104 813-1437.2589 813-1437L2589 3.70 4 66.60 104 813-1457.2624 813-1457L2624 3.75 4 67.50 104 813-1476.2660 813-1476L2660 3.80 4 68.40 104 813-1496.2695 813-1496L2695 3.85 4 69.30 104 813-1516.2730 813-1516L2730 3.90 4 70.20 104 813-1535.2766 813-1535L2766 3.95 4 71.10 104 813-1555.2801 813-1555L2801 4.00 4 72.00 104 813-1575.2837 813-1575L2837 SERIES 813 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 60 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
