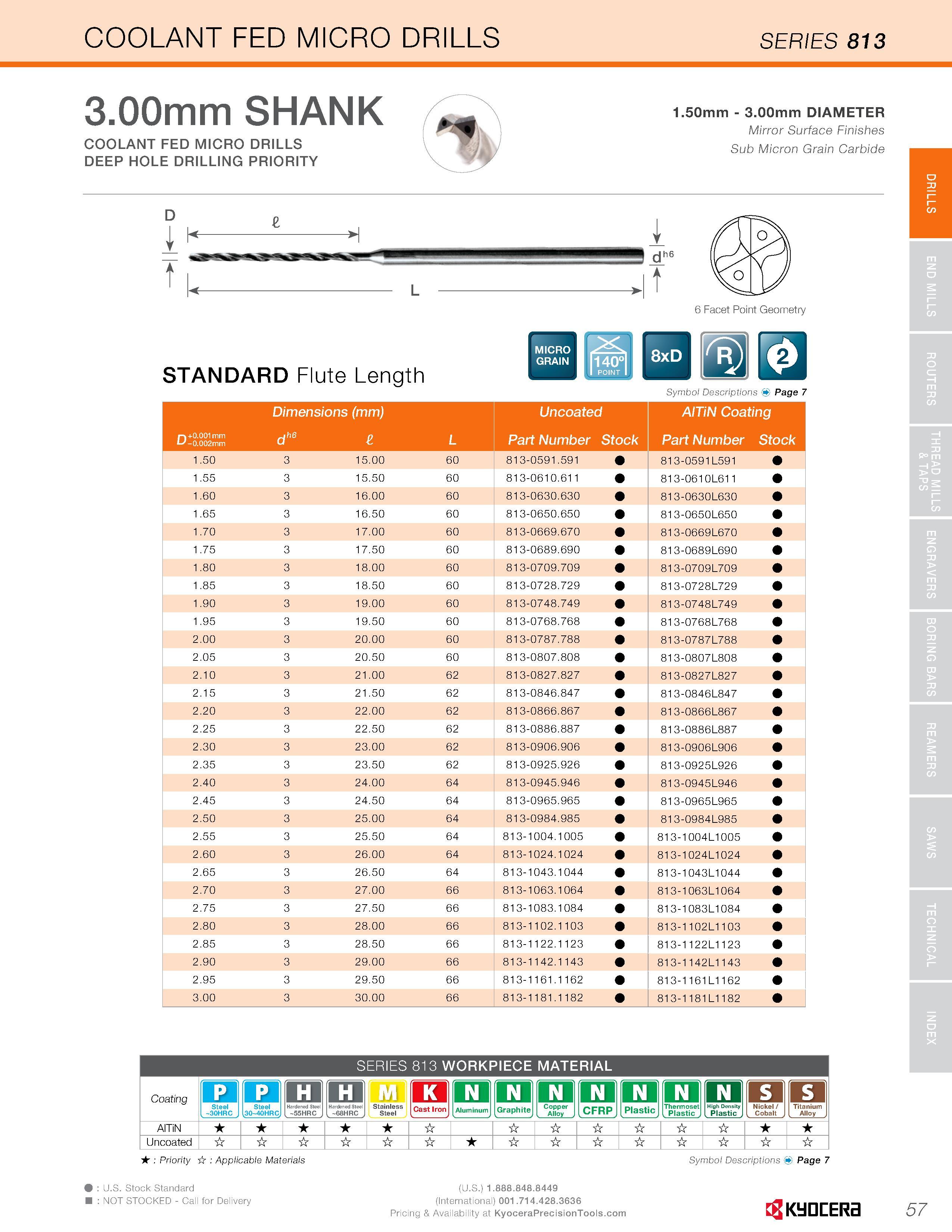

59 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.57

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 57 0059 ENG Lab2u

COOLANT FED MICRO DRILLS SERIES 813 3.00mm SHANK COOLANT FED MICRO DRILLS DEEP HOLE DRILLING PRIORITY 1.50mm - 3.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide D t L j. dh6 STANDARD Flute Length Symbol Descriptions Page 7 +0.001 mm V-0.002mm Dimensions (mm) dhe L Uncoated Part Number Stock AITiN Coating Part Number Stock 1.50 3 15.00 60 813-0591.591 813-0591L591 1.55 3 15.50 60 813-0610.611 813-0610L611 1.60 3 16.00 60 813-0630.630 813-0630L630 1.65 3 16.50 60 813-0650.650 813-0650L650 1.70 3 17.00 60 813-0669.670 813-0669L670 1.75 3 17.50 60 813-0689.690 813-0689L690 1.80 3 18.00 60 813-0709.709 813-0709L709 1.85 3 18.50 60 813-0728.729 813-0728L729 1.90 3 19.00 60 813-0748.749 813-0748L749 1.95 3 19.50 60 813-0768.768 813-0768L768 2.00 3 20.00 60 813-0787.788 813-0787L788 2.05 3 20.50 60 813-0807.808 813-0807L808 2.10 3 21.00 62 813-0827.827 813-0827L827 2.15 3 21.50 62 813-0846.847 813-0846L847 2.20 3 22.00 62 813-0866.867 813-0866L867 2.25 3 22.50 62 813-0886.887 813-0886L887 2.30 3 23.00 62 813-0906.906 813-0906L906 2.35 3 23.50 62 813-0925.926 813-0925L926 2.40 3 24.00 64 813-0945.946 813-0945L946 2.45 3 24.50 64 813-0965.965 813-0965L965 2.50 3 25.00 64 813-0984.985 813-0984L985 2.55 3 25.50 64 813-1004.1005 81 3-1 004L1005 2.60 3 26.00 64 813-1024.1024 81 3-1 024L1024 2.65 3 26.50 64 813-1043.1044 81 3-1 043L1044 2.70 3 27.00 66 813-1063.1064 81 3-1 063L1064 2.75 3 27.50 66 813-1083.1084 81 3-1 083L1084 2.80 3 28.00 66 813-1102.1103 813-1102L1103 2.85 3 28.50 66 813-1122.1123 813-1122L1123 2.90 3 29.00 66 813-1142.1143 813-1142L1143 2.95 3 29.50 66 813-1161.1162 81 3-1161 L1162 3.00 3 30.00 66 813-1181.1182 813-1181L1182 SERIES 813 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel Kl o Aluminuin Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic I s s I Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN Uncoated Priority ir Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 57 DRILLS
