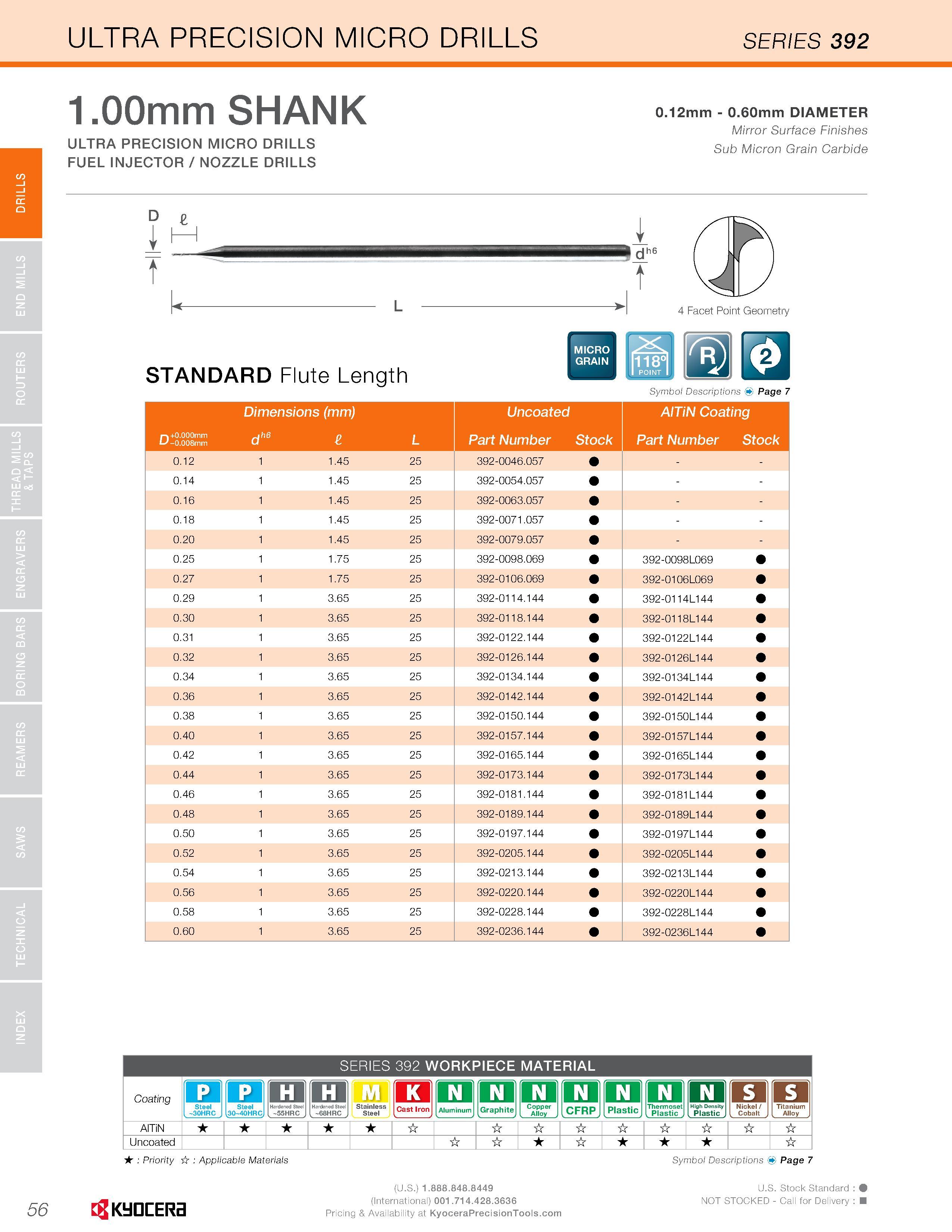

DRILLS ULTRA PRECISION MICRO DRILLS SERIES 392 1.00mm SHANK ULTRA PRECISION MICRO DRILLS FUEL INJECTOR / NOZZLE DRILLS 0.12mm - 0.60mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length r0 Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating i-i +0.000mm U -0.008mm dhG I L Part Number Stock Part Number Stock 0.12 1.45 25 392-0046.057 - 0.14 1.45 25 392-0054.057 - 0.16 1.45 25 392-0063.057 - 0.18 1.45 25 392-0071.057 - 0.20 1.45 25 392-0079.057 - 0.25 1.75 25 392-0098.069 392-0098L069 0.27 1.75 25 392-0106.069 392-0106L069 0.29 3.65 25 392-0114.144 392-0114L144 0.30 3.65 25 392-0118.144 392-0118L144 0.31 3.65 25 392-0122.144 392-0122L144 0.32 3.65 25 392-0126.144 392-0126L144 0.34 3.65 25 392-0134.144 392-0134L144 0.36 3.65 25 392-0142.144 392-0142L144 0.38 3.65 25 392-0150.144 392-0150L144 0.40 3.65 25 392-0157.144 392-0157L144 0.42 3.65 25 392-0165.144 392-0165L144 0.44 3.65 25 392-0173.144 392-0173L144 0.46 3.65 25 392-0181.144 392-0181 L144 0.48 3.65 25 392-0189.144 392-0189L144 0.50 3.65 25 392-0197.144 392-0197L144 0.52 3.65 25 392-0205.144 392-0205L144 0.54 3.65 25 392-0213.144 392-0213L144 0.56 3.65 25 392-0220.144 392-0220L144 0.58 3.65 25 392-0228.144 392-0228L144 0.60 3.65 25 392-0236.144 392-0236L144 SERIES 392 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Jl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 56 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
