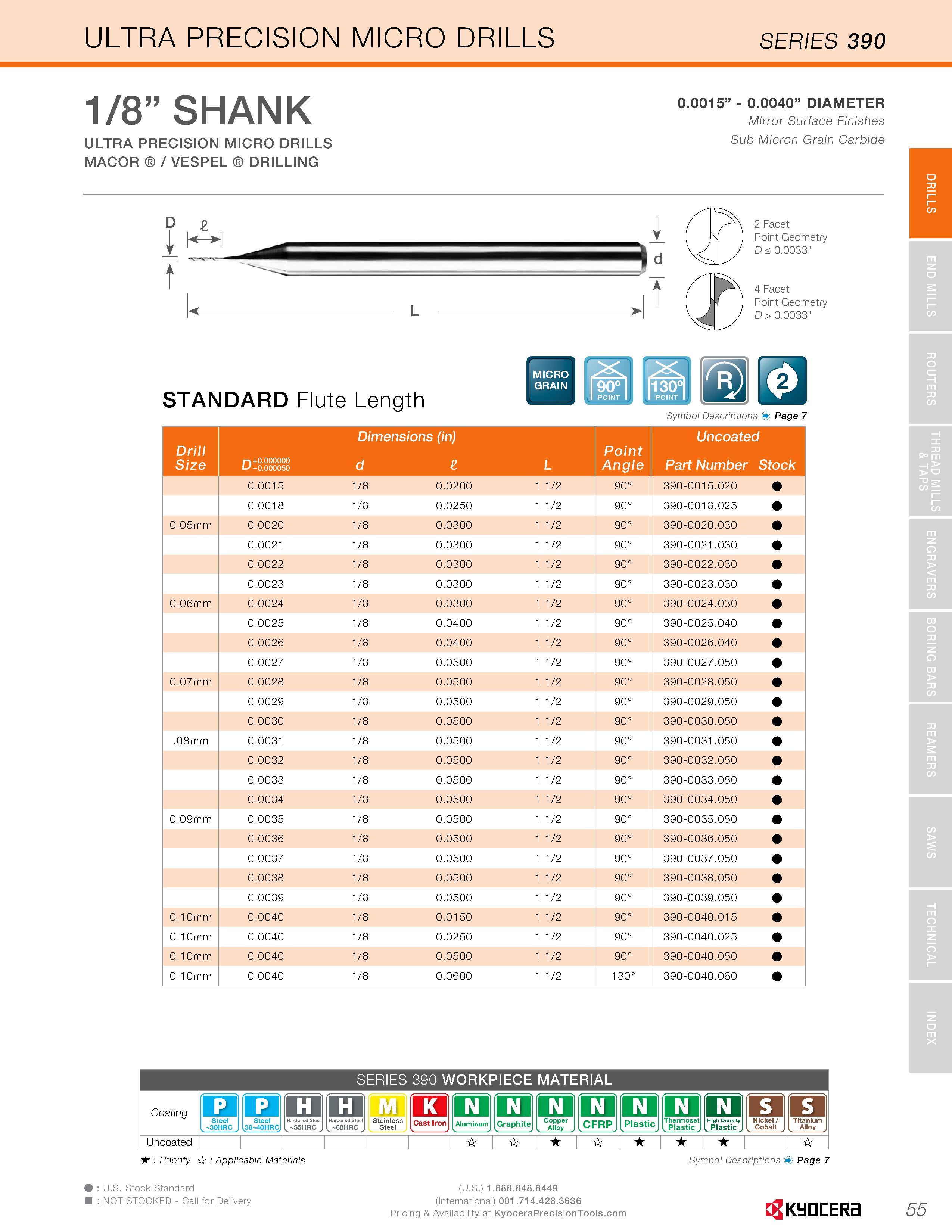

ULTRA PRECISION MICRO DRILLS SERIES 390 1/8” SHANK ULTRA PRECISION MICRO DRILLS MACOR / VESPEL DRILLING 0.0015” - 0.0040” DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated Drill Point Size n +0.000000 -'-0.000050 d L Angle Part Number Stock 0.0015 1/8 0.0200 1 1/2 CD o 390-0015.020 0.0018 1/8 0.0250 1 1/2 CD o 390-0018.025 0.05mm 0.0020 1/8 0.0300 1 1/2 CD o 390-0020.030 0.0021 1/8 0.0300 1 1/2 CD o 390-0021.030 0.0022 1/8 0.0300 1 1/2 CD o 390-0022.030 0.0023 1/8 0.0300 1 1/2 CD o 390-0023.030 0.06mm 0.0024 1/8 0.0300 1 1/2 CD o 390-0024.030 0.0025 1/8 0.0400 1 1/2 CD o 390-0025.040 0.0026 1/8 0.0400 1 1/2 CD o 390-0026.040 0.0027 1/8 0.0500 1 1/2 CD o 390-0027.050 0.07mm 0.0028 1/8 0.0500 1 1/2 CD o 390-0028.050 0.0029 1/8 0.0500 1 1/2 CD o 390-0029.050 0.0030 1/8 0.0500 1 1/2 CD o 390-0030.050 .08mm 0.0031 1/8 0.0500 1 1/2 CD o 390-0031.050 0.0032 1/8 0.0500 1 1/2 CD o 390-0032.050 0.0033 1/8 0.0500 1 1/2 CD o 390-0033.050 0.0034 1/8 0.0500 1 1/2 CD o 390-0034.050 0.09mm 0.0035 1/8 0.0500 1 1/2 CD o 390-0035.050 0.0036 1/8 0.0500 1 1/2 CD o 390-0036.050 0.0037 1/8 0.0500 1 1/2 CD o 390-0037.050 0.0038 1/8 0.0500 1 1/2 CD o 390-0038.050 0.0039 1/8 0.0500 1 1/2 CD o 390-0039.050 0.10mm 0.0040 1/8 0.0150 1 1/2 CD o 390-0040.015 0.10mm 0.0040 1/8 0.0250 1 1/2 CD o 390-0040.025 0.10mm 0.0040 1/8 0.0500 1 1/2 CD o 390-0040.050 0.10mm 0.0040 1/8 0.0600 1 1/2 130° 390-0040.060 SERIES 390 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC 'Ml Stainless Steel K Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated I Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 55 DRILLS
