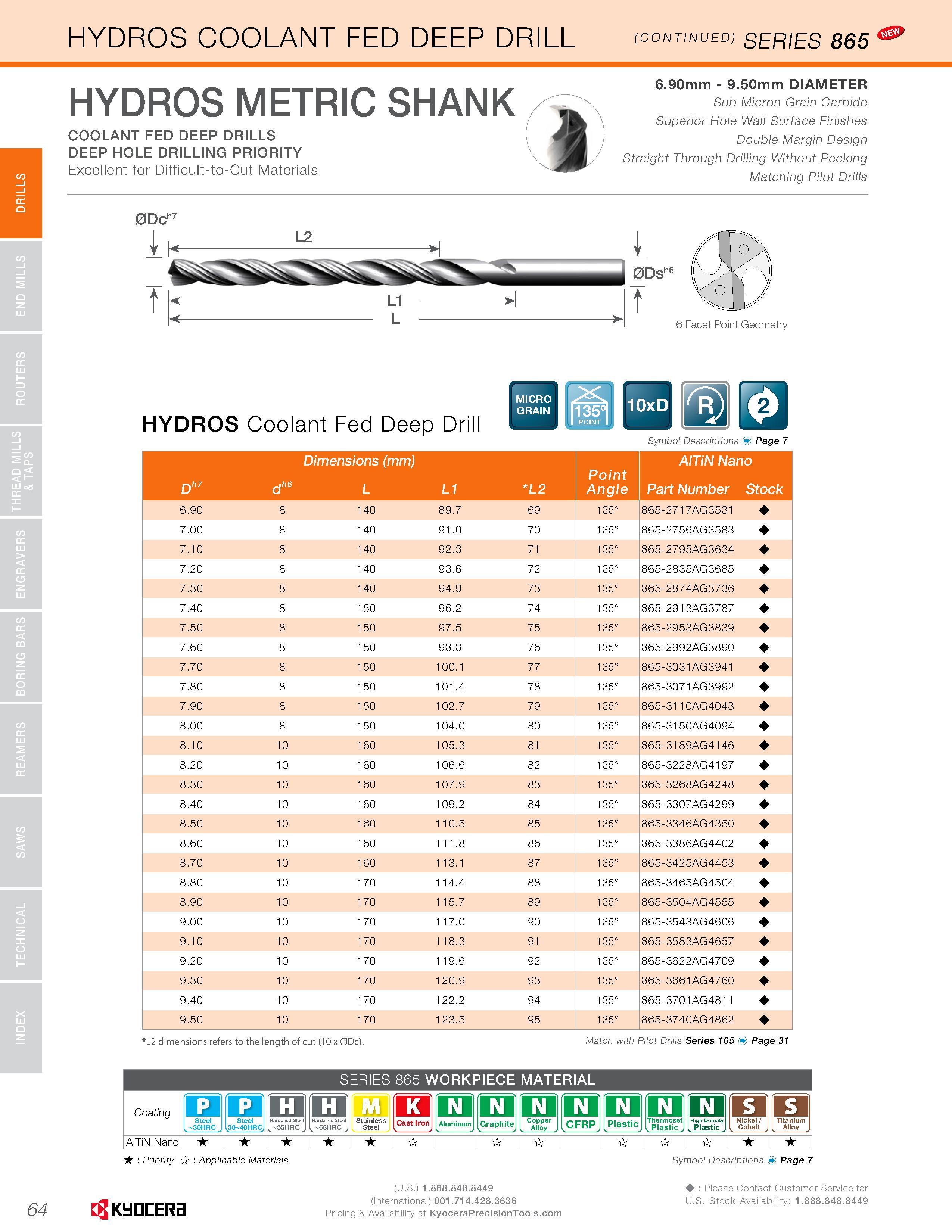

DRILLS HYDROS COOLANT FED DEEP DRILL (continued) series 865 m HYDROS METRIC SHANK COOLANT FED DEEP DRILLS DEEP HOLE DRILLING PRIORITY Excellent for Difficult-to-Cut Materials d) 6.90mm - 9.50mm DIAMETER Sub Micron Grain Carbide Superior Hole Wall Surface Finishes Double Margin Design Straight Through Drilling Without Pecking Matching Pilot Drills HYDROS Coolant Fed Deep Drill 10xD Symbol Descriptions Page 7 Dimensions (mm) AITiN Nano Dh Point dh6 L L1 L2 Angle Part Number Stock 6.90 8 140 89.7 69 135° 865-2717AG3531 7.00 8 140 91.0 70 135° 865-2756AG3583 7.10 8 140 92.3 71 135° 865-2795AG3634 7.20 8 140 93.6 72 135° 865-2835AG3685 7.30 8 140 94.9 73 135° 865-2874AG3736 7.40 8 150 96.2 74 135° 865-2913AG3787 7.50 8 150 97.5 75 135° 865-2953AG3839 7.60 8 150 98.8 76 135° 865-2992AG3890 7.70 8 150 100.1 77 135° 865-3031AG3941 7.80 8 150 101.4 78 135° 865-3071AG3992 7.90 8 150 102.7 79 135° 865-3110AG4043 8.00 8 150 104.0 80 135° 865-3150AG4094 8.10 10 160 105.3 81 135° 865-31 89AG41 46 8.20 10 160 106.6 82 135° 865-3228AG4197 8.30 10 160 107.9 83 135° 865-3268AG4248 8.40 10 160 109.2 84 135° 865-3307AG4299 8.50 10 160 110.5 85 135° 865-3346AG4350 8.60 10 160 111.8 86 135° 865-3386AG4402 8.70 10 160 113.1 87 135° 865-3425AG4453 8.80 10 170 114.4 88 135° 865-3465AG4504 8.90 10 170 115.7 89 135° 865-3504AG4555 9.00 10 170 117.0 90 135° 865-3543AG4606 9.10 10 170 118.3 91 135° 865-3583AG4657 9.20 10 170 119.6 92 135° 865-3622AG4709 9.30 10 170 120.9 93 135° 865-3661AG4760 9.40 10 170 122.2 94 135° 865-3701AG4811 9.50 10 170 123.5 95 135° 865-3740AG4862 L2 dimensions refers to the length of cut (1Ox0Dc). Match with Pilot Drills Series 165 Page 31 SERIES 865 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J AITiN Nano Priority Or Applicable Materials Symbol Descriptions Page 7 64 CgKyDCERa Please Contact Customer Service for U.S. Stock Availability: 1.888.848.8449
