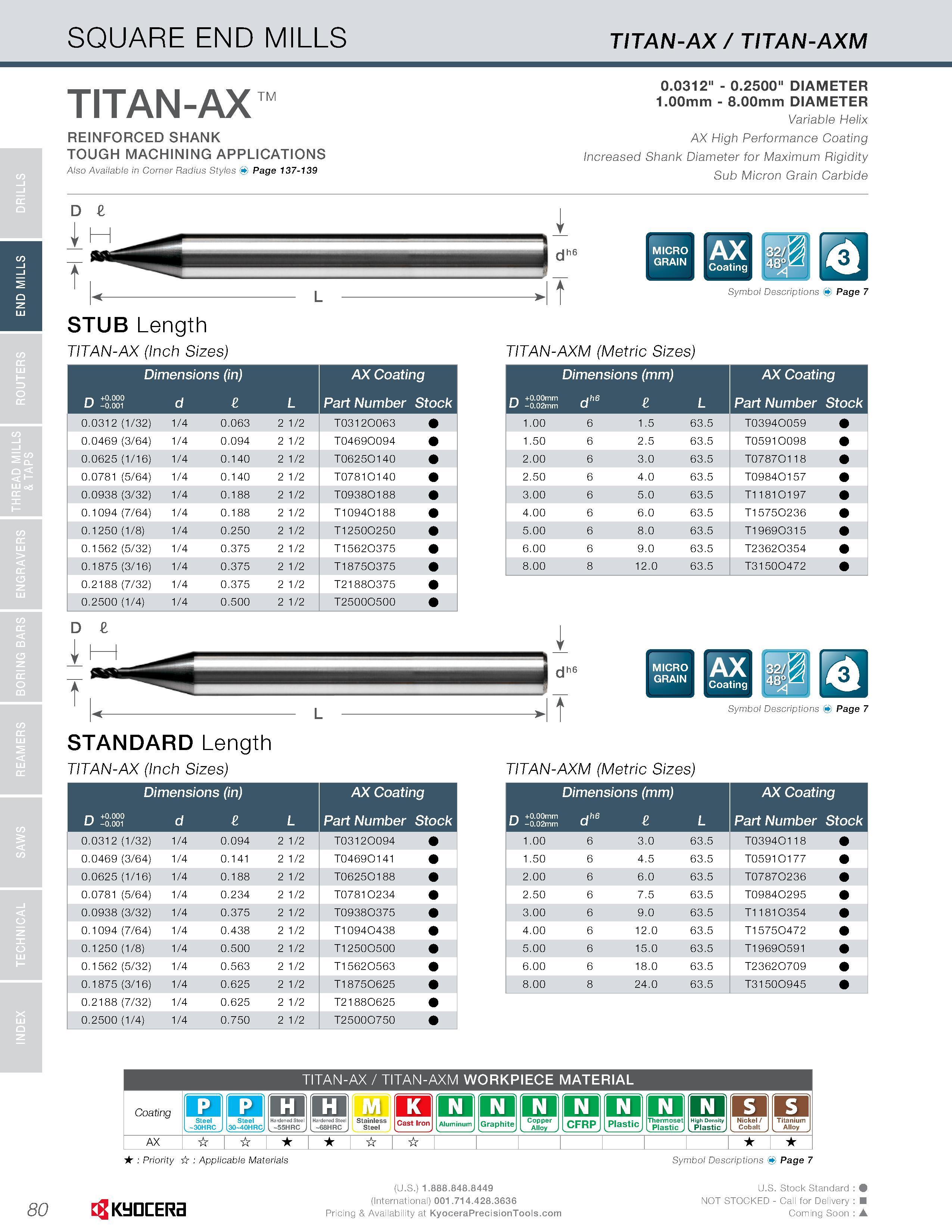

END MILLS SQUARE END MILLS TITAN-AX / TITAN-AXM TITAN-AX TM REINFORCED SHANK TOUGH MACHINING APPLICATIONS Also Available in Corner Radius Styles Page 137-139 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide STUB Length TITAN-AX (Inch Sizes) MICRO I AY GRAIN I TITAN-AXM (Metric Sizes) Dimensions (in) AX Coating r\ +0.000 _i Lf -0.001 u L Part Number Stock Dimensions (mm) AX Coating r +0.00mm i/i 6 Lf -0.02mm U L Part Number Stock 0.0312 (1/32) 1/4 0.063 2 1/2 T03120063 0.0469 (3/64) 1/4 0.094 2 1/2 T04690094 0.0625 (1/16) 1/4 0.140 2 1/2 T06250140 0.0781 (5/64) 1/4 0.140 2 1/2 T07810140 0.0938 (3/32) 1/4 0.188 2 1/2 T09380188 0.1094 (7/64) 1/4 0.188 2 1/2 T10940188 0.1250 (1/8) 1/4 0.250 2 1/2 T12500250 0.1562 (5/32) 1/4 0.375 2 1/2 T15620375 0.1875 (3/16) 1/4 0.375 2 1/2 T18750375 0.2188 (7/32) 1/4 0.375 2 1/2 T21880375 0.2500 (1/4) 1/4 0.500 2 1/2 T25000500 1.00 6 1.5 63.5 T03940059 1.50 6 2.5 63.5 T05910098 2.00 6 3.0 63.5 T07870118 2.50 6 4.0 63.5 T09840157 3.00 6 5.0 63.5 T11 81 01 97 4.00 6 6.0 63.5 T15750236 5.00 6 8.0 63.5 T1 969031 5 6.00 6 9.0 63.5 T23620354 8.00 8 12.0 63.5 T31500472 D i t STANDARD Length TITAN-AX (Inch Sizes) D +0.000 -0.001 Dimensions (in) d AX Coating Part Number Stock I Md"' -It MICRO I AY grain i Symbol Descriptions Page 7 TITAN-AXM (Metric Sizes) Dimensions (mm) AX Coating r +0.00mm _/ 6 Lf -0.02mm U L Part Number Stock 0.0312 (1/32) 1/4 0.094 2 1/2 T03120094 0.0469 (3/64) 1/4 0.141 2 1/2 T04690141 0.0625 (1/16) 1/4 0.188 2 1/2 T06250188 0.0781 (5/64) 1/4 0.234 2 1/2 T07810234 0.0938 (3/32) 1/4 0.375 2 1/2 T09380375 0.1094 (7/64) 1/4 0.438 2 1/2 T10940438 0.1250 (1/8) 1/4 0.500 2 1/2 T12500500 0.1562 (5/32) 1/4 0.563 2 1/2 T15620563 0.1875 (3/16) 1/4 0.625 2 1/2 T18750625 0.2188 (7/32) 1/4 0.625 2 1/2 T21880625 0.2500 (1/4) 1/4 0.750 2 1/2 T25000750 1.00 6 3.0 63.5 T03940118 1.50 6 4.5 63.5 T0591 0177 2.00 6 6.0 63.5 T07870236 2.50 6 7.5 63.5 T09840295 3.00 6 9.0 63.5 T1181 0354 4.00 6 12.0 63.5 T15750472 5.00 6 15.0 63.5 T19690591 6.00 6 18.0 63.5 T23620709 8.00 8 24.0 63.5 T31500945 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating D Steel . -30HRC . Steel 30-40HRC EH) Hardened Steel -55HRC I H I 23 Stainless Steel K m Aluminum Graphite Q) Copper . Alloy J CFRP Q) Plastic Thermoset Plastic . O . Plastic s I S Hardened Steel -68HRC J J Cast IronJ Nickel/ Cobalt J Titanium Alloy J AX Priority Or Applicable Materials Symbol Descriptions Page 7 80 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
