49 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.47

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 47 0049 ENG Lab2u

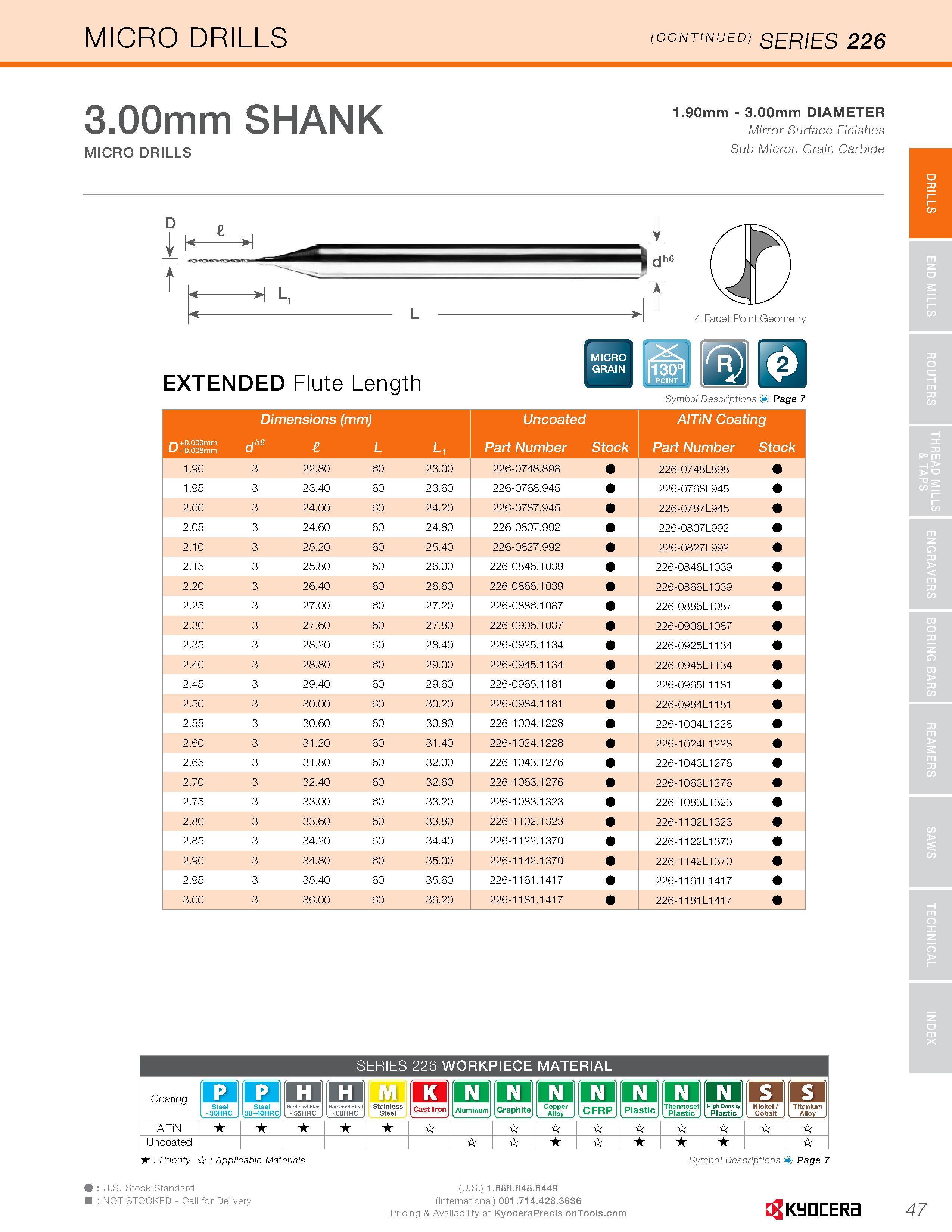

MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 1.90mm - 3.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 1.90 3 22.80 60 23.00 226-0748.898 226-0748L898 1.95 3 23.40 60 23.60 226-0768.945 226-0768L945 2.00 3 24.00 60 24.20 226-0787.945 226-0787L945 2.05 3 24.60 60 24.80 226-0807.992 226-0807L992 2.10 3 25.20 60 25.40 226-0827.992 226-0827L992 2.15 3 25.80 60 26.00 226-0846.1039 226-0846L1039 2.20 3 26.40 60 26.60 226-0866.1039 226-0866L1039 2.25 3 27.00 60 27.20 226-0886.1087 226-0886L1087 2.30 3 27.60 60 27.80 226-0906.1087 226-0906L1087 2.35 3 28.20 60 28.40 226-0925.1134 226-0925L1134 2.40 3 28.80 60 29.00 226-0945.1134 226-0945L1134 2.45 3 29.40 60 29.60 226-0965.1181 226-0965L1181 2.50 3 30.00 60 30.20 226-0984.1181 226-0984L1181 2.55 3 30.60 60 30.80 226-1004.1228 226-1004L1228 2.60 3 31.20 60 31.40 226-1024.1228 226-1024L1228 2.65 3 31.80 60 32.00 226-1043.1276 226-1043L1276 2.70 3 32.40 60 32.60 226-1063.1276 226-1063L1276 2.75 3 33.00 60 33.20 226-1083.1323 226-1083L1323 2.80 3 33.60 60 33.80 226-1102.1323 226-1102L1323 2.85 3 34.20 60 34.40 226-1122.1370 226-1122L1370 2.90 3 34.80 60 35.00 226-1142.1370 226-1142L1370 2.95 3 35.40 60 35.60 226-1161.1417 226-1161L1417 3.00 3 36.00 60 36.20 226-1181.1417 226-1181L1417 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 47 DRILLS
