52 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.50

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 50 0052 ENG Lab2u

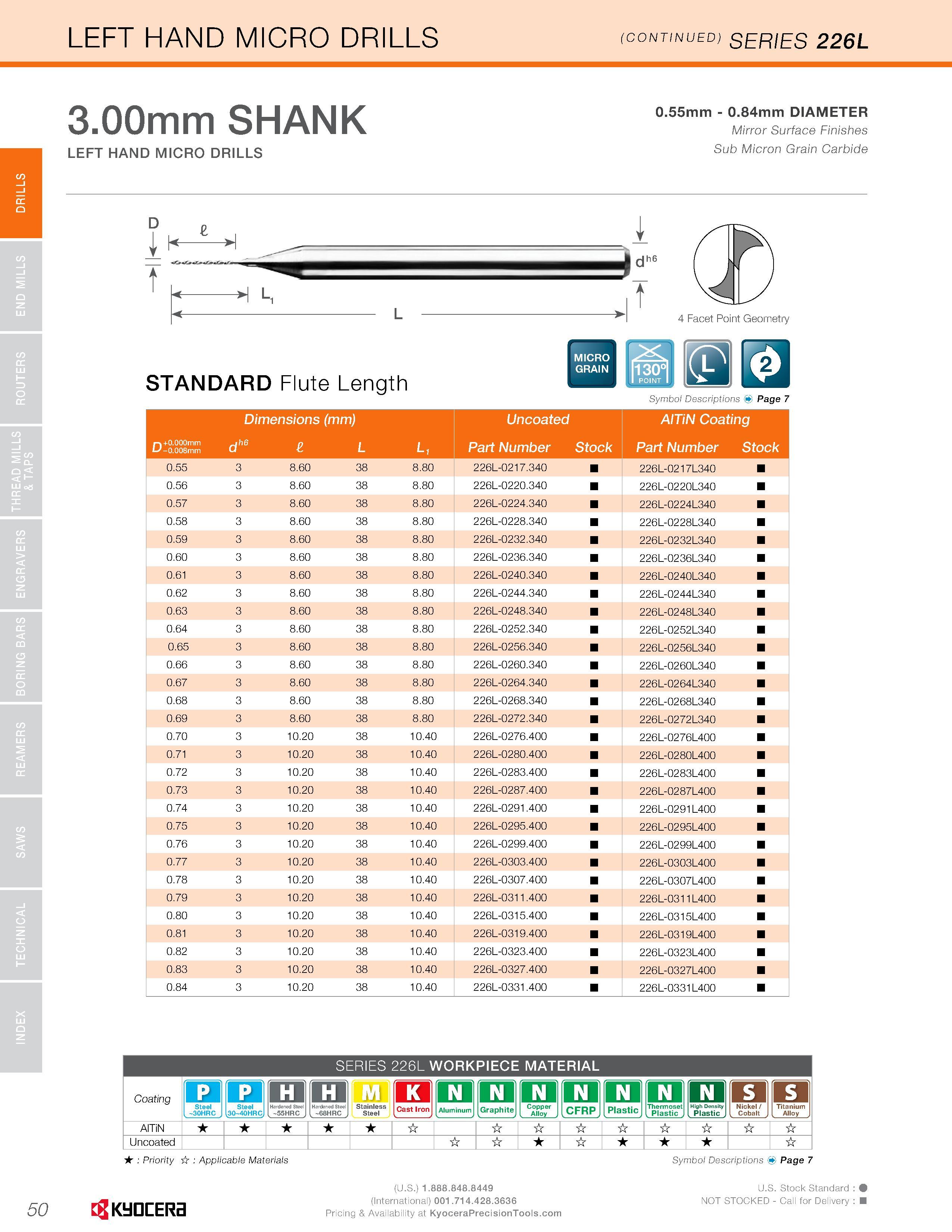

DRILLS LEFT HAND MICRO DRILLS (CONTINUED) SERIES 226L 3.00mm SHANK LEFT HAND MICRO DRILLS 0.55mm - 0.84mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 0.55 3 8.60 38 8.80 226L-0217.340 226L-0217L340 0.56 3 8.60 38 8.80 226L-0220.340 226L-0220L340 0.57 3 8.60 38 8.80 226L-0224.340 226L-0224L340 0.58 3 8.60 38 8.80 226L-0228.340 226L-0228L340 0.59 3 8.60 38 8.80 226L-0232.340 226L-0232L340 0.60 3 8.60 38 8.80 226L-0236.340 226L-0236L340 0.61 3 8.60 38 8.80 226L-0240.340 226L-0240L340 0.62 3 8.60 38 8.80 226L-0244.340 226L-0244L340 0.63 3 8.60 38 8.80 226L-0248.340 226L-0248L340 0.64 3 8.60 38 8.80 226L-0252.340 226L-0252L340 0.65 3 8.60 38 8.80 226L-0256.340 226L-0256L340 0.66 3 8.60 38 8.80 226L-0260.340 226L-0260L340 0.67 3 8.60 38 8.80 226L-0264.340 226L-0264L340 0.68 3 8.60 38 8.80 226L-0268.340 226L-0268L340 0.69 3 8.60 38 8.80 226L-0272.340 226L-0272L340 0.70 3 10.20 38 10.40 226L-0276.400 226L-0276L400 0.71 3 10.20 38 10.40 226L-0280.400 226L-0280L400 0.72 3 10.20 38 10.40 226L-0283.400 226L-0283L400 0.73 3 10.20 38 10.40 226L-0287.400 226L-0287L400 0.74 3 10.20 38 10.40 226L-0291.400 226L-0291L400 0.75 3 10.20 38 10.40 226L-0295.400 226L-0295L400 0.76 3 10.20 38 10.40 226L-0299.400 226L-0299L400 0.77 3 10.20 38 10.40 226L-0303.400 226L-0303L400 0.78 3 10.20 38 10.40 226L-0307.400 226L-0307L400 0.79 3 10.20 38 10.40 226L-0311.400 226L-0311L400 0.80 3 10.20 38 10.40 226L-0315.400 226L-0315L400 0.81 3 10.20 38 10.40 226L-0319.400 226L-0319L400 0.82 3 10.20 38 10.40 226L-0323.400 226L-0323L400 0.83 3 10.20 38 10.40 226L-0327.400 226L-0327L400 0.84 3 10.20 38 10.40 226L-0331.400 226L-0331L400 SERIES 226L WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( 50 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
