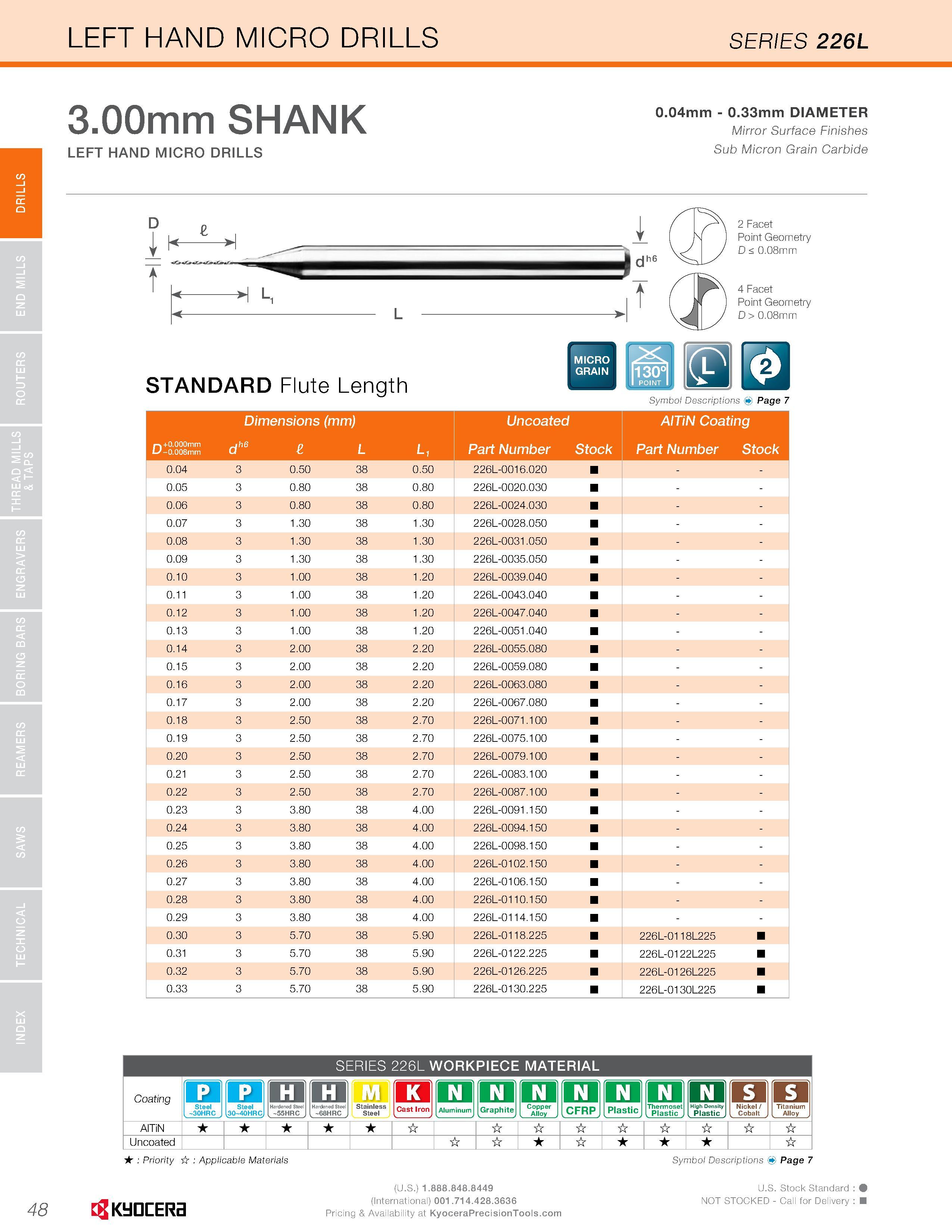

DRILLS LEFT HAND MICRO DRILLS SERIES 226L 3.00mm SHANK LEFT HAND MICRO DRILLS 0.04mm - 0.33mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide 2 Facet Point Geometry D < 0.08mm 4 Facet Point Geometry D > 0.08mm STANDARD Flute Length Symbol Descriptions Page 7 pi+0.000mm Ls-0.008mm Dimensions (mm) dhG L 1-1 Uncoated Part Number Stock AITiN Coating Part Number Stock 0.04 3 0.50 38 0.50 226L-0016.020 - 0.05 3 0.80 38 0.80 226L-0020.030 - 0.06 3 0.80 38 0.80 226L-0024.030 - 0.07 3 1.30 38 1.30 226L-0028.050 - 0.08 3 1.30 38 1.30 226L-0031.050 - 0.09 3 1.30 38 1.30 226L-0035.050 - 0.10 3 1.00 38 1.20 226L-0039.040 - 0.11 3 1.00 38 1.20 226L-0043.040 - 0.12 3 1.00 38 1.20 226L-0047.040 - 0.13 3 1.00 38 1.20 226L-0051.040 - 0.14 3 2.00 38 2.20 226L-0055.080 - 0.15 3 2.00 38 2.20 226L-0059.080 - 0.16 3 2.00 38 2.20 226L-0063.080 - 0.17 3 2.00 38 2.20 226L-0067.080 - 0.18 3 2.50 38 2.70 226L-0071.100 - 0.19 3 2.50 38 2.70 226L-0075.100 - 0.20 3 2.50 38 2.70 226L-0079.100 - 0.21 3 2.50 38 2.70 226L-0083.100 - 0.22 3 2.50 38 2.70 226L-0087.100 - 0.23 3 3.80 38 4.00 226L-0091.150 - 0.24 3 3.80 38 4.00 226L-0094.150 - 0.25 3 3.80 38 4.00 226L-0098.150 - 0.26 3 3.80 38 4.00 226L-0102.150 - 0.27 3 3.80 38 4.00 226L-0106.150 - 0.28 3 3.80 38 4.00 226L-0110.150 - 0.29 3 3.80 38 4.00 226L-0114.150 - 0.30 3 5.70 38 5.90 226L-0118.225 226L-0118L225 0.31 3 5.70 38 5.90 226L-0122.225 226L-0122L225 0.32 3 5.70 38 5.90 226L-0126.225 226L-0126L225 0.33 3 5.70 38 5.90 226L-0130.225 226L-0130L225 SERIES 226L WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel Kl o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic SI I s I Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( 48 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
