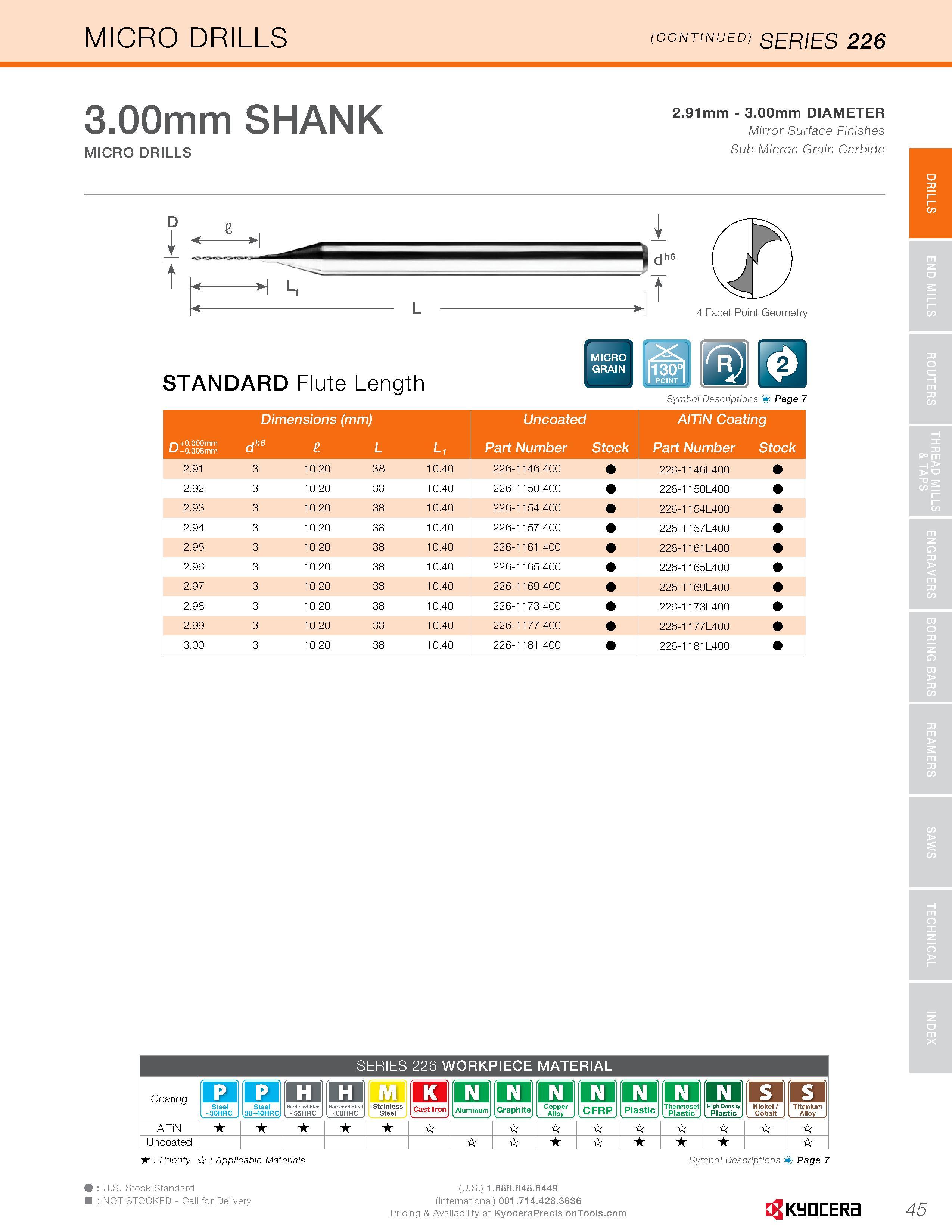

MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 2.91mm - 3.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 2.91 3 10.20 38 10.40 226-1146.400 226-1146L400 2.92 3 10.20 38 10.40 226-1150.400 226-1150L400 2.93 3 10.20 38 10.40 226-1154.400 226-1154L400 2.94 3 10.20 38 10.40 226-1157.400 226-1157L400 2.95 3 10.20 38 10.40 226-1161.400 226-1161L400 2.96 3 10.20 38 10.40 226-1165.400 226-1165L400 2.97 3 10.20 38 10.40 226-1169.400 226-1169L400 2.98 3 10.20 38 10.40 226-1173.400 226-1173L400 2.99 3 10.20 38 10.40 226-1177.400 226-1177L400 3.00 3 10.20 38 10.40 226-1181.400 226-1181L400 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 45 DRILLS
