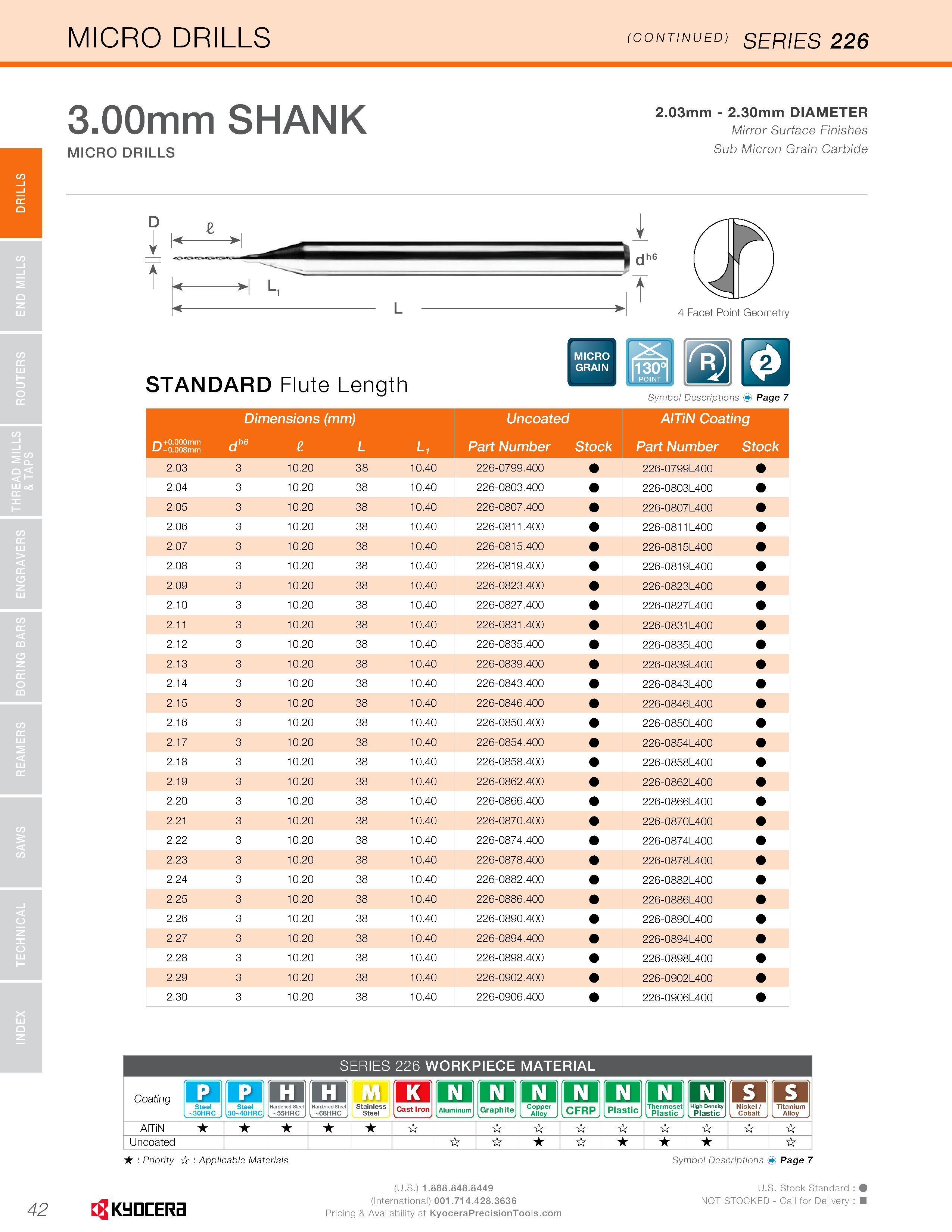

DRILLS MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 2.03mm - 2.30mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 2.03 3 10.20 38 10.40 226-0799.400 226-0799L400 2.04 3 10.20 38 10.40 226-0803.400 226-0803L400 2.05 3 10.20 38 10.40 226-0807.400 226-0807L400 2.06 3 10.20 38 10.40 226-0811.400 226-0811L400 2.07 3 10.20 38 10.40 226-0815.400 226-0815L400 2.08 3 10.20 38 10.40 226-0819.400 226-0819L400 2.09 3 10.20 38 10.40 226-0823.400 226-0823L400 2.10 3 10.20 38 10.40 226-0827.400 226-0827L400 2.11 3 10.20 38 10.40 226-0831.400 226-0831L400 2.12 3 10.20 38 10.40 226-0835.400 226-0835L400 2.13 3 10.20 38 10.40 226-0839.400 226-0839L400 2.14 3 10.20 38 10.40 226-0843.400 226-0843L400 2.15 3 10.20 38 10.40 226-0846.400 226-0846L400 2.16 3 10.20 38 10.40 226-0850.400 226-0850L400 2.17 3 10.20 38 10.40 226-0854.400 226-0854L400 2.18 3 10.20 38 10.40 226-0858.400 226-0858L400 2.19 3 10.20 38 10.40 226-0862.400 226-0862L400 2.20 3 10.20 38 10.40 226-0866.400 226-0866L400 2.21 3 10.20 38 10.40 226-0870.400 226-0870L400 2.22 3 10.20 38 10.40 226-0874.400 226-0874L400 2.23 3 10.20 38 10.40 226-0878.400 226-0878L400 2.24 3 10.20 38 10.40 226-0882.400 226-0882L400 2.25 3 10.20 38 10.40 226-0886.400 226-0886L400 2.26 3 10.20 38 10.40 226-0890.400 226-0890L400 2.27 3 10.20 38 10.40 226-0894.400 226-0894L400 2.28 3 10.20 38 10.40 226-0898.400 226-0898L400 2.29 3 10.20 38 10.40 226-0902.400 226-0902L400 2.30 3 10.20 38 10.40 226-0906.400 226-0906L400 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 42 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
