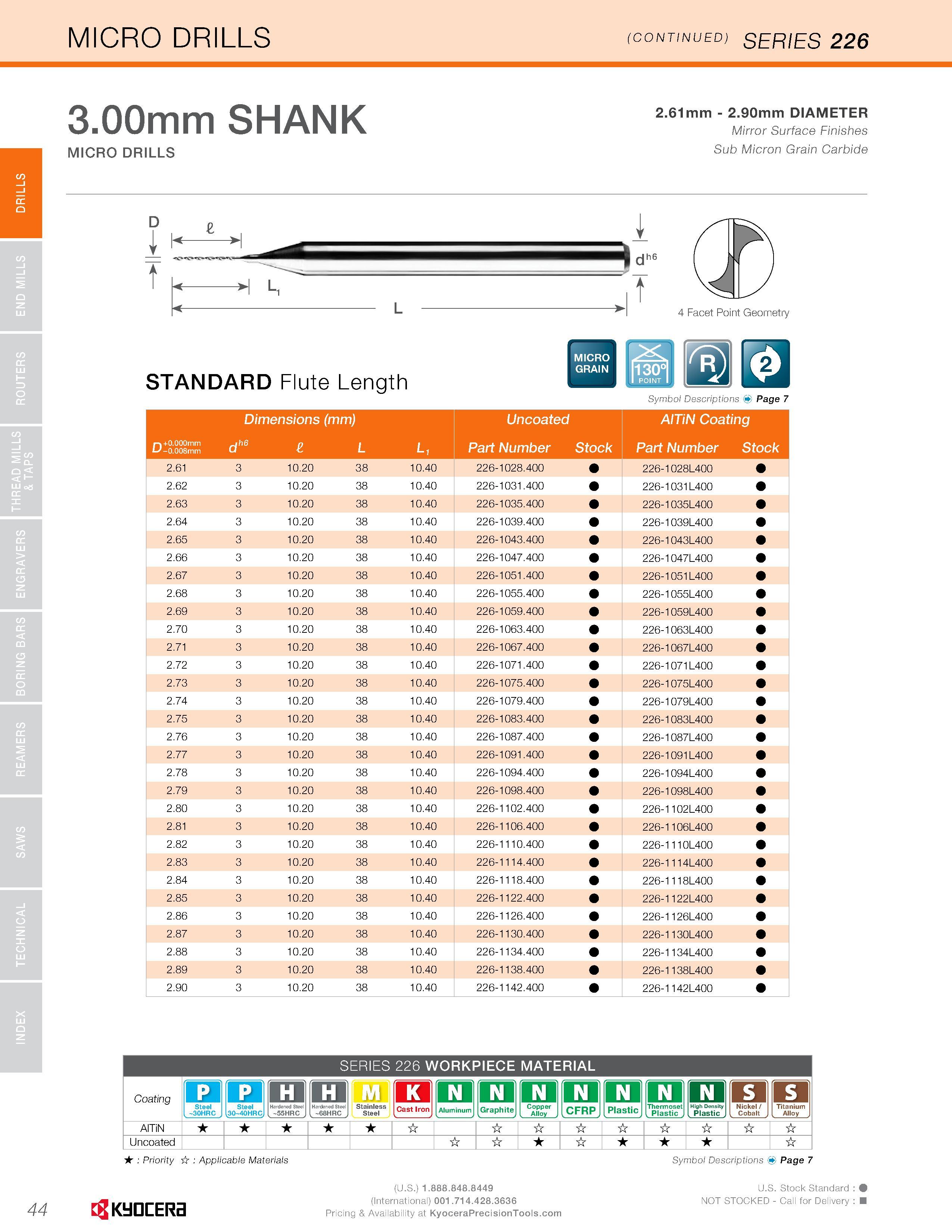

46 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.44

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 44 0046 ENG Lab2u

DRILLS MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 2.61mm - 2.90mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 i-k+0.000mm L'-0.008mm Dimensions (mm) dhG L Li Uncoated Part Number Stock AITiN Coating Part Number Stock 2.61 3 10.20 38 10.40 226-1028.400 226-1028L400 2.62 3 10.20 38 10.40 226-1031.400 226-1031L400 2.63 3 10.20 38 10.40 226-1035.400 226-1035L400 2.64 3 10.20 38 10.40 226-1039.400 226-1039L400 2.65 3 10.20 38 10.40 226-1043.400 226-1043L400 2.66 3 10.20 38 10.40 226-1047.400 226-1047L400 2.67 3 10.20 38 10.40 226-1051.400 226-1051L400 2.68 3 10.20 38 10.40 226-1055.400 226-1055L400 2.69 3 10.20 38 10.40 226-1059.400 226-1059L400 2.70 3 10.20 38 10.40 226-1063.400 226-1063L400 2.71 3 10.20 38 10.40 226-1067.400 226-1067L400 2.72 3 10.20 38 10.40 226-1071.400 226-1071L400 2.73 3 10.20 38 10.40 226-1075.400 226-1075L400 2.74 3 10.20 38 10.40 226-1079.400 226-1079L400 2.75 3 10.20 38 10.40 226-1083.400 226-1083L400 2.76 3 10.20 38 10.40 226-1087.400 226-1087L400 2.77 3 10.20 38 10.40 226-1091.400 226-1091L400 2.78 3 10.20 38 10.40 226-1094.400 226-1094L400 2.79 3 10.20 38 10.40 226-1098.400 226-1098L400 2.80 3 10.20 38 10.40 226-1102.400 226-1102L400 2.81 3 10.20 38 10.40 226-1106.400 226-1106L400 2.82 3 10.20 38 10.40 226-1110.400 226-1110L400 2.83 3 10.20 38 10.40 226-1114.400 226-1114L400 2.84 3 10.20 38 10.40 226-1118.400 226-1118L400 2.85 3 10.20 38 10.40 226-1122.400 226-1122L400 2.86 3 10.20 38 10.40 226-1126.400 226-1126L400 2.87 3 10.20 38 10.40 226-1130.400 226-1130L400 2.88 3 10.20 38 10.40 226-1134.400 226-1134L400 2.89 3 10.20 38 10.40 226-1138.400 226-1138L400 2.90 3 10.20 38 10.40 226-1142.400 226-1142L400 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel Kl o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic Q Thermoset L Plastic o Plastic SI s Cast IronJ Nickel/ Cobalt J Titanium Alloy J AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( 44 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
